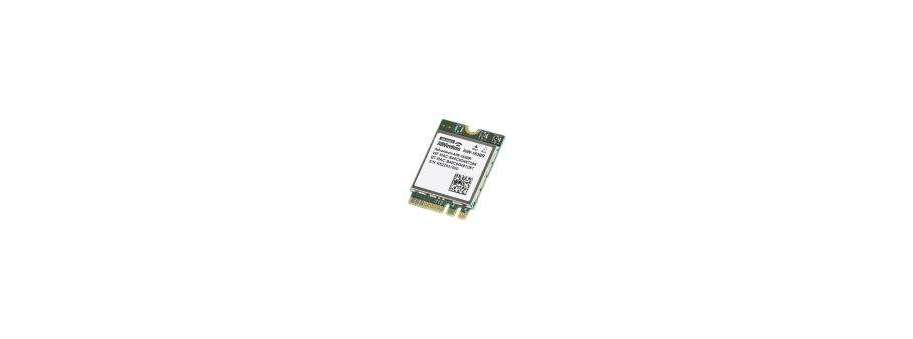

WIFI/Bluetooth module Advantech AIW-163BR

IEEE 802.11ax/ac/a/b/g/n +Bluetooth 5.2 M.2 2230 (A-E Key) Card Advantech AIW-163BR

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
AIW-163BR	802.11ax+BT5.2, Realtek 8852BE, PCIe-USB, M.2	2 255,8

• IEEE 802.11ax/a/b/g/n + Bluetooth 5.2
• Supports 2.4 GHz: 2.412 ~ 2.484 GHz , 5 GHz: 4.915 ~5.925GHz
• MU-MIMO, 2Tx/2Rx
• Operating temperature: 0~ 70°C (32~158°F)

Additional information

Main Chipset	RTL 8852BE
Tx/Rx	2Tx/ 2Rx (2 IPEX MHF4 connector Receptacle)
Standard Conformance	IEEE 802.11ax/ac/a/b/g/n + Bluetooth 5.2
Form Factor	M.2 2230, A-E Key card
Interface	WIFI: PCI-E, Bluetooth: USB
Operation Voltage	DC 3.3V
Security	WAPI WEP 64-bit and 128-bit encryption with H/W TKIP processing WPA/WPA2/WPA3 (Wi-Fi Protected Access) AES-CCMP hardware implementation as part of 802.11i security standard
O.S Supported	Windows 10
Temperature Ranges	Operating temperature: 0~ 70°C (32~158°F)
Dimensions (L x W x H)	22 x 30 x 2.2 mm
