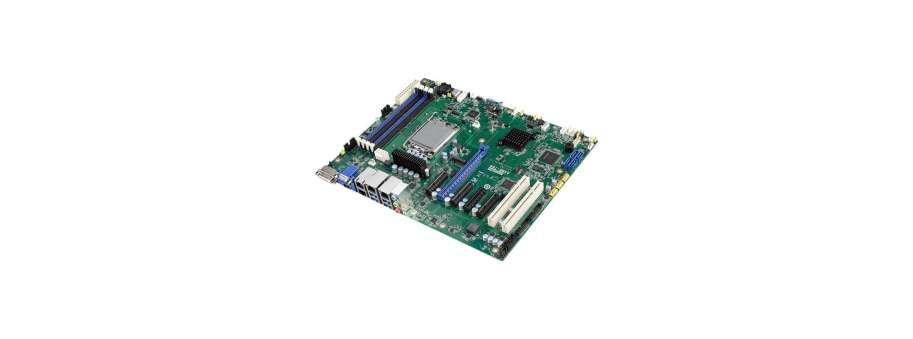

ATX Server Board Advantech ASMB-788

LGA 1700 Intel® 12th Generation Core™ ATX Server Board with 4 x DDR5, 5 x PCIe (1 x Gen5, 3 x Gen4, 1x Gen3), 7 x USB 3.2, 4 x SATA3, Quad/Dual LANs, and IPMI Advantech ASMB-788

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
ASMB-788G2-00A1	Промислова серверна материнська плата Advantech LGA 1700 ATX Server Board W680 GbEx2	37 763,2
ASMB-788G4-00A1	Промислова серверна материнська плата Advantech ASMB-788G4 LGA 1700 ATX Server Board W680 GbEx4	41 968,2

• LGA 1700 Intel® 12th Gen. Core™ i9/i7/i5/i3 processors with W680 chipset
• DDR5 ECC/Non-ECC 4400/4000/3600 MHz UDIMM up to 128 GB
• One PCIe x16 (Gen 5) and four PCIe x4 (3 x Gen4 & 1 x Gen3) slots
• Triple displays - DVI-D, VGA, and HDMI 2.0 ports
• Four SATA 3 ports and seven USB 3.2 ports
• One M.2 2280 (PCIe x4)
• Rackmount optimized placement with positive air flow design
• 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range

Additional information

Form Factor	ATX form factor
Processor System
Socket	Intel® LGA 1700
CPU type	Intel® 12th Gen. Core™ i9/i7/i5/i3 series processors (TDP up to 125W)
Core Logic
Chipset	Intel W680 chipset
Memory
Total slots	4 x (Dual Channel)
Max. capacity	128 GB
Memory type	DDR5 ECC/Non-ECC 4400/4000/3600 MHz UDIMM (288-pin)
Memory size	8 GB, 16 GB, 32GB
Expansion Slots
Total PCI/PCIe slots	7
Slot location 1	PCI slot
Slot location 2	PCI slot
Slot location 3	PCIe x4 slot (Gen4 x4 link)
Slot location 4	PCIe x4 slot (Gen3 x4 link)
Slot location 5	PCIe x4 slot (Gen4 x4 link)
Slot location 6	PCIe x16 slot (Gen5 x16 link)
Slot location 7	PCIe x4 slot (Gen4 x4 link)
Graphics
Controller	Intel® HD Graphics
VRAM	1 GB maximum shared memory with 2 GB and above system memory installed
Storage
SATA controller	Intel® W680: 4 SATA 3 6 Gb/s ports with Intel Rapid Storage Technology support (for Windows only) (Supports software RAID 0, 1, 10 & 5)
SAS controller	-
Networking
Interface	10/100/1000 Mbps
Controller	GbE LAN1: Intel® I219; GbE LAN 2~4: Intel I210-AT
Connector	RJ-45 x 2 for G2 version; RJ-45 x 4 for G4 version
Onboard I/O Connector
Printer Port connector	-
PSU connector	24-pin SSI power connector + 8-pin SSI 12V power connector
USB connector	1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 (6 ports), 1 x USB 3.2 Gen 1 Type-A
M.2 connector	1 x M.2 2280 (PCIe)
Fan header	5 x (4-pin)
SMBus	1
Chassis intruder	1
Front LAN LED	2
Serial port header	2 x RS-232 dual-port (4 ports), 1 x RS-232 single-port
Audio connector	1 x (ALC 888S)
PS/2 KB/Mouse	-

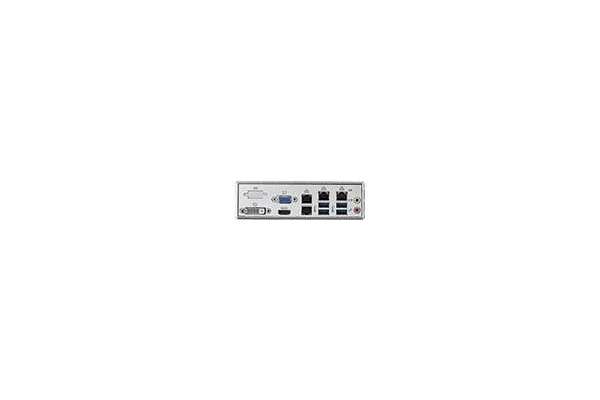

Rear I/O Connector
External serial port	1 (via COM cable in the package)
External USB port	4 x (USB 3.2 Gen 2)
VGA port	1 x (Resolution up to 1920 x 1200 @ 60 Hz)
DVI port	1 x (Resolution up to 1920 x 1200 @ 60 Hz)
HDMI port	1 x (Resolution up to 4096 x 2160 @ 60 Hz)
RJ-45	2 x for G2 version; 4 for G4 version
Audio connector	2 x (Mic-in, Line-out)
PS/2 KB/Mouse	-
Watchdog Timer
Output	System reset
Interval	Programmable 1 ~ 255 sec
Power Requirement
Power On (Core i5-12500 3.0GHz DDR5 4800 16G*4)	3.3 V 5 V 12 V 12V_8P 5 VSB 2.05A 1.69A 0.36A 13A 0.10A
Environment
Temperature	0 ~ 60 °C, depends on CPU speed and cooler solution (Operating) -40 ~ 85 °C (Non-operating)
Humidity	40 °C @ 95% RH Non-condensing (Operating) 60 °C @ 95% RH Non-condensing (Non-operating)
Physical Characteristics/ Dimensions	304.8 x 244 mm (12 x 9.6 in)
