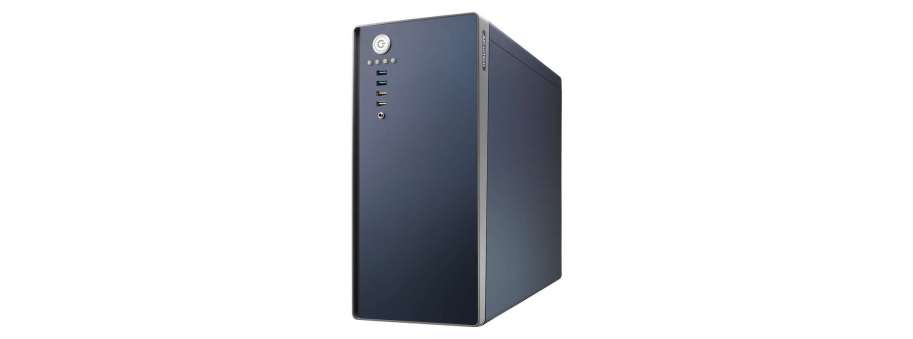

4U Edge AI Workstation with Intel® Rapter Lake S Platform and NVIDIA Certified with RTX 6000 Ada Advantech AIR-510

  • 4U AI Workstation supports 14th gen Intel Core processors
  • Able to feature 1x 300W graphic card and 2x PCIe add-on cards
  • Up to 8 Shock Resistant 2.5" drive bays
  • To accommodate ATX 3.0 850W PSU for different applications
  • NVIDIA Certified workstation with RTX 6000 Ada

Additional information

Model AIR-510-000A1
Dimensions (W x H x D) 380 x 176 x 454.1 mm

System Thermal Design

CPU Cooler CPU cooler for 65W TDP 1970005349T001
System Fan 1 Fan Axial 91x91x25

Environmental Conditions

Operating Temperature 0 ~ 40°C (w/o Graphic card)
Non-operating Temperature -20 ~ 60°C
Humidity 10 ~ 95% @ 40° C, non-condensing
Vibration (5 ~5 00Hz) 3Grms

CPU

  • Intel 14th Gen. 65W Embedded series;
  • Intel 13th Gen. 65W Embedded series;
  • Intel 12th Gen. 65W Embedded series;
Chipset Q670E
Storage 8 x 2.5" HDD/SSD

Front IO

Power switch 1
LED
  • 1 Power-On LED
  • 1 HDD LED
Power remote Jack 1 2.5Φ Jack
USB Type-A 2 USB3.2 Gen1

Rear IO

Rear IO
  • 2 DP ports 4096 x 2304 @ 60 Hz
  • 1 HDMI
USB
  • 5 USB Gen2 x1
  • 4 USB Gen1
  • 1 USB Gen2 x2 Type-C
LAN
  • 2 RJ45 GbE
  • LAN1: Intel I219LM
  • LAN2: Intel I226V
Audio 1 Mic-in, 1 Line-out

Certification

EMC / Safety / Certifications CE / FCC / CCC / CB / UL

Power Requirements

Power Supply Unit 850W ATX 3.0 built-in
Weight 15.5 Kg
Mounting bracket 4U Rack Mount (Optional)
PCIE Expansions
  • 1 PCIE x16
  • 2 PCIE x4
