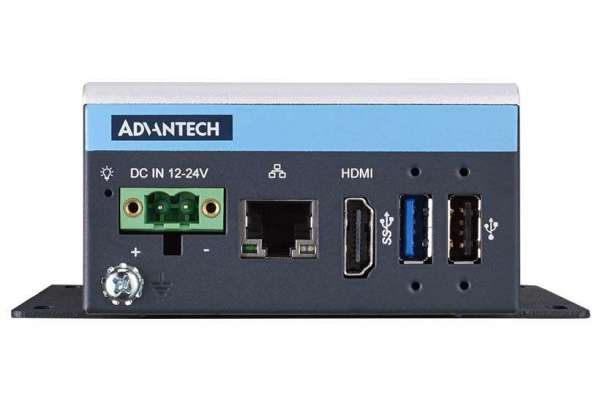

HDMI
Input 12V DC
Input 24V DC
LAN
Passive Cooling

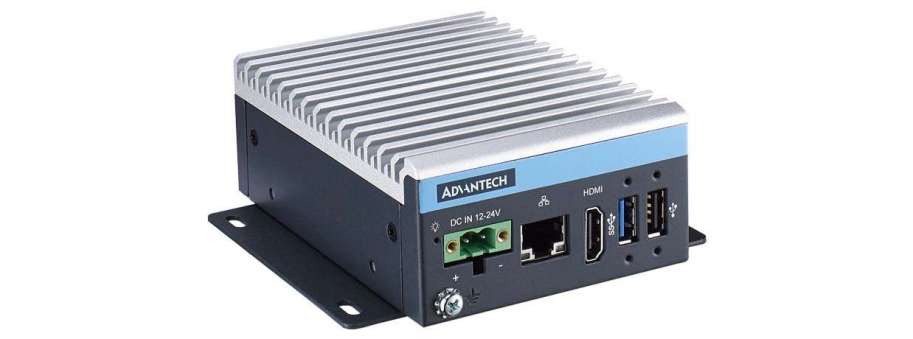

AI System (Lite) Based on NVIDIA® Jetson Xavier™NX Advantech MIC-710AILX
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-710AILX-00B1 | NVIDIA Jetson Xavier NX Lite AI Inference System | 78 882,2 | |
| MIC-710AILX-00B2 | NVIDIA Jetson Xavier NX Lite AI System_NO SD | 78 882,2 |
- Fanless and ultra-compact design
- Embedded with NVIDIA® Jetson Xavier™ NX up to 21 TOPS
- Supports 1 x GbE, 1 x USB 3.2 Gen 1 (5 Gbit/s)
- Supports 1 x mPCIe, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
Additional information
Processor |
|
| CPU | 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU (6MB L2 + 4MB L3) |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| Memory | 8GB LPDDR4 |
| Flash | 16G of eMMC |
I/O |
|
| Ethernet | 1 x 10/100/1000 Mbps |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB |
|
| OTG USB | 1 x Micro USB |
Expansion |
|
| Mini PCIe | 1 x mPCIe (Signal: PCIe x1 + USB 2.0) |
| SIM | 1 x Nano SIM slots |
Storage |
|
| M.2 | 1 x M.2 2280 (M-Key, NVMe, Signal : PCIe x4) |

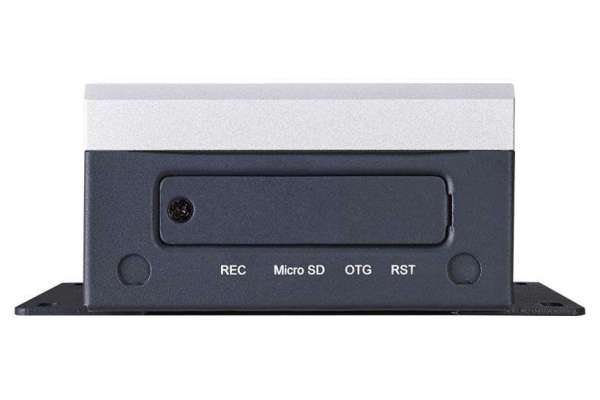

| SD Card | 1 x Micro SD |
Power |
|
| Mode | Therminal block, 2-pin, AT |
| Voltage | 12 ~ 24 VDC |
Environment |
|
| Operating Temperature* | -10 ~ 60 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11ms |
Mechanical |
|
| Dimensions (W x D x H) | 85 x 118 x 45 mm (3.3" x 4.6" x 1.8") |
| Weight | 1.2 kg (2.65 lb) |
| Installation | Desktop / Wall mount / DIN-rail |
BSP |
|
| Jetpack | 4.6 |
| Certifications | CB/UL/CE/FCC/BSMI/CCC (No RED certification) |
