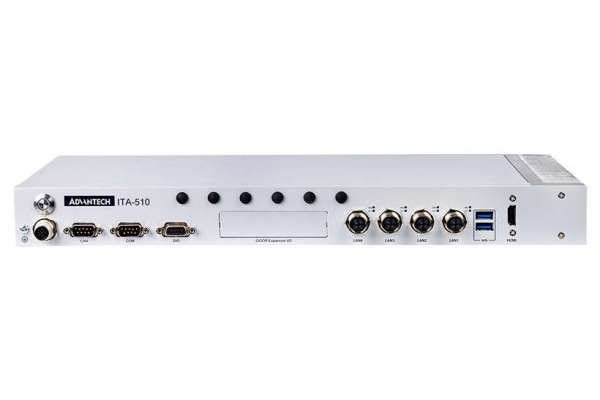

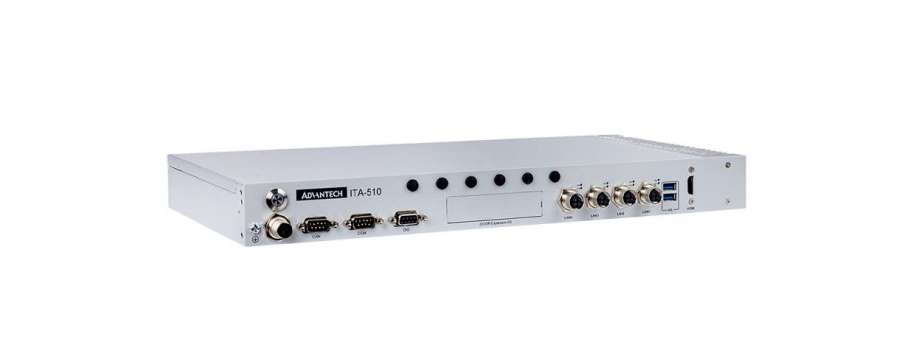

AI system Advantech ITA-510NX

AI Inference System Powered by NVIDIA® Jetson Orin™ NX for Railway Applications Advantech ITA-510NX

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
ITA-510NX-SOA1	ITA-510 NV Jetson Orin NX_16G AI computing 110V	202 048,0

ITA-510NX will be among the first NVIDIA® Jetson Orin™ NX-based systems compliant with the railway industry for use in trackside or rolling-stock applications, such as automatic train operations, object detection, moving obstacle detection, intelligent diagnostics, and predictive maintenance.

• Fanless system designed for AI inference
• Embedded NVIDIA® Jetson Orin™ NX platform
• Compliant with EN 50155 OT1 and EN 50121-3-2 EMC standards
• Rugged M12 connectors suitable for harsh, industrial environments
• 1 x Mini PCIe, 1 x M.2 (E-key),1 x M.2 (M-key) and 1 x M.2 (B-key) for easy expansion
• Bundled with Linux Ubuntu 20.04 operating system

Additional information

System
GPU	NVIDIA® Ampere GPU 1024 NVIDIA CUDA cores and 32 Tensor cores Up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs
CPU	NVIDIA® Jetson Orin™ NX 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
DLA	20 TOPS each (Sparse INT8)
Memory
Max. Capacity	16 GB 128-bit LPDDR5 102.4 GB/s
I/O - External
Display	1 x HDMI
CAN	1 x CAN, DB9
USB	2 x USB 3.0 type A
Serial Port	1 x RS-232/RS-422/RS-485, DB9
DI/O	1 x 8bit (4in/4out), DB9
I/O - Internal (Pin Header)
CAN	1 x CAN, DB9 (optional)
OTG USB	1 x Micro USB
Serial Port	1 x RS-232/RS-422/RS-485, DB9 (optional)
Ethernet
Controller	Intel® I210-IT
Interface	10/100/1000 Mbps
Connector	4 x M12 X-coded
Expansion
Mini PCIe	1 x Mini PCIe slot
M.2	1 x M.2 (B-key) 3052 for 5G/LTE 1 x M.2 (E-key) 2230 for Wi-Fi/Bluetooth 1 x M.2 (M-key) 2280 for storage
SIM	1 x Nano SIM card slot
Antenna	6
Power
Input Range	24/110VDC
Connector	1 x M12 (S-coded)
Environmental
Operating Temperature	-25 ~ 55 °C/-13 ~ 131 °F
Storage Temperature	-40 ~ 85 °C/-40 ~ 185 °F
Humidity	5% ~ 95% @ 40 °C/104 °F (non-condensing)
Mechanical
Dimensions (W x H x D)	482.6 x 44 x 195.8 mm
Mount Options	1U Rackmount
Certification
EMC	CE, FCC, BSMI, CCC
Satety	CE, FCC, BSMI, CCC
EN50155 Compliance
Ambient Temperature	-25 ~ 55 °C/-13 ~ 131 °F (EN 50155 OT1)
Shock and Vibration	IEC 61373 body mount class B
Voltage Interruptions	Class S2
Supply Change Over	Class C1
EMC	EN 50121-3-2
