HDMI Input 12V DC Input Wide range LAN Passive Cooling Standard T range Wallmount

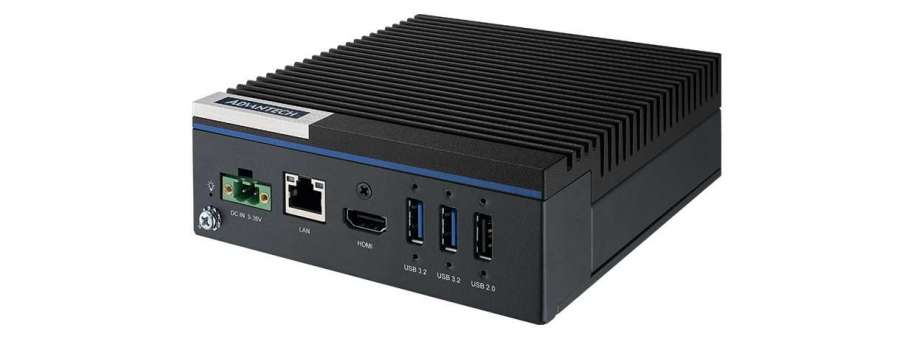

AI Inference System Based on NVIDIA® Jetson Orin™ Nano Advantech MIC-711-ON

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-711-ON3A1 Система штучного інтелекту Advantech MIC-711 на базі NVIDIA Jetson Orin Nano 8G Lite AI System  65 511,9
MIC-711-ON2A1 Система штучного інтелекту Advantech MIC-711 на базі NVIDIA Jetson Orin Nano 4G Lite AI System  50 818,8
  • Fanless and ultra-compact design
  • Embedded with NVIDIA® Jetson Orin™ Nano up to 40 TOPS
  • Supports 1 x GbE, 2 x USB 3.2 Gen 1 (5 Gbit/s)
  • Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
  • Supports Allxon 24/7 remote monitoring and OTA deployment

Additional information

Processor System

CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 8G: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
  • 4G: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
Memory
  • 8GB: 8GB LPDDR5
  • 4GB: 4GB LPDDR5
Flash -

I/O

Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
  • External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
  • Internal: 1 x USB 2.0 (by pin header)
OTG USB 1 x Micro USB

Expansion

Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
M.2 1 x M.2 3052 (B-Key, Signal: USB)
SIM 2 x Nano SIM slots

Storage

M.2 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card 1 x Micro SD

Power

Mode Terminal block, 2-pin, AT
Input Voltage 9 ~ 36 VDC

Environment

Operating Temperature* -10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 10G / 11ms

Mechanical

Dimensions (W x D x H) 130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
Weight 1.2 kg (2.65 lb)
Installation Desktop / Wall mount

BSP

Jetpack Above 5.1

Certifications

CB/UL/CE/FCC/BSMI/CCC (No RED certification)
