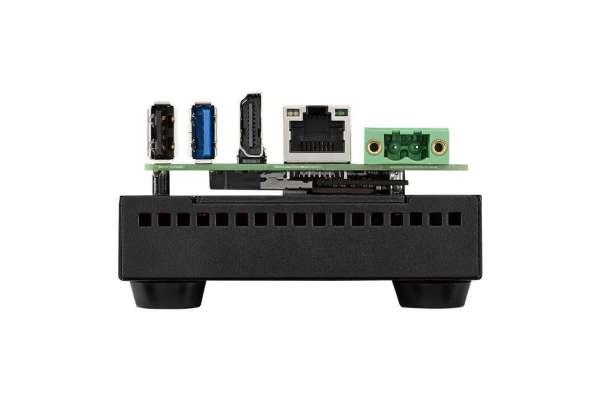

HDMI Input 12V DC LAN RS232

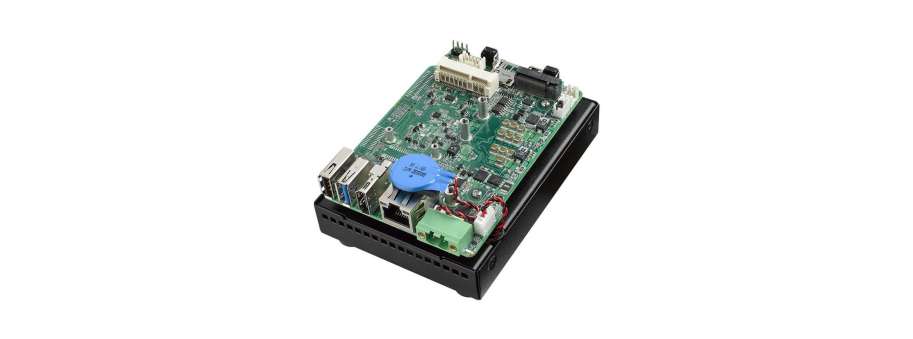

AI Developer Kit Based on NVIDIA® Jetson Xavier™ NX Advantech MIC-710AILX-DVA

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-710AILX-DVA2 MIC-710AILX_Developer kit_NO SD  77 560,7
  • Open-frame carrier design with thermal solution
  • Embedded with NVIDIA® Jetson Xavier™ NX up to 21 TOPS
  • Supports 1 x GbE, 1 x USB 3.2 Gen 1 (5 Gbit/s)
  • Supports 1 x mPCIe, 1 x M.2 2280
  • Supports Allxon 24/7 remote monitoring and OTA deployment

Additional information

Processor

CPU 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU (6MB L2 + 4MB L3)
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Memory 16GB LPDDR4
Flash 16G of eMMC

I/O

Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
  • External: 1 x USB 2.0, 1 x USB 3.2 Gen 1
  • Internal: 1 x USB 2.0 (by pin header)
Serial Port RS-232 (by pin header)
OTG USB 1 x Micro USB

Expansion

SIM Card 1 x Nano SIM
Mini PCIe 1 x mPCIe (Signal: PCIe x1 + USB 2.0)

Storage

M.2 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card 1 x Micro SD

Fan

Dimension 60 x 60 x 13 mm (2.36" x 2.36" x 0.51")
RPM 5400 RPM

Power

Mode Therminal block, 2-pin, AT
Voltage 12 VDC

Mechanical

Dimensions (W x D x H) 116 x 85 x 54.7 mm (4.5" x 3.35" x 2.16")
Weight 0.35 kg (0.77 lb)

BSP

Jetpack 4.6.1
