Affordable Fanless Embedded Computer on Intel® Atom™ or Celeron® Processor Cincoze DA-1000

Price and avalability

Partnumber Description Price VAT incl Avalability
DA-1000-R10 Компактний комп'ютер Cincoze DA-1000-R10, Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer  30 610,9
DA-1000-E45-R10 Компактний комп'ютер Cincoze DA-1000-E45-R10, Intel® Atom™ Processor E3845 Affordable Fanless Embedded Computer  32 372,1
DA-1000-J19-R10 Компактний комп'ютер Cincoze DA-1000-J19-R10, Intel® Celeron® Processor J1900 Affordable Fanless Embedded Computer  30 443,2

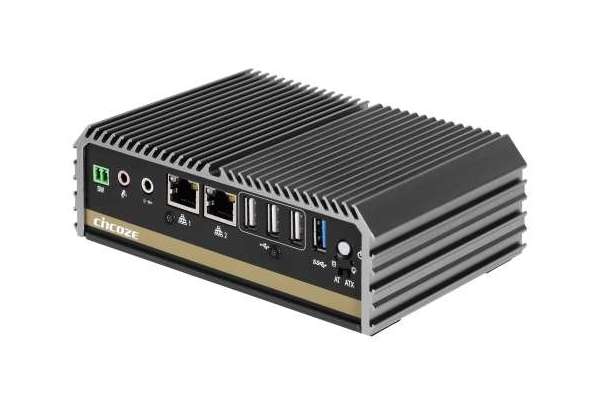

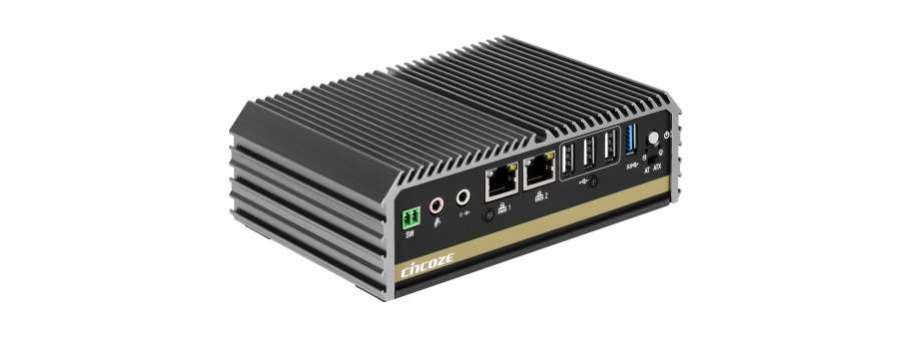

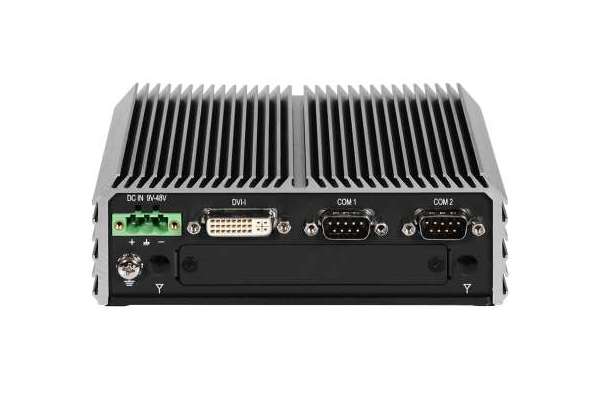

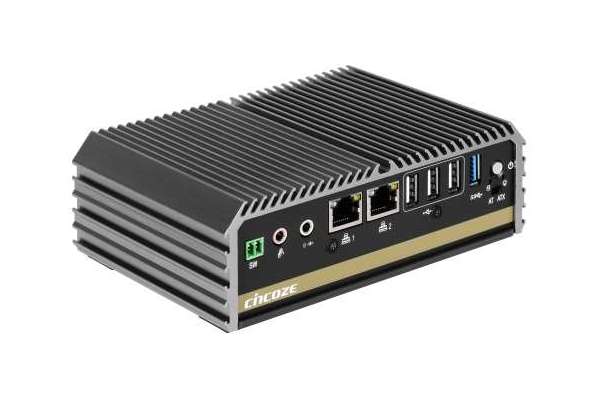

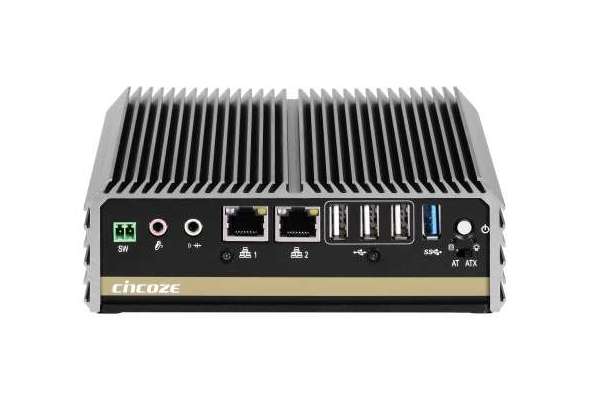

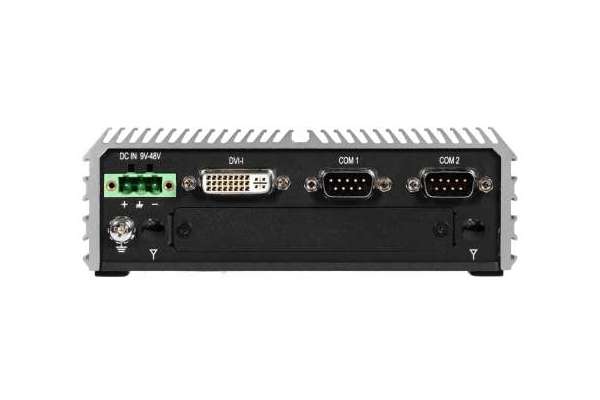

DA-1000 Series is an ultra-compact size fanless embedded computer powered by Intel® Atom™ or Celeron® Processors; it integrated HD graphics processor supporting dual display. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. DA-1000 Series manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gbe LAN ports, four USB ports and one set of Mic-in and Line-out. DA-1000 Series supports Combined Multiple I/O (CMI) interface and modules which are especially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction, wide operating temperature and high tolerance for shock and vibration enables DA-1000 Series to deploy in a harsh environment and for critical applications, and it is totally maintenance-free

  • Onboard Intel® Atom™ or Celeron® Processors
  • One DDR3L SO-DIMM Socket, Support Up to 8G
  • Support Dual Display, Output from One DVI-I Port
  • Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming, PXE
  • Ultra Compact Size (150x105x56.02mm)
  • Support -25˚C~70˚C Extended Operating Temperature
  • Support 9~48VDC Input, Support AT/ATX Power Mode
  • CMI (Combined Multiple I/O) Interface for I/O Module Expandability
  • Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)

Additional information

Processor

  • Intel® Atom™ Processor E3826 (1M Cache, Up to 1.46 GHz SoC, 7W TDP)
  • Intel® Atom™ Processor E3845 (2M Cache, Up to 1.91 GHz SoC, 10W TDP)
  • Intel® Celeron® Processor J1900 (2M Cache, Up to 2.42 GHz SoC, 10W TDP)
BIOS AMI 64 Mbit SPI BIOS
Memory 1x DDR3L 204-pin SO-DIMM, support up to 8GB (1066/1333MHz, un-buered and non-ECC type)
Graphics
  • Integrated Intel® HD Graphics
  • Two Independent Display
Audio
  • Realtek® ALC888S
  • High Definition Audio

I/O Interface

  • 1x DVI-I Connector, Up to 1920 x 1080
  • 2x GbE LAN Ports (Support Wake On Lan, Teaming, Jumbo Frame, PXE), RJ45 -GbE1: Intel® I210 -GbE2: Intel® I210
  • 2x RS-232/422/485 with Auto Flow Control, DB9
  • 1x USB 3.0 & 3x USB 2.0 (Type-A)
  • 1x Mic-in and 1x Line-out, Phone Jack 3.5mm
  • 1x ATX Power On/Off Switch Button
  • 1x AT/ATX Mode Switch
  • 1x Remote Power On/Off Connector, 2-Pin Terminal Block

Storage

  • 1x mSATA (SATA 2.0, Shared by Mini-PCIe Socket)
  • 1x 2.5" SATA HDD Bay (Optional 1x Half-Slim SSD, SATA 2.0)

Expansion

  • 1x CMI Interface for CMI Modules
  • 2x Full-size Mini-PCIe (Supports Wireless & I/O Expansion)
  • 1x SIM Socket
  • 1x Universal I/O Bracket
  • 2x Antenna Holes

Other Function

  • Instant Reboot Technology (0.2 sec)
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
Power Requirement
  • Support AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 3-Pin Terminal Block Connector
  • Optional Power Adapter AC/DC 12V/5A 60W
Physical
  • Dimension (WxDxH): 150 x 105 x 52.3 mm
  • Weight: 0.86kg
  • Construction: Extruded Aluminum with Heavy Duty Metal
  • Mounting: VESA / Wall Mounting (Optional DIN-Rail / Side Mounting)
  • Unibody Design
  • Fanless Design
  • Jumper-less Design
Protection
  • Reverse Power Input Protection Supported
  • Over Voltage Protection (OVP) Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection (OCP) 120V/ 20A
  • ESD Protection Air Discharge: +/-8kV (air), +/-4kV (contact)
Operating System
  • Windows® 10
  • Windows® 8.1
  • Windows® 7
Environment
  • Operating Temperature: -25°C to 70°C (With extended temperature peripherals; Ambient with Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 95% RH @ 40˚C (Non-condensing)
  • Shock: 50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
  • Vibration: Random: 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Certification
  • EMC: CE, FCC Class A
  • Safety: CB 62368-1, IEC/EN 62368-1
