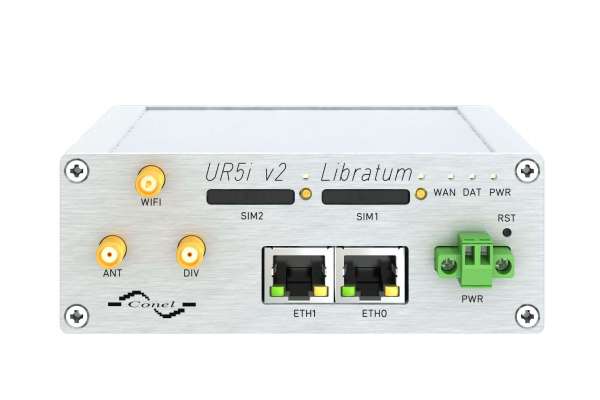

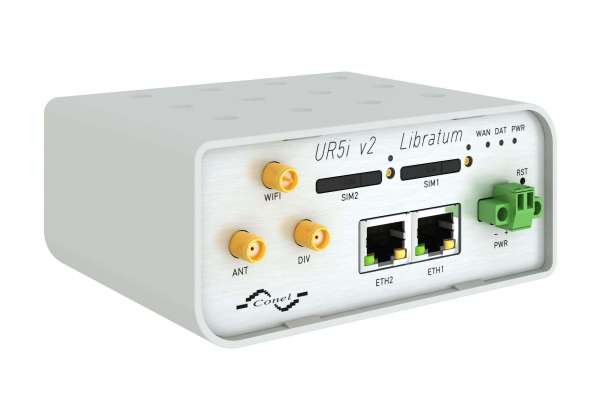

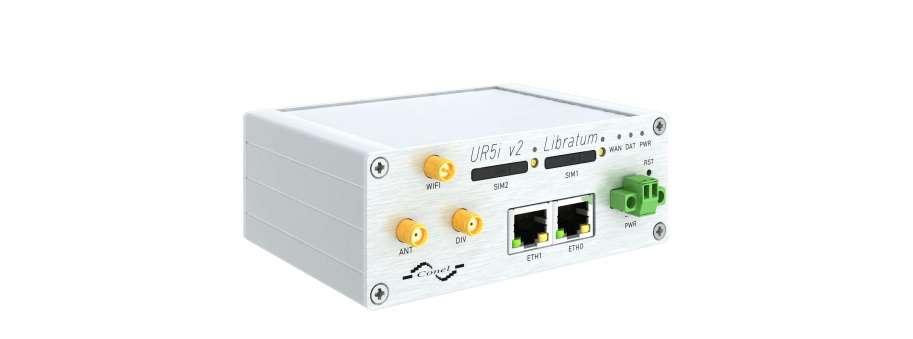

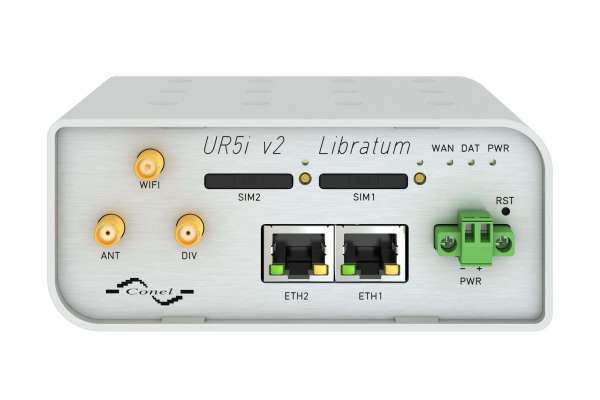

Balanced, non-modular UMTS/HSPA+ industrial router with standard features Advantech BB-UR2L610011-SWH

Price and avalability

Partnumber Description Price VAT incl Avalability
BB-UR2L610011-SWH Мережевий рутер B+B Advantech UR5i v2 Libratum set SWH  18 372,4

ICR-2734 Libratum - updated version of Advantech B+B UR5i v2 Libratum

As a standard, this exceptionally fast UMTS/HSPA+ UR5i v2 Libratum wireless router is equipped with two Ethernet 10/100 ports and two SIM cards. Two SIM cards backup communication in mobile operator network or networks and provide failover to each other. WiFi extension available on demand. Configuration is done via web interface protected by a password. The 3G UMTS/HSPA+ router supports the creation of VPN tunnels using technologies IPsec, OpenVPN and L2TP to assure safe communication. The web interface provides detail statistics about the 3G router activities, signal strength, detailed log, etc. The cellular router supports the following functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS and many other functions.

Other diagnostic functions ensuring continuous communication include automatic inspection of PPP connection offering an automatic restart feature – in the case of connection losses, or a hardware watchdog which monitors the status of the router. With the help of a special window (start up script window) you may insert Linux scripts for various actions. For some applications the key option is to create several different configurations for one UMTS/HSPA+ wireless router, the so-called profiles (maximum of 4), and the option to switch among them (for example via SMS, etc.) is essential. Cellular wireless routers may automatically upgrade configuration and firmware from the server. This allows for a mass reconfiguration of many routers in one time.

Additional information

  • Plastic or metal case, interface 2 x Ethernet 10/100, 2 x SIM, optional Wi-Fi
  • M-RAM memory built inside the router may be used for the storage of the router statistics or to run various applications
  • Maximum download speed 14.4 Mbit/s, upload 5.7 Mbit/s
  • Supports VPN for the secure connection of equipment supporting standards – IPsec, X.509, OpenVPN or L2TP
  • Extended operational temperature range from -30°C to +70°C
  • Robust industrial construction, connection status monitoring and control, control via SMS and other advanced features based on our previously successful products – the complete list of routers may be found here
  • The router also supports VRRP, DHCP, NAT, NAT-T, DynDNS, NTP, GRE, SSH, PPPoE Bridge etc.
  • SNMP to perform diagnostics of the selected functions
  • SMS control of selected functions
  • Configuration via web interface (also remotely via network, implemented web server)
  • Information about the level of GSM signal, detailed event history log, etc.
  • Option to switch between SIM cards if the preset data limit is reached, for example during roaming detection, etc.
  • Easy firmware update
  • Bulk-configuration of 3G UR5i v2 routers present in the network
  • Compact dimensions, all necessary ports, LED, antenna connector in the front of the router and option to be attached to a DIN bar
  • Dimension / Weight: SL version – 42x80x113mm / 290g, Plastic version – 50x83x116mm / 210g
  • FTP server, option to create user applications

Software

For easy use – additional software is provided – communication VPN server SmartCluster and software for router monitoring R-SeeNet.

About SmartCluster

SmartCluster is a software designed to create a safe communications systems while using a public network – the Internet. SmartCluster is an OpenVPN server, which offers three functions for the creation of safe private networks in a public environment.

Learn more about SmartCluster

About R-SeeNet

R-SeeNet it is a software system used for the monitoring of statuses and functions of B+B SmartWorx routers. It continuously collects information from individual routers in the network and records this information into the SQL database. It then creates a visual form of this information – for the user, the network administrator.

Learn more about R-SeeNet
