IP68
Military T range
Stainless Steel

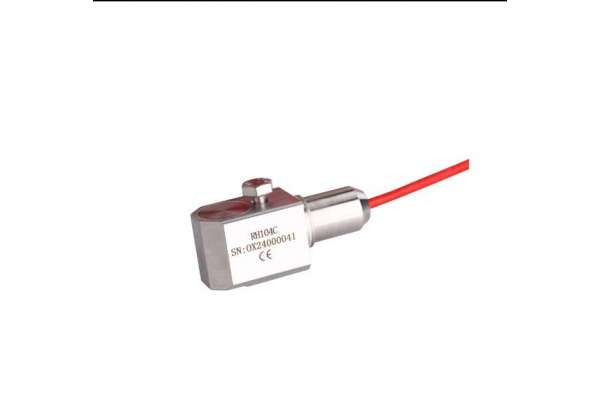

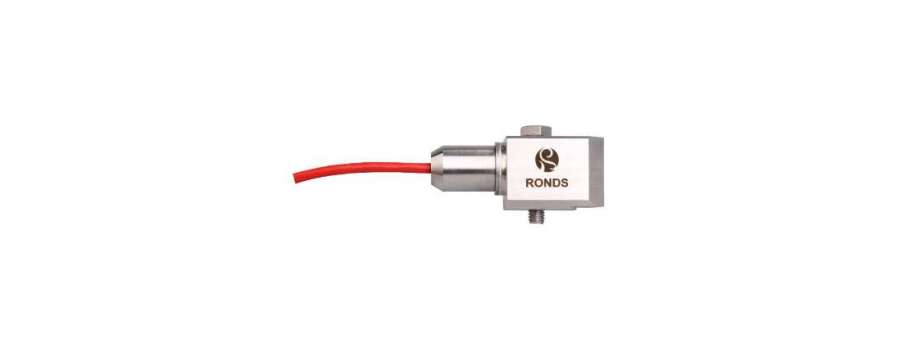

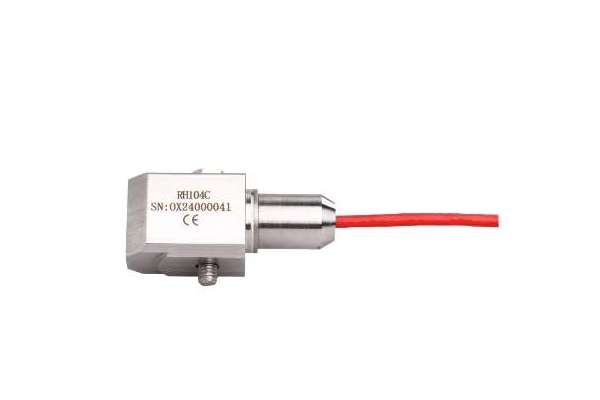

Wired Vibration And Temperature Sensor Ronds RH104C(T)
- Built-in IEPE circuit, isolation output, constant current source power supply
- Laser seal welded
- Side exit installation
- Utilizes an integrated wiring structure, suitable for online monitoring in special conditions such as high humidity environments
Additional information
Physical |
|
| Dimension | RH104C(T): 59.5mm × 22.0mm × 25.0mm |
| Weight | RH104C(T): 126g |
| Mounting Thread | M6× 1 |
| Seal Method | Laser welding |
| Casting Material | 316L Stainless Steel |
| Output | Side output, integrated cable |
| Ambient Temperature | -55℃ to +125℃ |
| Mounting Torque | About 2.7N.m to 6.8N.m (M6 thread) |
| Protection Grade | IP68 |
| Maximal Shock Level | 5000g |
Basic |
|
| Sensitivity | 100mv/g(±10%) |
| Range | ±50g peak |
| Amplitude Linearity | ≤1% |
| Frequency Response (±10%) | 0.7Hz to 7kHz |
| Frequency Response (±3 dB) | 0.4Hz to 10kHz |
| Resonance Frequency | About 25 kHz |
| Transverse Sensitivity | ≤5% |
| Temperature Measuring Range | -40℃ to 120℃ |
| Temperature Sensitivity | 10mv/℃ |
| Temperature Voltage Output | 70mv (25℃) *The temperature measurement function is an optional function, corresponding to the RH104TC model |
Electrical |
|
| Bias Voltage | 10.5VDC to 13.5 VDC typical: 12VDC |
| Constant Current | 2mA to 20 mA typical: 4mA |
| Excitation Voltage | 18VDC to 30VDC typical: 24VDC |
| Settling Time | ≤2 S |
| Electrical Noise Power Spectral Density |
|
| Output Impedance | <100Ω |
| Grounding | Case isolated, internal shielded |
| Identification | Ex ia IIC T4 Ga *Not standard, optional |
