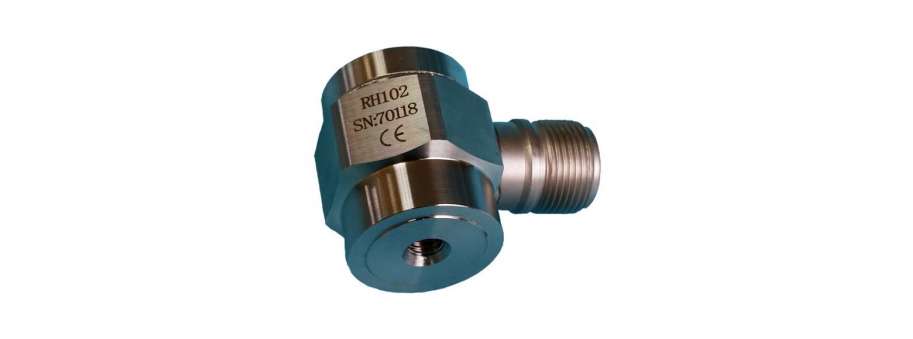

Side output vibration and temperature measuring sensor Ronds RH102
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RH102 | П'єзо акселерометр (датчик віброприскорення) IEPE Ronds RH102 (100 vm/G), бокове відведення сигналу | 11 217,0 |
Product features:
- Built-in IEPE circuit, isolation output, constant current power supply.
- Laser seal welded
- IP68 design, outdoor using available
- Military connector, can be used in harsh industrial field
Additional information
Basic parameters |
|
| Sensitivity（±10％） | 100mv/g |
| Range | ±80g |
| Linearity | 1% |
| Frequency Response (±10%) | 0.7～10000Hz |
| Frequency Response(±3 dB) | 0.4～15000Hz |
| Resonance Frequency | 26KHz |
| Transverse Sensitivity | ≤5% |
Electrical character |
|
| Bias Voltage | 10.5-13.5VDC typical：12VDC |
| Constant Current | 2-20mA Typical：4mA |
| Excitation Voltage | 18-30 VDC typical：24VDC |
| Settling time | ≤2S |
| Electrical noise power spectral density |
|
| Output Impedance | ＜100Ω |
| Casting Dielectric Resistance | ＞108 Ω |
Features |
|
| Maximal Shock Leve | 5000 g |
| Mounting Thread | 6 mm |
| Weight | 92 g |
| Dimension | Diameter × Height: 23×32 (mm） |
| Seal Method | Laser Welding |
| Protection Grade | IP68 |
| Casting Material | 316L stainless steel |
| Output | Side output, 2 pins Mil-C-5015 |
| Working Temperature | -40～+120°C |
| Mount Torque | About 2.7～6.8N.m (M6 thread) |
| Certificates | CE |
Temperature Measuring（Not standard, optional）1.Model：RH102T2.Side output, 3 pinsMil-C-5015 |
|
| Measuring Range | -40~120°C |
| Sensitivity | 10mv/°C |
Explosion proof option |
|
| Identification | ExiaIICT4 ( For Zone 0, 1, 2) |
