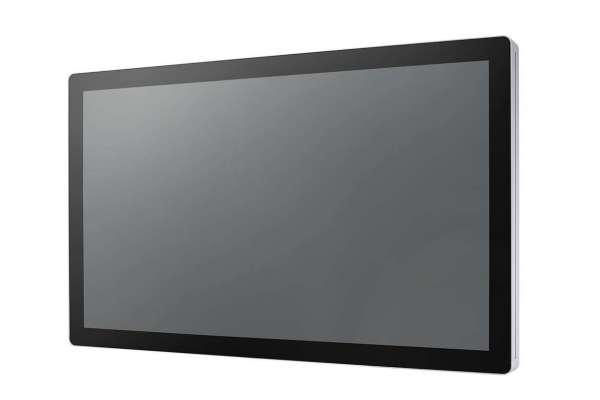

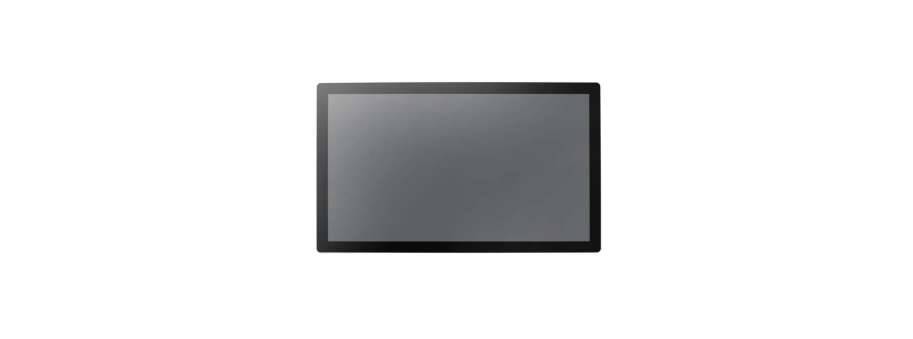

42.5" Ubiquitous Touch Computer with 11th Gen Intel Core i7/i5/i3 Processor Advantech UTC-542I

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-542IP-ATB0E 42.5" PCT.T/S with core i5-1145G7E, 8GB RAM  308 571,0

UTC-542I features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • High performance and fanless system design
  • Built-in Intel® Core™ i5-1145G7E (UTC-542I)
  • 42.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Aluminum frame with side groove design for flexible peripheral installation

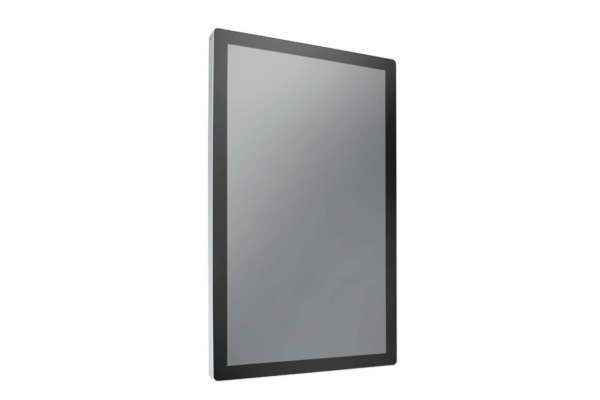

  • Supports both landscape and portrait screen orientations

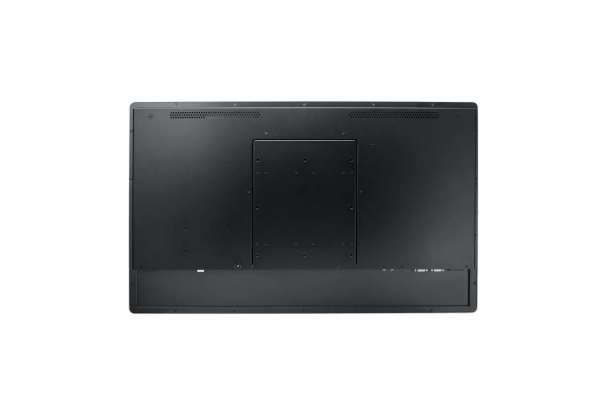

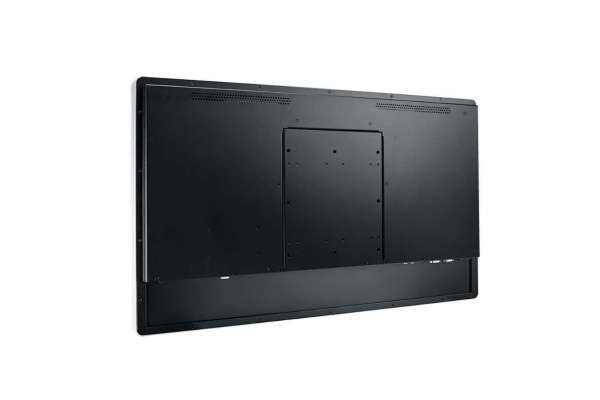

  • VESA 200 mm standard mounting holes for varied mounting demands
  • Support Advantech WISE-PaaS/RMM

Additional information

Processor System

CPU
  • i5-1145G7E (Default)
  • Intel® Core™ i3-1115G4E
  • Intel® Core™ i7-1185GRE
Base Frequency 1.50/ 2.6 GHz/ Quad Core
Cache L3 Cache 8MB
Memory DDR4-3200 up to 64GB
HDD 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x GbE, LAN1: Intel i219LM, LAN2: Intel i210AT/IT (supports Wake on LAN)

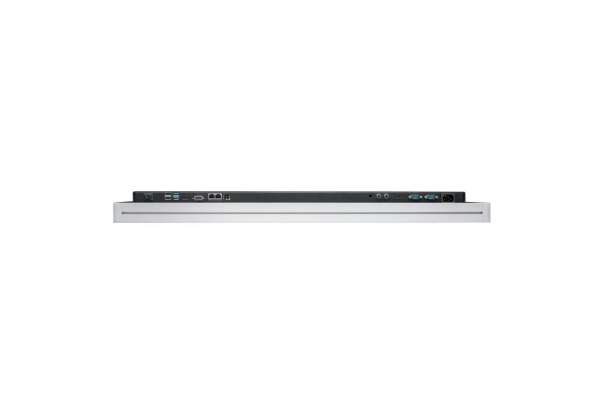

I/O ports
  • 2 x GbE, LAN1: Intel i219LM, LAN2: Intel i210AT/IT
  • 1 x HDMI / 1 x DP
  • 1 x Audio Line-out
  • 1 x Mic-in
  • 4 x USB3.2 Gen.
  • 2x1 10Gbps
  • 1 x USB type-C, USB3.2 Gen. 2x2 20Gbps, support DP1.4a via Alt. Mode
Stereo Speaker 10W x 2
Bus expansion
  • 1 x M.2 E-Key 2230 (PCIe x 1, USB2.0, I2C)
  • 1 x M.2 B-Key 3042 (USB2.0) w/ Nano-SIM
  • 1 x M.2 M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA
Dimensions (W x H x D) 1016.9 x 605.2 x 60.5mm (Pcap / Mirror Pcap*)
Weight 24.6 kg (54.23 Ib)

OS Support

Windows 10 IoT Enterprise
Environmental Specifications
Operating Temperature 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G
Shock 5 G peak acceleration (11 msec. duration)
Certification CE, FCC, UL, CB, CCC, BSMI

Power Supply

Input Voltage 100~240V
Adapter 24V, 9.58A
Power consumption
  • Typical 95W
  • Max. 105W

LCD Display

Size/Type 42.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080
Max. Color 16.7 M
Pixel Pitch (mm) 0.49 (H) x 0.49 (W)
Brightness (cd/m2 ) 450 nits
View Angle 178°/178°

Touch Screen (PE/GE)

Type Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel (No touch function)
Light Transmission 90% ± 2% / 90%
Controller USB Interface / -
