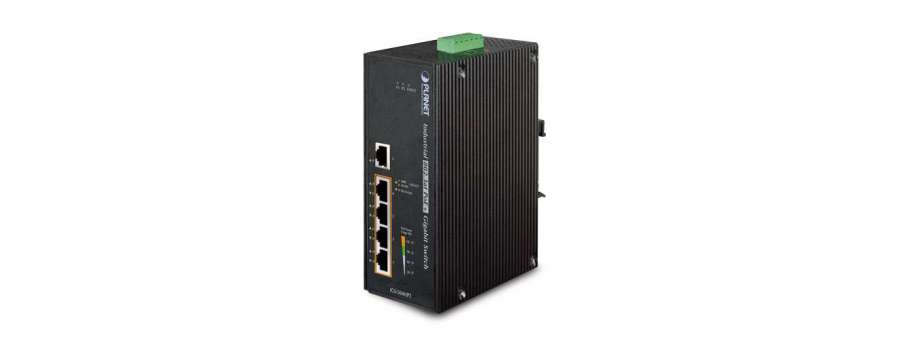

Industrial 5-Port Gigabit Switch with 4-Port PoE+ Planet IGS-504HPT
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IGS-504HPT | Промисловий комутатор Planet IP30 5-Port Gigabit Switch with 4-Port 802.3AT POE+ (-40 to 75 C) | 18 877,6 | Доступно |
PLANET IGS-504HPT is an Industrial Gigabit 802.3at PoE+ Switch providing Power over Ethernet capability and non-blocking wire-speed Gigabit performance in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
Physical Port
- 5-port 10/100/1000Base-T RJ-45 with 4-port IEEE 802.3af / 802.3at PoE Injector
Power over Ethernet
- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSE
- Up to 4 IEEE 802.3af / 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
- Auto-detects IEEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
Layer 2 Features
- Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)
- Automatic address learning and address aging
Industrial Case / Installation
- IP30 aluminum metal case protection
- DIN Rail and Wall Mount Design
- 48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power
- Supports EFT protection of 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Additional information
| Hardware Specifications | |||||
| Copper Ports | 5 x 10/100/1000Base-T RJ-45 TP Auto-MDI/MDI-X, Auto-Negotiation |
||||
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
||||
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||
| LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault 2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT ■ Orange: PoE In-use 1 x LED for Port-5: ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT 4 x LED for PoE Power Usage (W): ■ Orange: 30, 60, 90 and 120W |
||||
| ESD Protection | 6KV DC | ||||
| EFT Protection | 6KV DC | ||||
| Enclosure | IP30 aluminum metal case | ||||
| Installation Type | DIN rail kit or wall mount | ||||
| Dimensions (W x D x H) | 152 x 107x 72 mm | ||||
| Weight | 1478g | ||||
| Power Requirements | 48V DC, 5A max. Redundant power with polarity reverse protection function |
||||
| Power Consumption / Dissipation | 14.1 watts / 48 BUT (System loading without PoE) 134.1 watts / 457 BTU (Full loading with PoE function) |
||||
| Power over Ethernet | |||||
| PoE Standard | IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE | ||||
| PoE Power Supply Type | End-Span | ||||
| Power Pin Assignment | 1/2(+), 3/6(-) | ||||
| PoE Power Output | Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) |
||||
| Max. number of Class 4 PD | 4 | ||||
| Switch Specification | |||||
| Switch Processing Scheme | Store-and-Forward | ||||
| Address Table | 1K entries | ||||
| Flow Control | Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex |
||||
| Switch fabric | 10Gbps | ||||
| Throughput (packet per second) | 7.44Mpps@64bytes | ||||
| Maximum Transmit Unit | 9216 bytes | ||||
| Speed | TP: 10/20Mbps, 100/200Mbps, 2000Mbps | ||||
| Standards Conformance | |||||
| Standards Compliance | IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
||||
| Environment | |||||
| Temperature |
|
||||
| Humidity |
|
||||
