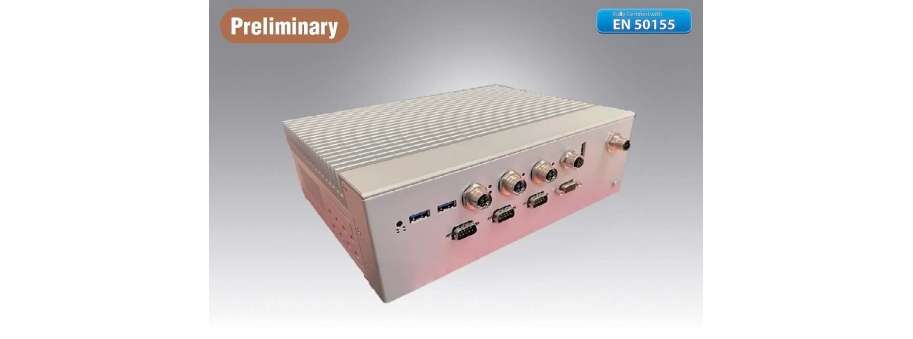

11th Gen Intel® Core™ H-Series platform EN50155 Fanless Computer Compliant for Rolling Stock Applications Advantech ITA-580

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
ITA-580-W7A1 Промисловий комп'ютер Advantech ITA-580, i7-11850HE, 8G, 4 USB 3.1, mPCIe x2, M.2 x4, 2.5” SSD up to 4, mSATA x1, 2 COM, 4DI/4DO, DP port x2, 24Vdc ~110 Vdc  198 709,0
ITA-580-W5A1 i5-11500HE,8G,2DP,3LAN,2COM,4DIO,24-110Vdc  236 876,0
ITA-580-W0A1 6600HE,8G,2DP,3LAN(2/3BP),2COM,4DIO,24-110Vdc  192 323,0

ITA-580 series powered by Intel 11th Gen. processors with reliable ECC function and built-in 2 x DisplayPort interfaces, 3 x 2.5 GbE ports (with LAN bypass) in M12 X-Coded and wide range 24V - 110VDC input, the computer is also featured TPM 2.0 and 4 x 2.5-inch SSD removable tray. Advantech iDoor tech and multi-expandable socket allow users to fulfill diverse application by expanding a variety of communication modules, including 5G, Wi-Fi 6, GPS, MVB and CANBus. ITA-580 is fully compliance with EN 50155, EN 50121-3-2, EN 50121-4 and EN 45545-2 test standard, and ensure stability and reliability system operations on railway critical applications.

  • 11th Gen Intel® Core™ H-Series platform with RM590E
  • SuperCap-based power backup module for power failure
  • Featured Time-Sensitive Network technology
  • Virtualization ability for multi tasks acceptable
  • Support advanced 5G and Wi-Fi 6 wireless connectivity
  • LAN bypass for redundant connectivity to communicate with other devices
  • Compliant with EN 50155 OT4
  • Wide range 24 - 110Vdc power input, compliant with EN 50155
  • Support variety of communication modules by iDoor technology
  • No RED certification

Additional information

System Chipset
CPU Xeon W-11865MLE i7-11850HE i5-11550HE Celeron 6600HE
Base frequency/Turbo Boost 2.6/4.7 GHz 2.6/4.7 GHz 2.6/4.5GHz 2.6 GHz/ NA
L3 Cache 24M 24M 12M 8M
Cores/Threads 8 P-core/16T 8 P-core/16T 6 P-core/12T 2 P-core/2T
Chipset RM590E RM590E RM590E RM590E
BIOS AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit

Memory
Technology Dual channel DDR4 3200 MHz Dual channel DDR4 3200 MHz Dual channel DDR4 3200 MHz Dual channel DDR4 3200 MHz
ECC ECC onboard Non-ECC Non-ECC Non-ECC
SO-DIMM slot 1 1 1 1
On-board RAM 8GB (Default)/16GB (Optional) 8GB (Default)/16GB (Optional) 8GB (Default)/16GB (Optional) 8GB (Default)/16GB (Optional)
Max. Capacity Up to 32GB Up to 32GB Up to 32GB Up to 32GB

Security
TPM TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0

Graphics
Chipset Intel® UHD Graphics for 11th Gen Intel® Processors Intel® UHD Graphics for 11th Gen Intel® Processors Intel® UHD Graphics for 11th Gen Intel® Processors Intel® UHD Graphics for 11th Gen Intel® Processors
Max. Frequency 1.35 GHz 1.35 GHz 1.35 GHz 1.1 GHz

I/O
USB
  • 4 x USB 3.1 (Gen.1), Type-A connectors
  • 1 x USB 2.0. M12 A-Coded (F)
  • 4 x USB 3.1 (Gen.1), Type-A connectors
  • 1 x USB 2.0. M12 A-Coded (F)
  • 4 x USB 3.1 (Gen.1), Type-A connectors
  • 1 x USB 2.0. M12 A-Coded (F)
  • 4 x USB 3.1 (Gen.1), Type-A connectors
  • 1 x USB 2.0. M12 A-Coded (F)
Serial Port 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control
DIO 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation
Display 2 x DP port (max resolution up to 4096 x 2304 at 60 Hz) 2 x DP port (max resolution up to 4096 x 2304 at 60 Hz) 2 x DP port (max resolution up to 4096 x 2304 at 60 Hz) 2 x DP port (max resolution up to 4096 x 2304 at 60 Hz)
Audio 1 x DB9, 1 x Line-out, 1 x Mic-in 1 x DB9, 1 x Line-out, 1 x Mic-in 1 x DB9, 1 x Line-out, 1 x Mic-in 1 x DB9, 1 x Line-out, 1 x Mic-in

Ethernet
Controller Intel 3 x i226-IT (Industrial-grade) Intel 3 x i226-IT (Industrial-grade) Intel 3 x i226-IT (Industrial-grade) Intel 3 x i226-IT (Industrial-grade)
Transmission Speed 10/100/1000/2500 Mbps 10/100/1000/2500 Mbps 10/100/1000/2500 Mbps 10/100/1000/2500 Mbps
Connector 3 x M12 X-Coded(F), LAN#2/3 with bypass as optional 3 x M12 X-Coded(F), LAN#2/3 with bypass as optional 3 x M12 X-Coded(F), LAN#2/3 with bypass as optional 3 x M12 X-Coded(F), LAN#2/3 with bypass as optional

Storage
SSD easy-swap tray Max to 4 x 2.5" 7mm SSD, support RAID 0/1/5/10 Max to 4 x 2.5" 7mm SSD, support RAID 0/1/5/10 Max to 4 x 2.5" 7mm SSD, support RAID 0/1/5/10 Max to 4 x 2.5" 7mm SSD, support RAID 0/1/5/10
mSATA 1 x mSATA slot 1 x mSATA slot 1 x mSATA slot 1 x mSATA slot

Others
Mini PCIe 2 x Mini PCIe Socket (Full size) 2 x Mini PCIe Socket (Full size) 2 x Mini PCIe Socket (Full size) 2 x Mini PCIe Socket (Full size)
M.2 2 x M.2 3042/3052 B+M Key / 1 x M.2 2230 A+E Key 2 x M.2 3042/3052 B+M Key / 1 x M.2 2230 A+E Key 2 x M.2 3042/3052 B+M Key / 1 x M.2 2230 A+E Key 2 x M.2 3042/3052 B+M Key / 1 x M.2 2230 A+E Key
PCIe 1 x PCIex16 or 2 x PCIex8 1 x PCIex16 or 2 x PCIex8 1 x PCIex16 or 2 x PCIex8 1 x PCIex16 or 2 x PCIex8
SIM card 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards

LED & Button
LED 1 x power, 1 x storage, 1 x battery, 1 x reserve 1 x power, 1 x storage, 1 x battery, 1 x reserve 1 x power, 1 x storage, 1 x battery, 1 x reserve 1 x power, 1 x storage, 1 x battery, 1 x reserve
Button
  • 1 x Power on / off switch
  • 1 x Reset button
  • 1 x Power on / off switch
  • 1 x Reset button
  • 1 x Power on / off switch
  • 1 x Reset button
  • 1 x Power on / off switch
  • 1 x Reset button

Power
Input Voltage 24 - 110VDC power input, compliant with EN 50155 24 - 110VDC power input, compliant with EN 50155 24 - 110VDC power input, compliant with EN 50155 24 - 110VDC power input, compliant with EN 50155
Connector 1 x M12 K-Coded (M) 5 pin 1 x M12 K-Coded (M) 5 pin 1 x M12 K-Coded (M) 5 pin 1 x M12 K-Coded (M) 5 pin
Ignition Enable range from 10 to 30VDC with 2.5KV isolation Enable range from 10 to 30VDC with 2.5KV isolation Enable range from 10 to 30VDC with 2.5KV isolation Enable range from 10 to 30VDC with 2.5KV isolation

Watchdog Timer
Output System reset System reset System reset System reset
Interva Programmable 1~255 sec/min Programmable 1~255 sec/min Programmable 1~255 sec/min Programmable 1~255 sec/min

Environment
Temperature
  • Operating (with Industrial SSD) -40 ~ 70 °C
  • Non-operating Temperature -40 ~ 85 °C
  • Operating (with Industrial SSD) -40 ~ 70 °C
  • Non-operating Temperature -40 ~ 85 °C
  • Operating (with Industrial SSD) -40 ~ 70 °C
  • Non-operating Temperature -40 ~ 85 °C
  • Operating (with Industrial SSD) -40 ~ 70 °C
  • Non-operating Temperature -40 ~ 85 °C
Humidity 5% ~ 95% @ 40 °C (Non-Condensing) 5% ~ 95% @ 40 °C (Non-Condensing) 5% ~ 95% @ 40 °C (Non-Condensing) 5% ~ 95% @ 40 °C (Non-Condensing)

Mechanical
Dimension (W x H x D)
  • 260 x 88 x 197.2 mm / 10.24 x 3.46 x 7.76 inch
  • 314 x 95 x 197.2 mm/12.36 x 3.74 x 7.76 inch with mounting kit
  • 260 x 88 x 197.2 mm / 10.24 x 3.46 x 7.76 inch
  • 314 x 95 x 197.2 mm/12.36 x 3.74 x 7.76 inch with mounting kit
  • 260 x 88 x 197.2 mm / 10.24 x 3.46 x 7.76 inch
  • 314 x 95 x 197.2 mm/12.36 x 3.74 x 7.76 inch with mounting kit
  • 260 x 88 x 197.2 mm / 10.24 x 3.46 x 7.76 inch
  • 314 x 95 x 197.2 mm/12.36 x 3.74 x 7.76 inch with mounting kit
Install Wall-mount by mounting bracket Wall-mount by mounting bracket Wall-mount by mounting bracket Wall-mount by mounting bracket
Ingress Protection IP40 rating IP40 rating IP40 rating IP40 rating

Software
Operating System Windows 10, 11, Linux Windows 10, 11, Linux Windows 10, 11, Linux Windows 10, 11, Linux

Certification
EMC CE/FCC Class A, CCC CE/FCC Class A, CCC CE/FCC Class A, CCC CE/FCC Class A, CCC
Safety UL, CB, CCC, BSMI UL, CB, CCC, BSMI UL, CB, CCC, BSMI UL, CB, CCC, BSMI

EN 50155 Compliance
Operating temperature classes EN 50155:2021 OT4 (-40 ~ 70 °C) EN 50155:2021 OT4 (-40 ~ 70 °C) EN 50155:2021 OT4 (-40 ~ 70 °C) EN 50155:2021 OT4 (-40 ~ 70 °C)
Shock and Vibration IEC 61373 body mount class B IEC 61373 body mount class B IEC 61373 body mount class B IEC 61373 body mount class B
Interruptions of Voltage Supply Class S2: 10 ms interruptions Class S2: 10 ms interruptions Class S2: 10 ms interruptions Class S2: 10 ms interruptions
Supply Change Over Class C1: at 0.6 Un during 100 ms without interruptions Class C1: at 0.6 Un during 100 ms without interruptions Class C1: at 0.6 Un during 100 ms without interruptions Class C1: at 0.6 Un during 100 ms without interruptions
EMC EN 50121-3-2/EN 50121-4 EN 50121-3-2/EN 50121-4 EN 50121-3-2/EN 50121-4 EN 50121-3-2/EN 50121-4
Fire protection EN45545-2:2020 HL3 EN45545-2:2020 HL3 EN45545-2:2020 HL3 EN45545-2:2020 HL3
