Advantech ARK-3440 Embedded Fanless Computer with Intel® Core i7 610E with PCI and PCIe x1 / x4 expansion slots
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-3440F-U1A2E | Компактный компьютер ARK-3440, i3-330E 2.13G, w/ 3COM, 6USB, 2GLAN | 0,00 | Не доступно к заказу |
| ARK-3440F-U4A2E | Компактний комп'ютер ARK-3440 A2 i5-520E SV 2.4GHz w/ 3COM 6USB 2GLAN/1 Slot PCI and 1 Slot PCIe x1 | 75 973,5 | |
| ARK-3440F-U5A2E | Компактный компьютер ARK-3440 A2 i7-610E SV 2.53G w/ 3COM 6USB 2GLAN/1 Slot PCI and 1 Slot PCIe x1. | 0,00 | Не доступно к заказу |

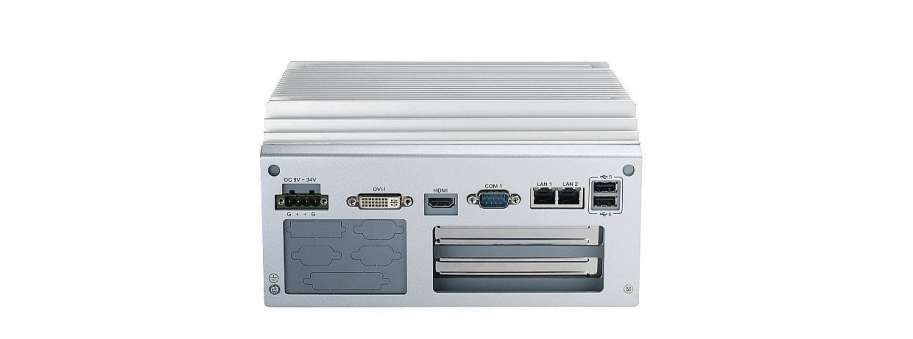

The ARK-3440 industrial computer has two slots for installing PCI and PCIe x1 or x4 expansion cards and two miniPCI-e slots.
The Advantech ARK-3440 industrial computer is expanding the line of well-known compact computers ARK-3403 and ARK-3420, which set new standards for the capabilities of compact embedded computers.
ARK-3440 compact computers are equipped with high-performance first-generation Intel ® Core ™ processors (optional Intel® Core i7 610E 2.53GHz, Intel® Core i5 520E 2.4GHz, Intel® Core i3 330E 2.13 GHz) and are made in the usual design with passive cooling, developed by Advantech. The upper case cover has an increased surface area due to even more intense finning, which ensures the most efficient heat dissipation and optimization of the passive cooling system over the entire range of operating temperatures.
Two drive slots for installing SATA hard drives or SSDs increase reliability in industrial environments. Storage capabilities are expanded by a separate slot for installing a Compact Flash card. The special design provides quick access to drives during operation and does not require complete disassembly of the computer. To connect external additional drives, ARK-3440 computers are equipped with an eSATA interface.
Industrial computers Advantech ARK-3403 are equipped with 6 USB 2.0 ports and 4 serial RS-232 ports, one of them supports RS-422/485 interfaces. Optionally, you can add 1 parallel and 3 serial ports, bringing the total number of RS232 ports to 7 pcs. The Advantech ARK-3440 computer has DVI and HDMI ports for connecting monitors; optionally, a 48-bit LVDS interface for connecting LCD panels can be added. The industrial computer is equipped with an audio interface with support for High Definition Audio.
The power of the industrial computer ARK-3440 is possible in a wide range of input DC voltage from 9 to 34 V.
The Advantech ARK-3440 Embedded Computer is running the following OS: Windows 7 Embedded and Windows XP Embedded
Additional information
|
Модель
|
ARK-3440 A2
|
|
|
Производится
|
Массовое производство
|
|
|
Ориентировочная доступность до
|
2017 Q2
|
|
|
Центральный процессор
|
Процессор
|
Intel® Core i7 610E 2.53GHz
Intel® Core i5 520E 2.4GHz Intel® Core i3 330E 2.13 GHz |
|
Системный контроллер
|
Intel™ QM57 Chipset
|
|
|
BIOS
|
AMI 8Mbit Flash BIOS
|
|
|
Оперативная память
|
SODIMM до 8 GB DDR3 1066 SDRAM
|
|
|
Видео-интерфейс
|
CRT
|
Да (Интегрирован в DVI-I)
|
|
HDMI
|
Да
|
|
|
LVDS
|
48-bit LVDS (Опционально)
|
|
|
DVI
|
Да
|
|
|
Интерфейсы ввода/вывода
|
Audio
|
HD Audio, Line-In, Spk-out, Mic-in
|
|
Ethernet
|
2x 10/100/1000 Base-T (WOL)
|
|
|
USB
|
6x USB 2.0
|
|
|
eSATA
|
1
|
|
|
Serial Port
|
2x RS-2322, 1x RS-232/422/485,
3x RS-232 (Опционально) |
|
|
Parallel
|
Опционально
|
|
|
Слоты расширения
|
PCI + PCIe x1 (по умолчанию)
2x MiniPCIe (по умолчанию) 2x PCIe x1 (с расширителем AMO-R009E) 2x PCI (с расширителем AMO-R013E) 1x PCIe x4 + PCI (с расширителем AMO-R014E)
|
|
|
Накопители
|
CompactFLash/Cfast
|
1x Type I/II CompactFlash Card
|
|
HDD Drive Bay
|
2x 2.5" HDD bay
|
|
|
Питание
|
Управление
|
APM 1.2, ACPI 2.0
|
|
Входное напряжение
|
DC 9V ~ 34V, ATX
|
|
|
Размеры и монтаж
|
Монтаж
|
Настольный/настенный монтаж
|
|
Размеры (W x H x D) мм
|
220 x 117 x 200
|
|
|
Вес, кг
|
4.0
|
|
|
Рабочие условия
|
Рабочая температура
|
HDD: 0~45° C
IG CF: 0 ~ 50° C |
|
Допустимые вибрации
|
HDD: 1 Grms, IEC 60068-2-64 random 5~500Hz, 1Oct./min, 1hr/axis, 3 axes;
CF card: 5 Grms, IEC 60068-2-64 random 5~500Hz, 1Oct./min, 1hr/axis, 3 axes |
|
|
Допустимые ударные нагрузки
|
HDD: 20 G, IEC 60068-2-27 half sine 11 ms duration, 3 axes
CF card: 50 G, IEC 60068-2-27 half sine 11 ms duration, 3 axes |
|
|
Совместимые встраиваемые ОС
|
Windows XP Embedded
Windows 7 Embedded |
|
