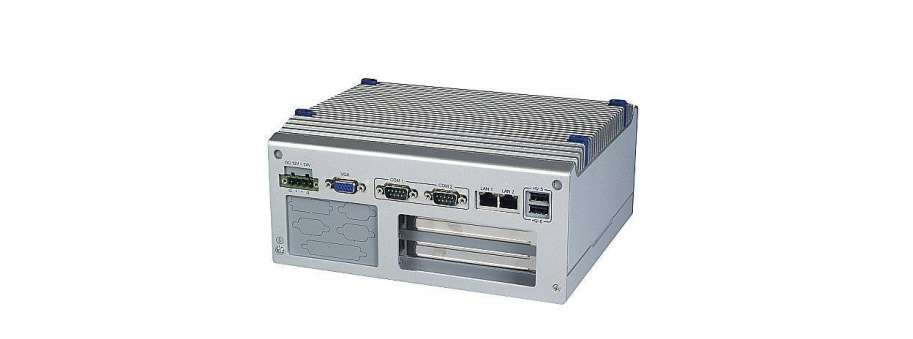

Advantech ARK-3403 Compact Embedded Computer with Intel® Atom ™ D510 with PCI and PCI-e x1 Expansion Slots, eSATA
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-3403-D6A1E/BTO2 | Компактний промисловий комп'ютер Advantech ARK-3403, w/ AtomD525, 2LAN, 6USB, 4COM,4 COM, 2 x RS-232 and 2 x RS-232/422/485 port , RS-485 w/auto flow control, 250G HDD, 2 G RAM, 2 PCI slots, XPE WES2009 Luna Pier V4.0 ENG-RUS | 44 564,1 | Доступно |
| ARK-3403-09BTO/P/AtomD525/2G/1TB | Компактный компьютер ARK3403 w/ AtomD525, 2LAN, 6USB, 4COM | 42 775,9 | |
| ARK-3403-D5A1E | Компактный компьютер ARK3403 | 0,00 | Не доступно к заказу |
| ARK-3403-D6A1E | Компактный компьютер ARK3403 w/ AtomD525, 2LAN, 6USB, 4COM | 0,00 | Не доступно к заказу |
The industrial computer Advantech ARK-3403 is the most advanced compact and reliable model that has the ability to expand traditional computers - two slots for installing expansion cards (PCI and PCI-e x1, two miniPCI-e slots) and a wide range of input / output interfaces.
Compact Embedded Computers ARK-3403 feature a dual-core processor supporting Intel® Atom ™ D510 1.6GHz or D525 1.8GHz multi-threading and is built in a robust design with passive cooling developed by Advantech. The upper case cover and heat pipe have an increased surface area due to intensive finning, which ensures the most efficient heat dissipation and optimization of the passive cooling system.
Two slots for installing hard drives or SSD drives with SATA interface increase reliability in industrial environments. Storage capabilities are expanded by a separate slot for installing a Compact Flash card. The special design provides quick access to drives during operation and does not require complete disassembly of the computer. To connect external additional drives, ARK-3403 computers are equipped with an eSATA interface and 6 USB 2.0 ports.
Computers Advantech ARK-3403 are equipped with 4 serial ports RS-232, two of them support interfaces RS-422/485. In addition, the computer has an audio interface that supports High Definition Audio, optionally an LVDS interface for connecting LCD panels and a 16-bit general-purpose input / output input port can be added.
The power of the industrial computer ARK-3403 is possible in a wide range of input DC voltage from 12 to 24 V.
The Advantech ARK-3403 Embedded Computer is running the following OS: Windows 7 Embedded, Windows XP Embedded, WinCE 6.0.
Additional information
|
Модель
|
ARK-3403
|
|
|
Производится
|
Массовое производство
|
|
|
Ориентировочная доступность до
|
2017 Q1
|
|
|
Центральный процессор
|
Процессор
|
Intel Atom D525 1.8 GHz/ D510 1.66GHz
|
|
Системный контроллер
|
ICH8M
|
|
|
BIOS
|
AMI 16Mbit Flash BIOS
|
|
|
Оперативная память
|
SODIMM до 2 GB DDR2 SDRAM
|
|
|
Видео-интерфейс
|
CRT
|
Да
|
|
LVDS
|
18-bit LVDS (опционально)
|
|
|
Интерфейсы ввода/вывода
|
Audio
|
HD Audio, Line-In, Spk-out, Mic-in
|
|
Ethernet
|
2 x 10/100/1000 Base-T (WOL)
|
|
|
USB
|
6 x USB 2.0
|
|
|
eSATA
|
1
|
|
|
Serial Port
|
2x RS-232, 2x RS-232/422/485
|
|
|
Parallel
|
Опционально
|
|
|
DIO
|
16-bits DIO (Опционально)
|
|
|
Слоты расширения
|
2x MiniPCIe(по умолчанию)
PCI + PCIe x1 (по умолчанию)
2x PCIe x1 (с расширителем AMO-R009E) 2x PCI (с расширителем AMO-R013E) |
|
|
Накопители
|
CompactFLash/Cfast
|
1 x Type I/II CompactFlash Card
|
|
HDD Drive Bay
|
2 x 2.5" HDD bay
|
|
|
Питание
|
Управление
|
APM 1.2, ACPI 2.0
|
|
Входное напряжение
|
DC 12V ~24V, ATX
|
|
|
Размеры и монтаж
|
Монтаж
|
Настольный/настенный монтаж
|
|
Размеры (W x H x D) мм
|
220 x 102.5 x 200
|
|
|
Вес, кг
|
4.0
|
|
|
Рабочие условия
|
Рабочая температура
|
IG HDD: -10~45° C
IG CF:-10 ~ 55° C
|
|
Допустимые вибрации
|
HDD: 1 Grms, IEC 60068-2-64 random 5~500Hz, 1Oct./min, 1hr/axis, 3 axes;
CF card: 5 Grms, IEC 60068-2-64 random 5~500Hz, 1Oct./min, 1hr/axis, 3 axes |
|
|
Допустимые ударные нагрузки
|
HDD: 20 G, IEC 60068-2-27 half sine 11 ms duration, 3 axes
CF card: 50 G, IEC 60068-2-27 half sine 11 ms duration, 3 axes |
|
|
Совместимые встраиваемые ОС
|
Windows CE 6.0, Windows XP Embedded, Windows 7 Embedded
|
|
