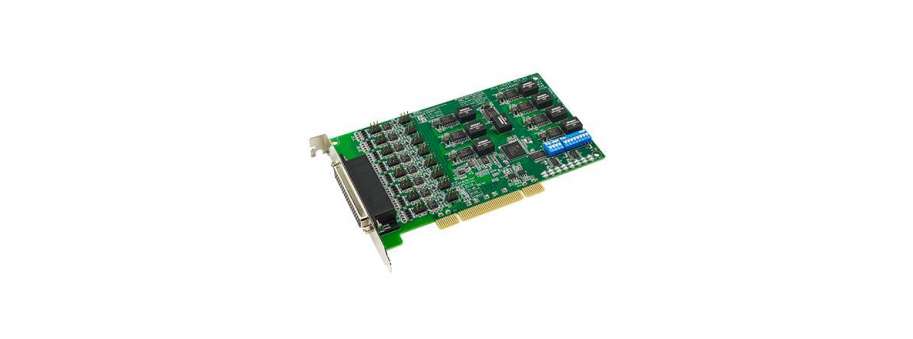

8-port RS-232/422/485 PCI Communication Card Advantech PCI-1622

Price and avalability

Partnumber Description Price VAT incl Avalability
PCI-1622B-DE Плата розширення Advantech для шини PCI, Advantech PCI-1622, 8-port RS-232/422/485 UPCI Comm. Card w/S  14 865,8
PCI-1622C-DE Плата розширення Advantech для шини PCI, Advantech PCI-1622, 8 ізольованих портів RS-232/422/485 / UPCI Comm. Card w/Iso  29 009,7

The PCI-1620 is an 8-port RS-232, and the PCI-1622 is an 8-port RS-232/422/485 PCI communication cards that are compatible with the PCI 2.2 bus specification. The cards provide eight EFT protected ports up to 1,000 V, and have many functions such as high transmission speed of 921.6 kbps; The cards utilize high-performance XR17V358 UARTs with 256-byte FIFOs to reduce CPU load. Thus, the PCI-1620 and PCI-1622 are especially suitable for making reliable systems in multitasking environments.

  • PCI bus 2.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 8 x RS-232 or RS-232/422/485 ports
  • XR17V358 UART with 256-byte FIFOs
  • Supported operating systems: Windows XP/7/8/10, and Linux

Additional information

General

Bus Type Universal PCI v2.2
Certification CE, FCC class A
Connectors
  • 1x Female DB62 (PCI-1620A/22A/22B)
  • 1x Female DB78 (PCI-1622C)
Dimensions (L x W) 174.65 x 106.67 mm (6.88”x 4.2")
Power Consumption 260 mA @ +3.3 V (typ.)

Communications

Comm. Controller XR17V358
Data Bits 5, 6, 7, 8
Data Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD (PCI-1620A/22A/22B) TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI (PCI-1622C) RS-422: Tx+, Tx-, Rx+, Rx- (PCI-1620A/22A/22B) CTS+, CTS-, RTS+, RTS-, Tx+, Tx-, Rx+, Rx- (PCI-1622C) RS-485: Data+, Data- (PCI-1620A/22B/22C)
FIFO 256 bytes
Flow Contro DTR/DSR, RTS/CTS, Xon/Xoff
Parity None, Odd, Even, Mark, or Space
Speed 50 bps ~ 921.6 kbps
Stop Bits 1, 1.5, 2

Software

Bundled Software ICOM Tools
OS Support Windows XP/7/8/10, and Linux (You can reference the SW release note to know the supported OS version.)

Environment

Operating Humidity 5 ~ 95 % RH, non-condensing
Operating Temperature -10 ~ 60°C
Storage Temperature -25 ~ 85°C
