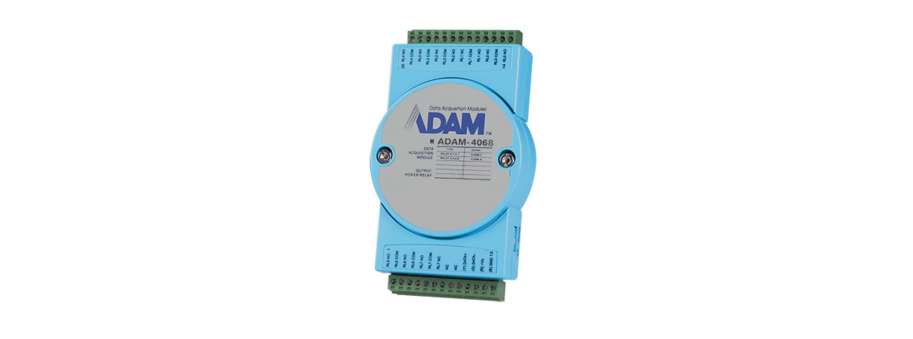

8-ch Relay Output Module Advantech with Modbus ADAM-4068
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ADAM-4068-C | Модуль введення-виведення Advantech ADAM-4068, 8-channel Relay, RS485, Modbus | 7 869,1 |
The ADAM-4068 relay module is controlled remotely and store configuration data in EEPROM. The ADAM-4068 provides 4/8 channels, half being Form A and the rest being Form C. These modules are excellent for on/off control or low-power switching applications.
- 8ch relay
- Protocols:Modbus RTU, ASCII
- Watchdog timer to recover the system
Additional information
General |
|
| Certification | FCC, CE |
| Connectors | 2 x plug-in terminal blocks (#14 ~ 28 AWG) |
| Power Consumption | n 1 W @ 24 V DC typ. 1.7 W @ 24 V DC max |
| Watchdog Timer | System (1.6 second) & Communication |
| Supported Protocols | ASCII command and Modbus/RTU |
Relay Output |
|
| Breakdown Voltage | 500 VAC (50/60 Hz) |
| Channels |
|
| Contact Rating (Resistive) | 0.5 A @ 120 VAC 0.25 A @ 240 VAC 1 A @ 30 VDC 0.3 A @ 110 VDC |
| Initial Insulation Resistance | 1 GΩ min. at 500 VDC |
| Relay off Time (Typical) | 4 ms |
| Relay on Time (Typical) | 3 ms |
| Maximum Operating Speed | 50 operations/min (at related load) |
