Capacity Touch
Extended T range
Input 24V DC
IP66
LAN
Screen 16:9

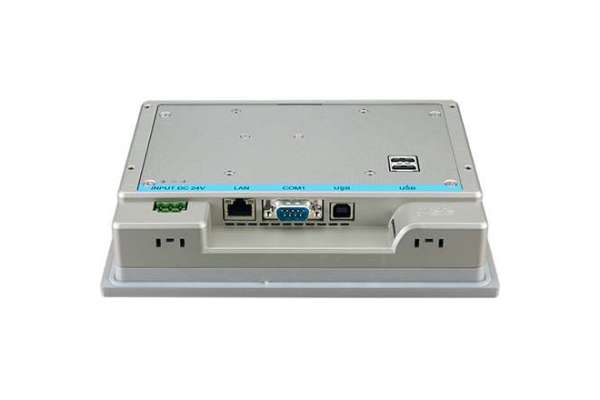

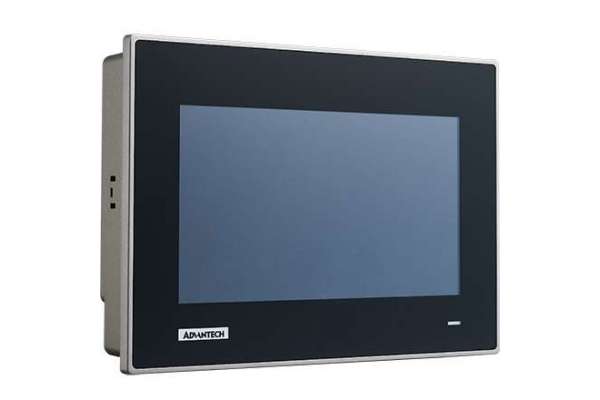

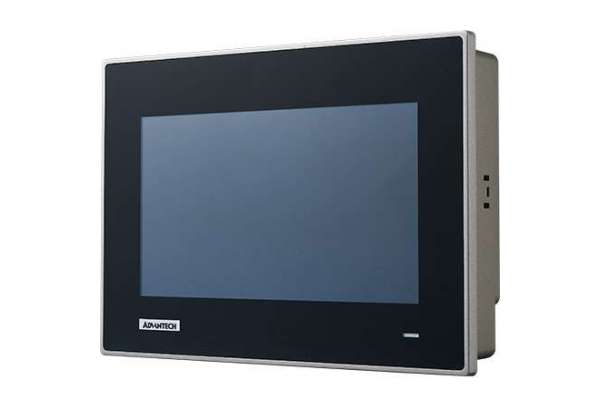

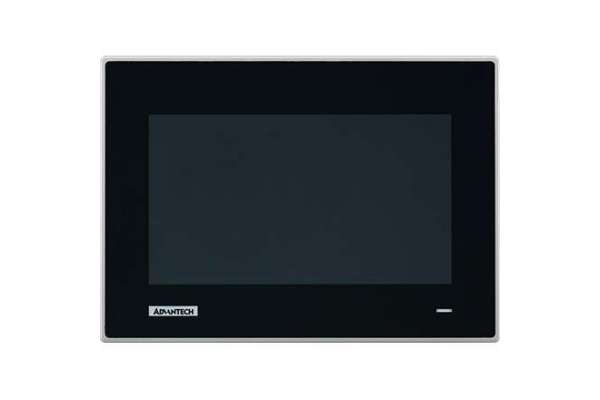

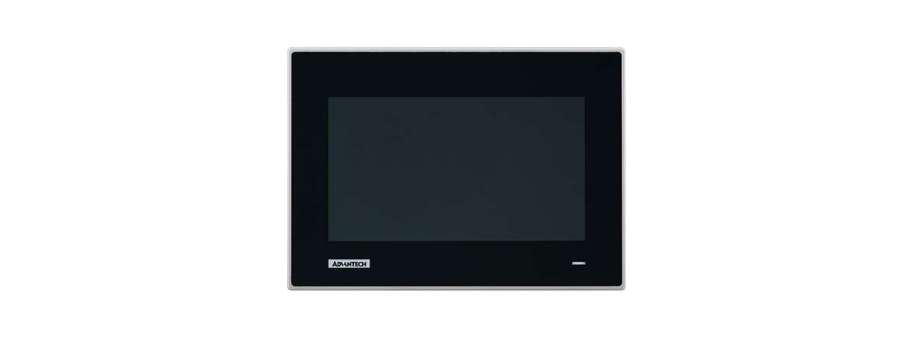

7" Touch Panel Computer with ARM Cortex™-A9 Processor Advantech TPC-71W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| TPC-71W-N10PA | Панель оператора Advantech TPC-71W, 7" WVGA, Cortex A9, 1G RAM, 8G DDR, Dual Core | 33 401,8 | Доступно |
| TPC-71W-N21PA | Панель оператора Advantech TPC-71W, 7" WVGA, Cortex A9, 2G RAM, 8G DDR, Quad core | 35 953,0 |
TPC-71W is a compact touch panel computer equipped with an NXP® i.MX 6 Cortex™-A9 dual/quad-core processor, 7" TFT LCD display, multi-touch glass sensor, 2 GB of DDR3L RAM, and 8 GB of eMMC storage. To ensure stable operation in harsh industrial environments, TPC-71W supports a wide operating temperature range (-20 ~ 60 °C /-4 ~ 140 °F) and VESA mounting and features an IP66-rated front panel that protects against water and dust ingress. For web-based operations, TPC-71W offers 10/100/1000 Mbps LAN that supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC Tools and browsers enable rapid Web application development and easy configuration. Finally, TPC-71W supports various OS including Linux Yocto, Linux Ubuntu with full QT graphics, and Android to ensure easy deployment for diverse applications.
- NXP® ARM® Cortex™-A9 i.MX6 dual/quad-core processor
- 7" 16:9 WSVGA LCD with multi-touch P-CAP control and true-flat IP66-rated front panel
- Up to 2 GB DDR3L RAM and 8 GB eMMC storage onboard
- 10/100/1000 Mbps LAN with IEEE 802.3at PoE-PD support
- 1 MB FRAM backup memory for unexpected power interruptions
- Serial port with 120Ω termination resistor that supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and VNC tool for rapid Web App development
- Supports Linux Yocto, Linux Ubuntu and Android
- Optional NFC and mPCIe expansion modules
- Compatible with VESA and panel mounting
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Additional information
Part Number |
TPC-71W-N10PA |
TPC-71W-N21PA |
General |
||
| Certifications | BSMI, CCC, CE, FCC Class A, UL | BSMI, CCC, CE, FCC Class A, UL |
| Dimensions | 271.5 x 213.5 x 43.2 mm (10.69" x 8.41" x 1.7") | 271.5 x 213.5 x 43.2 mm (10.69" x 8.41" x 1.7") |
| Cut-out Dimensions | 192 x 138.5 mm (7.56" x 5.45") | 192 x 138.5 mm (7.56" x 5.45") |
| OS Support | Linux Yocto 2.1, Linux Ubuntu 16.04 and Android 6 | Linux Yocto 2.1, Linux Ubuntu 16.04 and Android 6 |
| Power Input | 24VDC ±10% | 24VDC ±10% |
| Power Consumption | 9W (Typical) | 9W (Typical) |
| Enclosure Housing | Die-cast aluminum alloy front bezel; PC + ABS rear housing | Die-cast aluminum alloy front bezel; PC + ABS rear housing |
| Mounting | Panel, VESA | Panel, VESA |
| Weight (Net) | 1.2 kg (2.65 lbs) | 1.2 kg (2.65 lbs) |
System Hardware |
||
| CPU | NXP® ARM® Cortex™-A9 i.MX6 dual/quad-core | NXP® ARM® Cortex™-A9 i.MX6 dual/quad-core |
| Battery Backup Memory | 1 MB | 1 MB |
| Memory | 1 GB DDR3L RAM | 2 GB DDR2 SDRAM |
| Storage | 8 GB eMMC onboard | 8 GB eMMC onboard |
| Power-On LED | Yes | Yes |
Communications |
||
| Serial Port | 1 x DB9 selectable mode for RS-232/485 and CAN 2.0 B | 1 x DB9 selectable mode for RS-232/485 and CAN 2.0 B |
| Ethernet | 1 x RJ45 with 10/100/1000 Mbps LAN supporting IEEE 802.3af PoE /802.3at PoE+ PD standard | 1 x RJ45 with 10/100/1000 Mbps LAN supporting IEEE 802.3af PoE /802.3at PoE+ PD standard |
| Interface | 1 x USB 2.0 Type-B Client;2 x USB 2.0 Type-A Host;1 x Micro SD | 1 x USB 2.0 Type-B Client;2 x USB 2.0 Type-A Host;1 x Micro SD |
LCD Display |
||
| Display Type | WSVGA TFT LCD | WSVGA TFT LCD |
| Max. Resolution | 1024 x 600 | 1024 x 600 |
| Max. Colors | 16.7M | 16.7M |
| Luminance (cd/m2) | 400 | 400 |
| Viewing Angle (H/V°) | 170/170 | 170/170 |
| Backlight Life | LED, 50,000 | LED, 50,000 |
| Dimming | Adjustable by touch panel | Adjustable by touch panel |
| Contrast Ratio | 800:1 | 800:1 |
Display |
||
| Size | 7" | 7" |
Touchscreen |
||
| Light Transmission | Transmission above 85% | Transmission above 85% |
| Resolution | Linearity | Linearity |
| Touch Type | 5-wire, analog resistive | 5-wire, analog resistive |
Environment |
||
| Temperature (Operating) | -20 ~ 60°C (-4 ~ 140°F) | -20 ~ 60°C (-4 ~ 140°F) |
| Temperature (Storage) | -30 ~ 70°C (-22 ~ 158°F) | -30 ~ 70°C (-22 ~ 158°F) |
| Humidity (Operating) | 10 ~ 90% RH @ 40°C, non-condensing | 10 ~ 90% RH @ 40°C, non-condensing |
| Ingress Protection | Front panel: IP66 | Front panel: IP66 |
| Vibration Protection | Operating, radom vibration 1 Grms (5 ~ 500 Hz) | Operating, radom vibration 1 Grms (5 ~ 500 Hz) |
