Extended T range

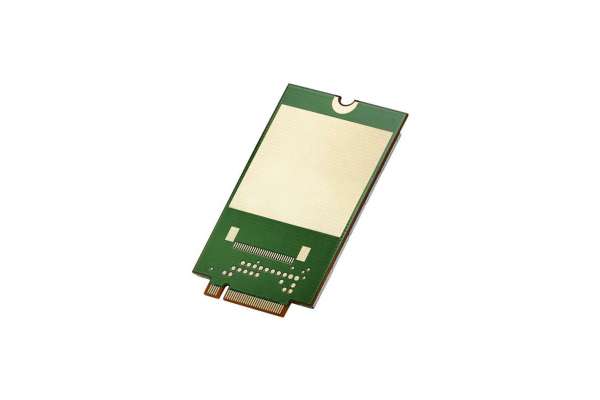

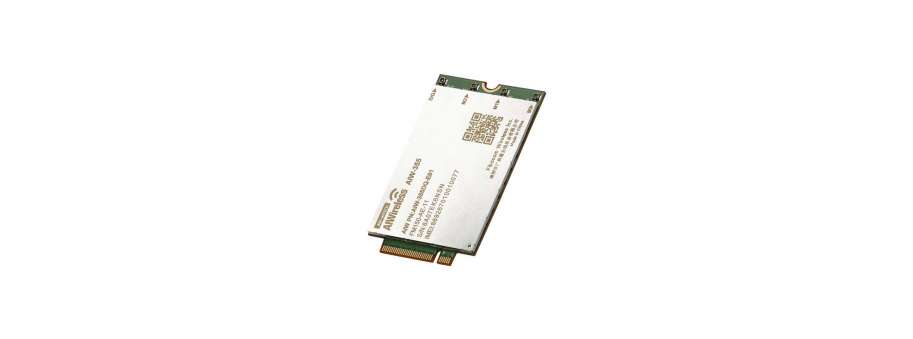

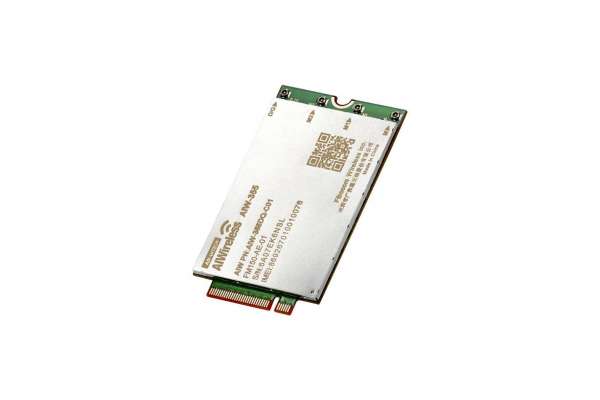

Highly-integrated 5G WWAN module with M.2 3052 Key-B form-factor Advantech AIW-355

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Advantech AIW-355 is a highly integrated 5G WWAN module that uses a M.2 form-factor interface. It supports 5G NR SUB6/LTE FDD/LTE TDD/WCDMA systems and can be applied to most mobile carriers’ cellular networks.

  • 5G NR SUB6/LTE FDD/LTE TDD/WCDMA systems
  • Max UL peak rate of 900Mbps
  • Max DL peak rate 2.5 Gbps NR Sub6 EN-DC
  • UL Max support 2 MIMO
  • DL Max support 4 MIMO
  • Normal operating temperature: -30 ~ 75 °C (-22 ~ 167 °F)
  • Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)
  • Extend operating temperature: -40 ~85 °C (-40 ~ 185 °F)
  • GNSS, GPS/GLONASS/Galileo/Beidou/QZSS

Additional information

Band

AIW-355DQ-E01

  • NR: n1,n3,n5,n8,n20, n28, n38,n41, n77, n78, n79
  • LTE FDD: Band 1,3,5,7,8,19,20,28
  • LTE TDD: Band 38,40,41,42,43
  • WCDMA: B1, 3, 5, 8,19 GNSS: support GPS, GLONASS, Galileo, BDS, QZSS

AIW-355DQ-C01

  • NR: n1, n28, n41, n77, n78, n79
  • LTE FDD: Band 1,2,3,5,7,8
  • LTE TDD: Band 34,39,40,41
  • WCDMA: B1, 2, 5, 8 GNSS: support GPS, GLONASS, Galileo, BDS, QZSS

AIW-355DQ-N01

  • NR: n2, n5, n7, n12, n14, n25, n41, n48, n66, n71, n78
  • LTE FDD: Band 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 66, 71
  • LTE TDD: Band 41, 42, 43, 48] LAA Band 46 Receiver only
  • WCDMA: B1, 2, 4, 5, 8 GNSS: Support GPS, GLONASS, BDS, Galileo, QZSS

Main Chipset

 QUALCOMM SDX55 QUALCOMM SDX55 QUALCOMM SDX55
Antenna 4pcs X 5G Antenna, or 3pcs X 5G Antenna + 1pcs X GNSS antenna 4pcs X 5G Antenna, or 3pcs X 5G Antenna + 1pcs X GNSS antenna 4pcs X 5G Antenna, or 3pcs X 5G Antenna + 1pcs X GNSS antenna
Data Throughput
  • Max DL peak rate 2.5 Gbps NR Sub6 EN-DC
  • Max UL peak rate of 900Mbps
  • Max DL peak rate 2.5 Gbps NR Sub6 EN-DC
  • Max UL peak rate of 900Mbps
  • Max DL peak rate 2.5 Gbps NR Sub6 EN-DC
  • Max UL peak rate of 900Mbps
Interface USB 3.1 USB 3.1 USB 3.1
Operation Voltage 3.135 ~ 4.4V, Typical 3.8V 3.135 ~ 4.4V, Typical 3.8V 3.135 ~ 4.4V, Typical 3.8V
Power Consumption 2.5A 2.5A 2.5A
O.S Supported Windows 10, Linux (Ubuntu 20.04) Windows 10, Linux (Ubuntu 20.04) Windows 10, Linux (Ubuntu 20.04)
Temperature Ranges
  • Normal operating temperature: -30 ~ 75 °C
  • Storage temperature: -40 ~ 85 °C
  • Extend operating temperature: -40 ~85 °C
  • Normal operating temperature: -30 ~ 75 °C
  • Storage temperature: -40 ~ 85 °C
  • Extend operating temperature: -40 ~85 °C
  • Normal operating temperature: -30 ~ 75 °C
  • Storage temperature: -40 ~ 85 °C
  • Extend operating temperature: -40 ~85 °C
Dimensions (L x W x H) 30 x 52 x 2.3 mm/1.18 x 2.04 x .09 in (B-key) 30 x 52 x 2.3 mm/1.18 x 2.04 x .09 in (B-key) 30 x 52 x 2.3 mm/1.18 x 2.04 x .09 in (B-key)
