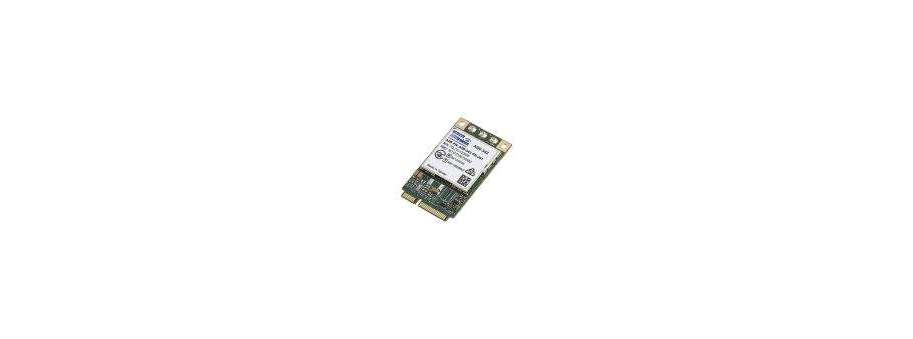

LTE Cat4+GNSS, Full-size mini-PCIe form factor, USB communication interface, with SIM Slot Advantech AIW-343

Advantech AIW-343 is a 4G LTE CAT4 module, and supports TDD LTE/FDD LTE/WCDMA/GSM and GPS. It has SIM slot on module.

  • 4G/ LTE Cat.4, WCDMA/GSM/GPRS/EDGE
  • LTE Cat4.: Max UL to 50Mbps
  • LTE Cat4.: Max DL to 150Mbps
  • Operating temperature: Normal: : -20°C ~ +55°C Extended: -40°C ~ +85°C
  • With GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS
  • With SIM slot

Additional information

Main Chipset Qualcomm MDM9X07
Antenna 2 X LTE Antenna Coaxial Connectors + 1 X GPS antenna connector
Band

AIW-343FQ-E01

  • 4G: Band 1, 3, 7, 8, 20, 28A
  • 3G: Band 1, 3, 8
  • 2G: Band 3, 8

AIW-343FQ-J01

  • 4G: Band 1, 3, 5, 8, 9, 18, 19, 26, 28
  • 3G: Band 1, 5, 6, 8, 19

AIW-343FQ-N01

  • 4G: Band 2, 4, 5, 12, 13, 14, 66, 71
  • 3G: Band 2, 4, 5
Data Throughput 4G/ LTE Cat.4 (LTE: 150Mbps DL, 50Mbps UL)
Interface USB 2.0
Operation Voltage 3.3V~3.6V (3.3V recommended)
Power Consumption 890mA
Supported O.S Windows10, Linux
Temperature Ranges

Operation:

  • Normal: -20°C ~ +55°C
  • Extended: -40°C ~ +85°C
Dimensions (L x W x H) 50.95 x 29.9 x 3.2 mm / 2 x 1.17 x 0.125 in (Version with SIM holder : 4.62 mm / 0.18 in)
