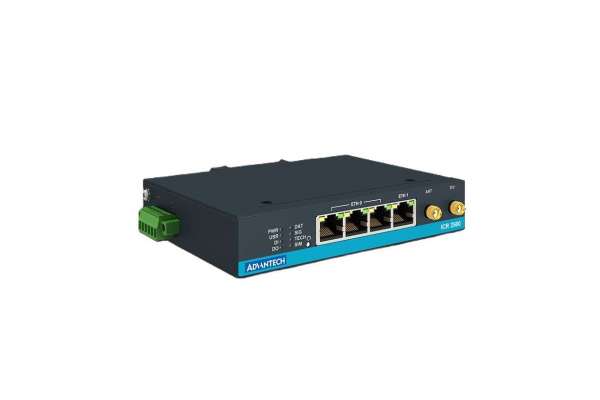

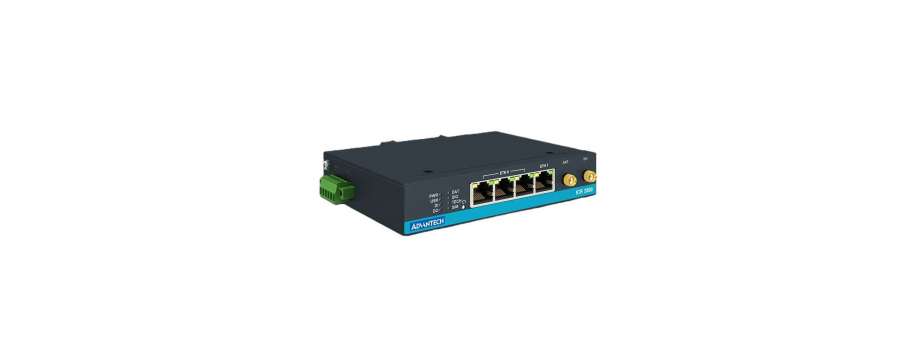

4G Entry Level Industrial Router with 4× Ethernet 10/100 Mbps (3+1 RJ45) Advantech ICR-2531
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-2531 | Мережевий рутер Advantech ICR-2531 EMEA cat4,4xETH, NOACC | 18 975,4 | |
| ICR-2531W | Cellular Router, Cat4, EMEA, 4x ETH, WIFI | 22 613,6 | Доступно |
Industrial cellular router ICR-2531 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. Optional built-in WiFi 802.11 ac,b,g,n with AP, Client and Multirole modes are available. The router is equipped with four Ethernet ports while three are switched and one is separated. Both 3× ETH0 and 1× ETH1 ports may be independently configurable as LAN or WAN interfaces. The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx, and others are supported on the router.
- LTE Cat.4 with 3G/2G fallback
- 2× SIM for redundancy
- 4× Ethernet 10/100 Mbps (3+1 RJ45)
- 1× DI, 1× DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
- Optional WiFi 802.11n
Additional information
System |
|
| CPU | ARM926EJ-S, 600 MHz |
| Memory |
|
| Watchdog | HW Watchdog |
| RTC | Battery backup RTC |
Interfaces |
|

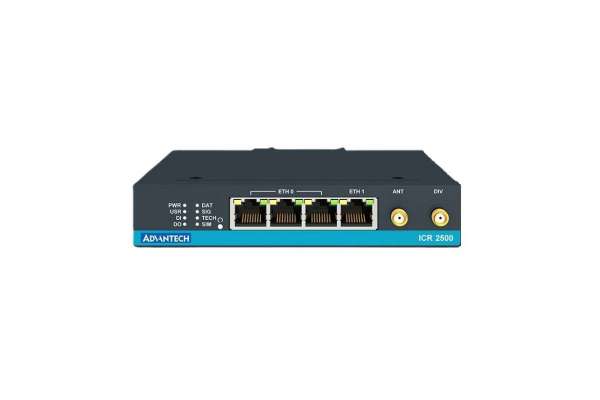

| Ethernet | 4× Ethernet (3+1), RJ45, 10/100 Mbps, 1.5 kV |
| I / O |
|
| Reset Button | Reboot / Factory reset |
| LED Indicators | System, Signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, Input, Output, User, ETH |
Environmental |
|

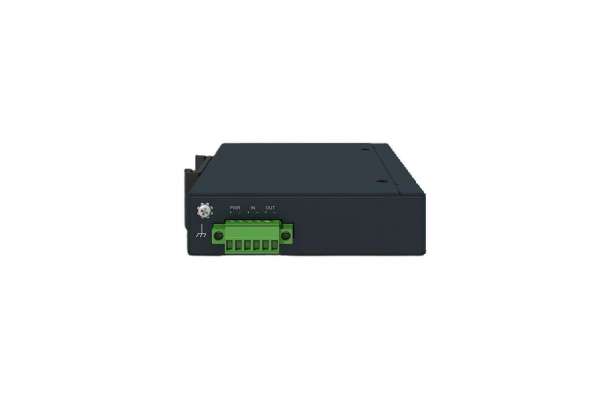

| Power Supply | 9 – 48 V DC (6-pin terminal block together with I/O) |
| Consuption |
|
| Operating Temperature | - 40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5 to 95 %, non-condensing |
| IP Cover | IP30 |
Physical Characteristics |
|
| Dimensions | 130 mm x 95 mm x 25 mm |
| Enclosure | Metal Case, Grounding Screw |
| Mounting | Wall mount, * Optional DIN Rail mount |
| Weight | 375 g |
WiFi - ICR-2531W |
|
| Antenna | 1× R-SMA connector |
| Standards | IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz |
| Security | WEP, TKIP, AES, WPA, WPA2, WPA3, 802.1X |
| Modes | Access Point (up to 8 clients), Station, Multirole STA & AP |
Cellular Interface |
|
| SIM Slots | 2× SIM (Micro SIM – 3FF) |
| Antennas | 2× SMA connector (1× Main, 1× Diversity) |
| LTE Parameters |
|
| HSPA+/UMTS Parameters |
|
| EDGE/GPRS Parameters |
|
Standards & Regulations |
|
| Radio | EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 893, EN 300 328 |
| EMC | ETSI EN 301489-1, ETSI EN 301489-17, ETSI EN 301489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 61000-6-2, IEC 61000-6-3, EN 55032 |
| Safety | EN IEC 62 368-1, IEEE 802.3 |
| Transportation | E-mark |
| National | CE, UKCA |
| Mechanical | EN 60529 |
| Climatic | EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30 |
| Environmental | REACH, RoHS3, WEEE |
