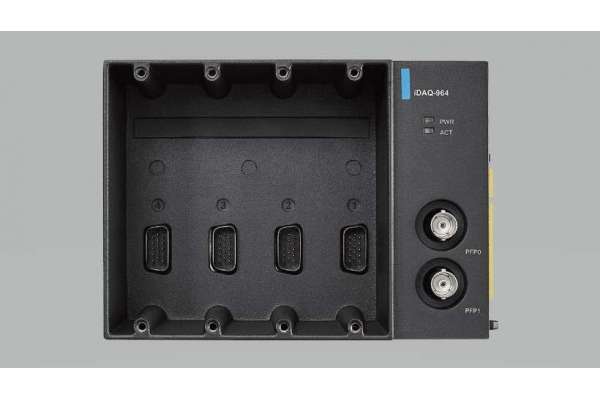

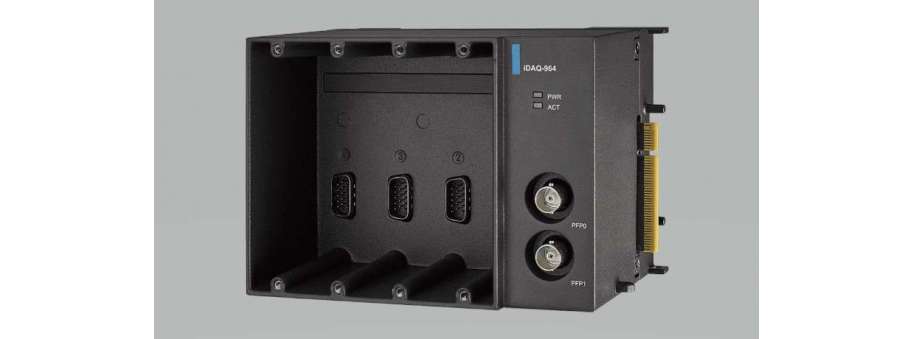

4-slot Industrial DAQ Chassis Module for AMAX-5000 iDAQ-964

Industrial DAQ module chassis for controllers, expandable via additional slice modules AMAX-5000 Advantech iDAQ-964

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
IDAQ-964-AE	4-slot iDAQ Chassis Module for AMAX-5000	50 785,8

• PCIe interface connecting to AMAX-5000 series controllers
• LED status indicators
• 4 iDAQ slots
• 2 programmable function pin for timing signal (trigger, clock) input/output

Additional information

Programmable Function Pin
Channels	BNC x 2
Direction	Input or output, software configurable
Input level	Logic high: +3.5 V min. Logic low: +1.5 V max.
Input protection voltage	+6.5 V max, -0.5 V min.
Pull-down resistor	10 kΩ
Input signal frequency	10 MHz max.
Response time	20 ns max
Debounce filter	40 ns ~ 168 ms, software configurable
Output logic level	Logic high: +4.5 V min., 20 mA source max. Logic low: +0.5 V max., 20 mA sink max.
Power Requirement
Power Input	3.3V and 12V via PCI express BUS from AMAX controller
Power Consumption	24 W max., including modules
Mechanical
Module dimensions	139.5 x 84.2 x 100 mm (5.49” x 3.31” x 3.94”)
Weight	720 g
Installation	DIN Rail Mount
Environment
Operating temperature	-10 to 60° C (-4 to 140° F)
Storage temperature	-40 to 85° C (-40 to 185° F)
Operating humidity	10% to 90% RH, non-condensing
Storage humidity	5% to 95% RH, non-condensing
Vibration	1 Grms, random, 5 ~ 500 Hz, 1hr/axis
Shock	10G, half sine, 11 ms
Certification
EMC	CE, FCC
Safety	CB, UL
