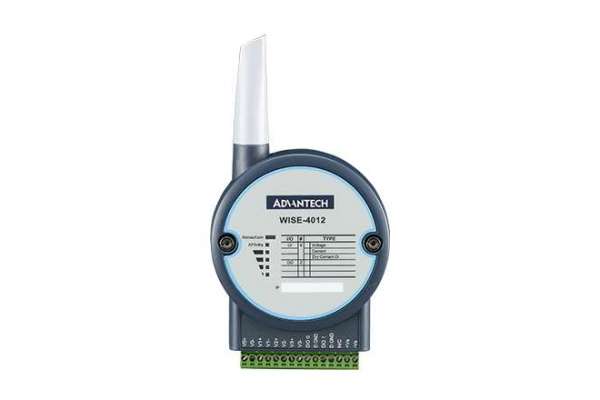

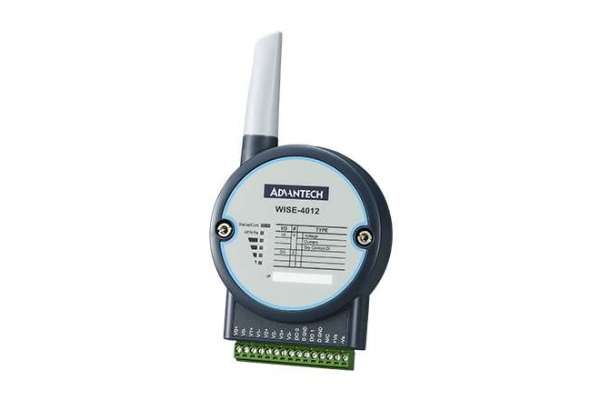

4-ch Universal Input and 2-ch Digital Output IoT Wireless I/O Module Advantech WISE-4012
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-4012-AE | Бездротовий Wi-Fi модуль Advantech 4AI/2DO IoT Wireless I/O Module | 9 328,1 |
Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided. The WISE-4012, an IoT wireless I/O module with 4-ch universal input and 2-ch digital output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.
- 2.4 GHz IEEE 802.11b/g/n WLAN
- Supports both wireless client and server modes that can be accessed directly without AP or router
- Supports mobile device web configuration with HTML5 without the platform limitation
- Supports file-based cloud storage (preliminary) and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports 10~30VDC power with reverse protection
- Supports 3000 Vrms isolation protection with dual watchdog timer for system and communication
Additional information
|
Part Number |
WISE-4012-AE |
| Digital Input | |
|
Inverted DI Status |
Support |
|
Isolation |
3,000 Vrms |
|
Keep/Discard Counter Value when Power Off |
Support |
| Frequency Input |
0.1 ~ 2Hz |
|
Counter Input |
2Hz (32 bit + 1 bit overflow) |
|
Channels |
Shared with AI |
|
Logic level |
Dry contact: Logic 0: Open, Logic 1: Close to GND |
| Digital Output | |
|
Channels |
2-ch (Sink Type) |
|
Isolation |
3,000 Vrms |
|
Output Rating (Resistive Load) |
Open collector to 30 V, 400 mA max. |
|
Pulse Output |
5 kHz |
| General | |
|
Certifications |
CE, FCC, R&TTE, NCC, SRRC, RoHS, KC |
|
Protocol |
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT |
|
Dimensions (W x H x D) |
80 x 148 x 25 mm |
|
Connectors |
Plug-in screw terminal block (I/O and power) |
|
Data Logger |
Up to 10,000 samples with RTC time stamp |
| Enclosure |
PC |
|
LED Indicators |
Status, Communication, Network Mode, Quality |
|
Mounting |
DIN 35 rail, wall, and stack |
|
Real-time Clock |
Yes, with battery backup |
|
Watchdog Timer |
System (1.6 second) & Communication (programmable) |
|
Web Server |
RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3 |
| Wireless Interface | |
|
Antenna Connector |
Reverse SMA |
|
Frequency Band |
2.4GHz |
|
IEEE Standard |
IEEE 802.11b/g/n |
|
Network Mode |
Infrastructure, Limited AP |
|
Outdoor Range |
110m (L.O.S.) |
|
Security |
WPA2 Personal & Enterprise |
| Environment | |
|
Operating Humidity |
20 ~ 95% RH (non-condensing) |
|
Operating Temperature |
-25 ~ 70°C (-13~158°F) |
|
Storage Humidity |
0 ~ 95% RH (non-condensing) |
|
Storage Temperature |
-40 ~ 85°C ( -40 ~ 185°F) |
| Power | |
|
Input Range |
10 ~ 30 VDC |
|
Power Consumption |
2.5 W @ 24 VDC |
|
Protection |
Power Reversal Protection |
| Analog Input | |
|
Accuracy |
Voltage: ±0.1% of FSR; Current: ±0.2% of FSR |
|
Burn-out Detection |
Yes (4~20 mA only) |
|
Channels |
4-ch |
|
Input Impedance |
Voltage: >10MΩ; Current: 120Ω |
|
Input Range |
±150mV, ±500mV, ±1V, ±5V, ±10V, 0~150mV, 0~500mV, 0~1V, 0~5V, 0~10V, 0~20mA, 4~20mA, ±20mA |
|
Isolation |
3,000 Vrms |
|
lnput Type |
V, A, Dry contact DI |
|
Over Voltage Protection |
±35 VDC |
|
Resolution |
16-bit |
|
Sampling Rate |
10 Hz (Total) |
