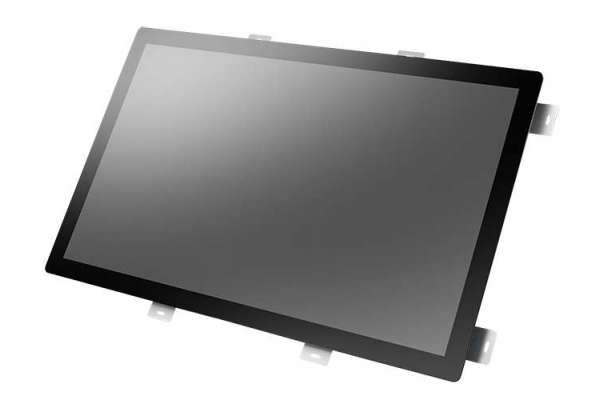

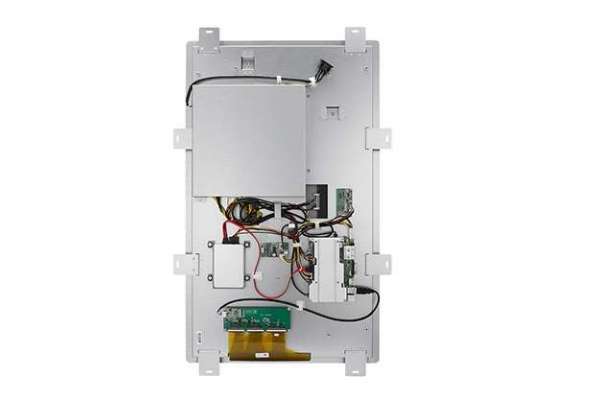

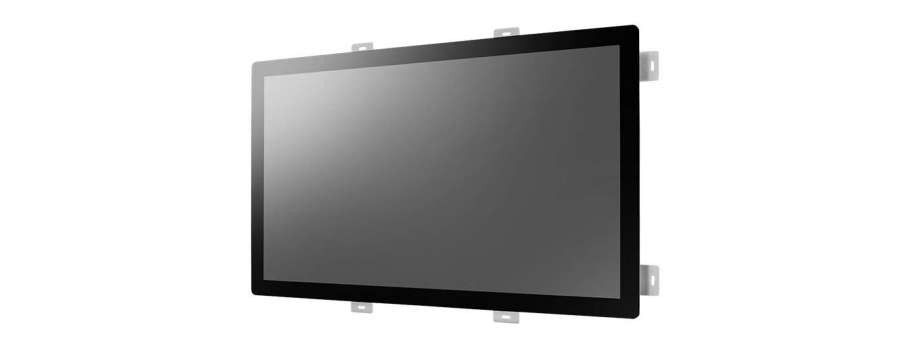

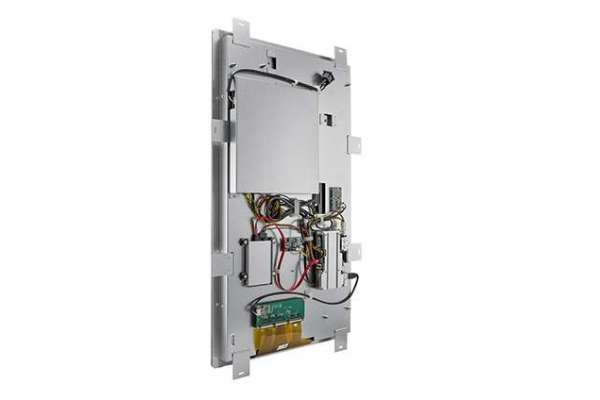

31.5" Open Frame Panel PC with Intel® Core™ i5-6300U Advantech UTC-232F

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-232FP-ATO0E 32"P T/S, Core i5 6300U, 4GB, OPF  184 152,0
UTC-232GP-ATO0E 32"P T/S, Intel N4200, 4GB, OPF  143 773,0

UTC-232 features one-piece solution and fan-less design that easy to embedded into kiosk chassis or wall mount type. Continuation of the advantage from UTC series, It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered.

  • Available for embedded into kiosk chassis and wall mount type
  • One-piece and fan-less design
  • Rich screen size and core from UTC series
  • Rich IO for extensional peripherals connection
  • Built-in Intel® Core™ i5-6300U (UTC-232F)
  • Built-in Intel® Pentium® N4200 (UTC-232G)
  • Providing Natural Viewing Experience with 31.5" Display
  • Could be take as monitor only

Additional information

Processor System

CPU

Intel® Core™ i5-6300U (UTC-232F)

Intel® Core™ i3-6100U (Available)*

Intel® Pentium N4200 (UTC-232G)

Intel® Atom E3950 (Available)*

Base Frequency 2.4GHz (Dual-Core)
  • 1.1 GHz (N4200/Quad-Core)
  • 1.6 GHz (E3950/Quad-Core)
Cache L3 Cache 3MB L2 Cache 2MB
Memory 2 x SO DIMM DDR3L 1600MHz up to 16 GB 1 x SO-DIMM DDR3L 1867 MHz
Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
I/O ports
  • 2 x USB 2.0 / 2 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x VGA
  • 1 x HDMI
  • 2 x USB 2.0 / 2 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x VGA
  • 1 x HDMI
Stereo Speaker 10W x 2 (optional) 10W x 2 (optional)
Bus expansion Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA
Dimensions (W x H x D) 760.80 x 455.25 x 57.6(mm) 760.80 x 455.25 x 57.6(mm)
Weight 15kg 15kg

OS Support

  • WES 7P 32bit
  • WES 7E 32bit
  • Windows Pro Embedded 7 SP1 64bit
  • WE8S 64bit
  • Windows Embedded 8.1 Industry Pro 64bit
  • Win 10 IoT Enterprise
  • Linux
  • Win 10 IoT Enterprise
  • Android 6.0/8.1/10
  • Linux

Environmental Specifications

Operating Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G
Shock 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC CE, FCC

Power Supply

Input Rating 12 V/7 A (84 W ITE Adapter) 12 V/7 A (84 W ITE Adapter)
Power consumption
  • Typical 45W
  • Max. 65W
  • Typical 45W
  • Max. 65W

LCD Display

Size/Type 31.5" TFT LCD with LED backlight 31.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080 1920 x 1080
Max. Color 16.7M 16.7M
Pixel Pitch (um) 363.75 x 363.75 363.75 x 363.75
Brightness (cd/m2 ) 300 (Optional 400) 300 (Optional 400)
View Angle 178°/178° 178°/178°

Touch Screen Option (PE/RE/GE)

Type Projected Capacitive. Glass Panel Projected Capacitive. Glass Panel
Light Transmission 80% ± 2% / 80% ± 5% / 90% 80% ± 2% / 80% ± 5% / 90%
Controller USB Interface / USB Interface / - USB Interface / USB Interface / -
