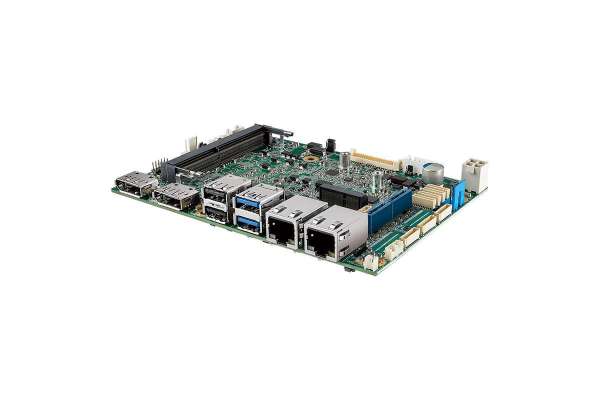

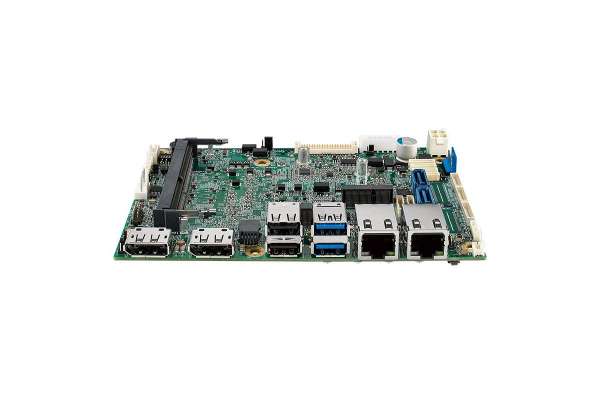

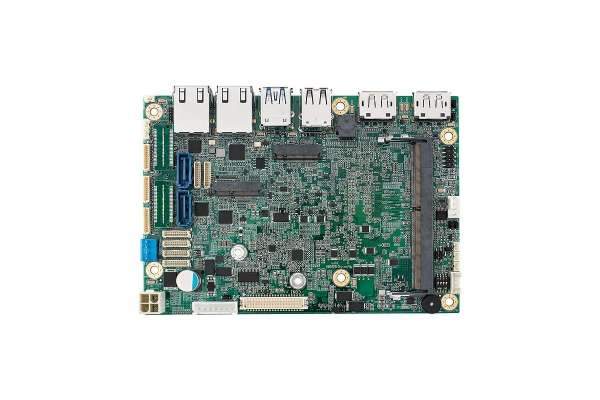

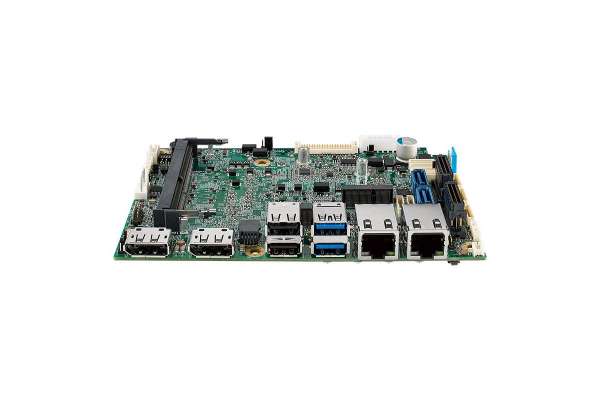

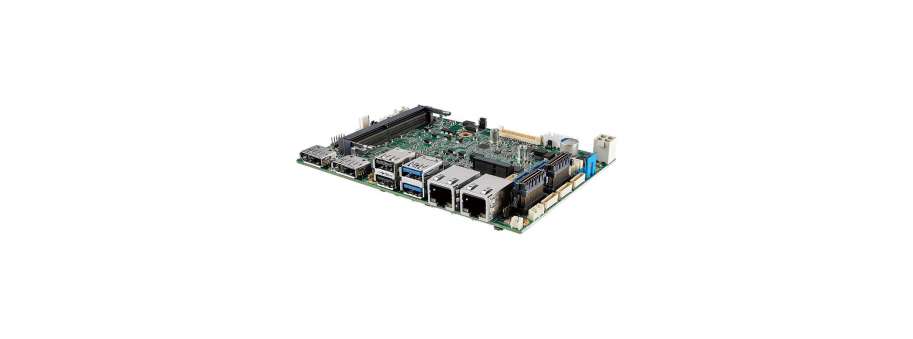

3.5" Single Board PC Vecow EMBC-5000

11th Gen Intel® Core™ i7/i5/i3 Processor (Tiger Lake) 3.5" Embedded Single Board Computer -40°C to 75°C Vecow EMBC-5000

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EMBC-5000-1145G7E16	Промисловий компактний комп'ютер Vecow EMBC-5000-1145G7E16 (onboard Intel® Core™ i5-1145G7E Processor (Tiger Lake-U), certified DDR4 16GB RAM)	93 009,0
EMBC-5000E-1185G7E	Промисловий одноплатний комп'ютер Vecow EMBC-5000 3.5" Embedded Single Board Computer, onboard Intel® Core™ i7-1185G7E Processor (Tiger Lake-U), 2 GigE LAN, 2 10G USB 3.1, 4 COM RS-232/422/485, 1 M.2 Key, 1 M.2 Key B, 16 GPIO, 9V to 55V DC-in, SUMIT A,B	95 266,5
EMBC-5000-1185G7E	Промисловий одноплатний комп'ютер Vecow EMBC-5000 3.5" Embedded Single Board Computer, onboard Intel® Core™ i7-1185G7E Processor (Tiger Lake-U), 2 GigE LAN, 2 10G USB 3.1, 4 COM RS-232/422/485, 1 M.2 Key, 1 M.2 Key B, 16 GPIO, 9V to 55V DC-in	91 654,5
EMBC-5000-1145G7E	Промисловий одноплатний комп'ютер Vecow EMBC-5000 3.5" Embedded Single Board Computer, onboard Intel® Core™ i5-1145G7E Processor (Tiger Lake-U), 2 GigE LAN, 2 10G USB 3.1, 4 COM RS-232/422/485, 1 M.2 Key, 1 M.2 Key B, 16 GPIO, 9V to 55V DC-in	79 915,5

Powered by Intel® Core™ i7/i5/i3 SoC (Tiger Lake UP3), fanless -40°C to 75°C operating temperature, all-in-one compact integrated features, full function SUMIT expansion, 9V to 55V power input, smart manageability, industrial grade reliability and flexible one-stop customization services, Vecow EMBC-5000 Series Embedded Single Board Computer (SBC) is your performance-driven solution for Telemedicine, Intelligent Transportation (ITS), Intelligent Vending, Robotic Control, Industry 4.0 and Internet of Things (IoT) applications.

• 11th Gen Intel® Core™ i7/i5/i3 processor (Tiger Lake UP3) delivers new generation system productivity than ever, up to 28W TDP
• Fanless -40°C to 75°C Operating Temperature
• DDR4 3200MHz memory, up to 32GB
• Intel® Iris® Xe Graphics supports dual DisplayPort and 1 LVDS display interfaces, up to 4K resolution
• Multiple USB supports up to 10Gbps data transfer
• 1 independent 2.5GigE LAN supports Intel® Time Sensitive Networking (TSN) for real-time data synchronization
• 1 GigE LAN supports iAMT, TPM 2.0 supported
• SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
• 4 COM RS-232/422/485, 2 SATA III, 1 M.2 Key E, 1 M.2 Key B
• Supports full function SUMIT A, B expansion
• 9V to 55V DC wide range Power Input
• Ignition Power Control
• Easy to customize for low-profile system applications
• One-stop SUMIT Expansion Design and Manufacturing Services

Additional information

System
Processor	Quad Core Intel® Core™ i7/i5/i3 Processor (Tiger Lake UP3)
Chipset	Intel® SoC (Tiger Lake)
BIOS	AMI
SIO	IT8786E
Memory	1 DDR4 3200MHz SO-DIMM, up to 32GB
OS	Windows 10, Linux
Graphics
Processor	Intel® Iris® Xe Graphics
Interface	DisplayPort 1 : Up to 4096 x 2304 @60Hz DisplayPort 2 : Up to 4096 x 2304 @60Hz LVDS : Dual channel 16-bit, up to 1920 x 1200
Ethernet
LAN 1	Intel® Ethernet Controller I219LM GigE LAN supports iAMT
LAN 2	Intel® Ethernet Controller I225-IT supports 2.5 GigE LAN
Audio
Audio Codec	Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
I/O Interface

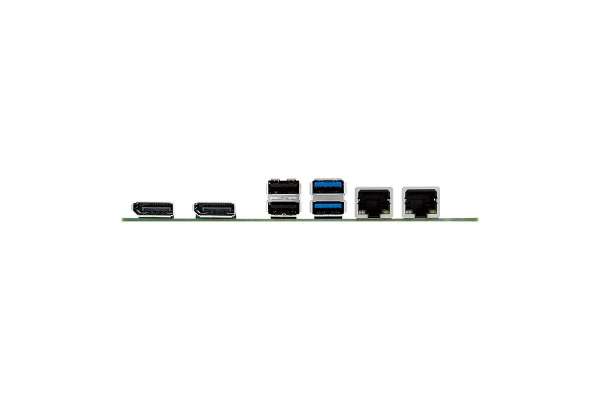

Front I/O	2 DisplayPort Connector 4 USB Connector 2 RJ45 Connector 1 Reset Button 1 Power LED 1 Wireless LED 1 HDD LED 1 WiFi LED
Internal I/O	4 COM RS-232/422/485 Connector 1 ATX 4-pin Power Connector 1 SUMIT A Connector (Optional) 1 SUMIT B Connector (Optional) 1 M.2 Key B Socket (2260/3042/3052,PCIex2/USB3(Default)/USB2) 1 M.2 Key E Socket (2230, PCIe/USB) 1 SIM Card Socket 1 DDR4 SO-DIMM Socket 1 LVDS Connector 1 LVDS Backlight Connector 2 USB 2.0 Wafer with 4 ports (Optional) 2 SATA Data Connector 1 SATA Power Connector 1 4-pin Fan Connector 1 GPIO Header 1 Power On/Off Header 1 Audio Header
Storage
SATA	2 SATA III (6Gbps)
M.2	1 M.2 Key B Socket (2260, PCIex2, share with expansion)
Expansion
SUMIT	1 SUMIT A Connector 1 SUMIT B Connector
M.2	1 M.2 Key B Socket (2260/3042/3052,PCIex2/USB3(Default)/USB2) 1 M.2 Key E Socket (2230, PCIe/USB)
Power
Power Input	9V to 55V DC-in
Power Interface	ATX Power Connector
Ignition Control	16 Mode (Internal)
Mechanical
Dimensions	146.0mm x 102.0mm (5.75" x 4.02")
Environment
Operating Temp.	-40°C to 75°C (-40°F to 167°F), @15W TDP CPU
Storage Temp.	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @75°C
EMC	CE, FCC
Others
TPM	Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
