24" TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor Cincoze CS-W124/P2002

Price and avalability

Partnumber Description Price VAT incl Avalability
CS-W124C-R10/P2002-i5-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interfa  131 188,0
CS-W124C-R10/P2002E-i5-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer,  132 591,0
CS-W124C-R10/P2002E-i5-E4-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer,  133 417,0
CS-W124C-R10/P2002E-i5-PI-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer,  133 417,0
CS-W124C-R10/P2002-i3-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interfa  124 005,0
CS-W124C-R10/P2002E-i3-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer,  125 326,0
CS-W124C-R10/P2002E-i3-E4-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer,  126 234,0
CS-W124C-R10/P2002E-i3-PI-R10 Модульний панельний комп'ютер Cincoze 24" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer,  126 234,0

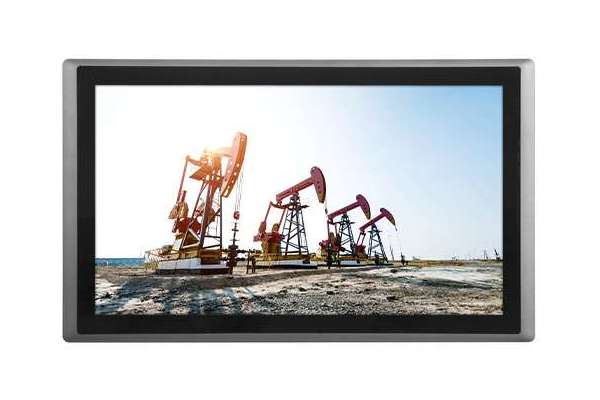

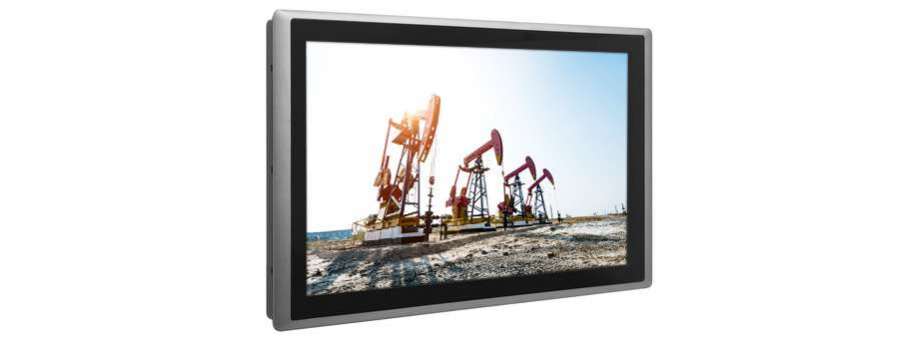

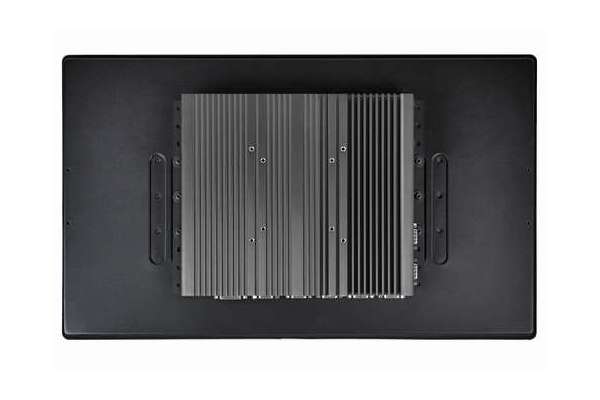

CS-W124C/P2002 Series is a 24” TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.

CS-W124C/P2002 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-W124C/P2002 Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module).

Furthermore, CS-W124C/P2002 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

  • 24" TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920 x 1080 Resolution
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
  • Integrated Intel® HD Graphics 520, Triple Display Support
  • 2x 2.5" SATA Drive Bay, 1x mSATA, and 1x CFast Socket
  • Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
  • PCI/PCIe Expandable Version Available (For P2002E only)

Additional information

Display

LCD Size 24” (16:9)
Max. Resolution 1920 x 1080 (Full HD)
Brightness (cd/m2) 1500
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF 50,000 hrs (LED Backlight)

Touch Screen

Touch Type Projected Capacitive

Physical

Dimension ( W x D x H ) 605 x 373 x 63.2 mm
Weight Information 6.64 kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Environment

Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -30°C to 80°C
Relative Humidity 80% RH @ 40°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System

Processor

Onboard 6th Intel® Core™ U processors (Skylake)

- Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)

- Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W

Memory
  • 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket
  • Support Un-buffered and Non-ECC Type up to 32 GB
BIOS AMI 64Mbit SPI BIOS

Graphics

Graphics Engine Integrated Intel® UHD Graphics 520
Maximum Display Output Supports Triple Independent Display
CDS 1x CDS Connector for Cincoze Display Module
VGA 1x VGA Connector(1920 x 1080 @60Hz), DB-15
DVI-D 1x DVI-D Connector (1920 x 1080 @ 60Hz)

Audio

Audio Codec Realtek® ALC888, High-Definition Audio
Speaker-out 1x Speaker-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45

- GbE1: Intel® I219LM

- GbE2: Intel® I210

USB 4x USB 3.2 Gen1 (Type A), 1x USB 2.0 (Type A)
Serial Port 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block

Storage

SSD/HDD 2x 2.5” HDD/SSD Bay, Support RAID 0/1 (Gen3)
mSATA 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
CFast 1x CFast Socket (Gen 3)

Expansion

Mini PCI Express 2x Full-size Mini-PCIe Sockets
PCI Express

For P2002E

  • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
  • maximum dimension of add-on card:100mm x 200mm (H x L)
SIM Socket 1 x Front Accessible SIM Socket
Universal Bracket 1x Universal I/O Bracket
CFM (Control Function Module) Interface 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
CDS (Convertible Display System) Technology 1x Convertible Display System (CDS) Interface, Compact PCI Connector

Power

Power Button 1x ATX Power On/Off Switch
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)
  • 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
  • 1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
Remote Power On/Off 1x Remote Power On/Off Connector, 2-pin Terminal Block

Physical

Dimension( W x D x H )

For P2002

254.5 x 220 x 54mm

For P2002E

254.5 x 220 x 72 mm

Weight Information

For P2002

2.92 kg

For P2002E

3.18 kg

Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS
Physical Design
  • Fanless Design
  • Jumper-less Design

Operating System

Microsoft® Windows® Windows® 10, Windows® 8.1, Windows® 7
Linux Linux® Kernel 4.4

Environment

Operating Temperature Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature -40°C to 85C
Relative humidity 95% RH @ 40˚C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
