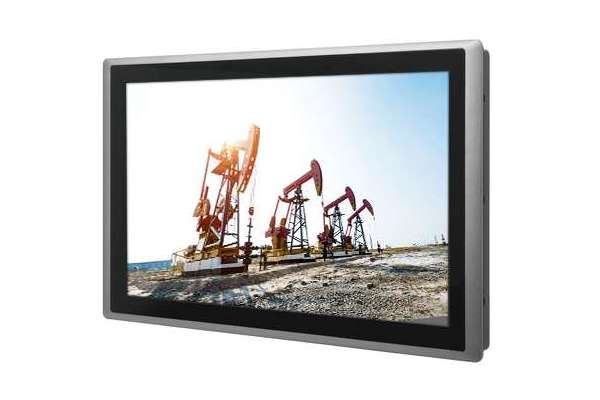

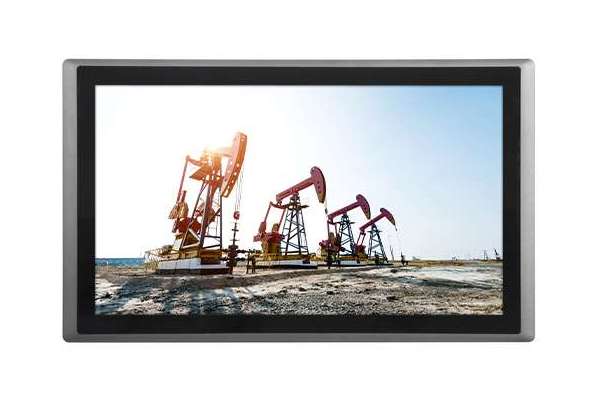

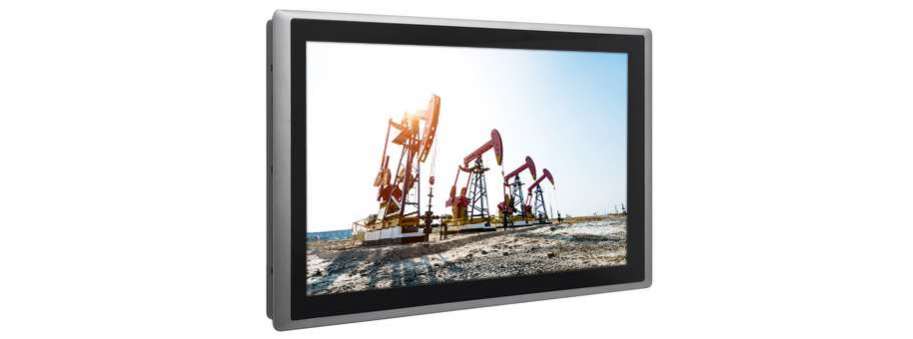

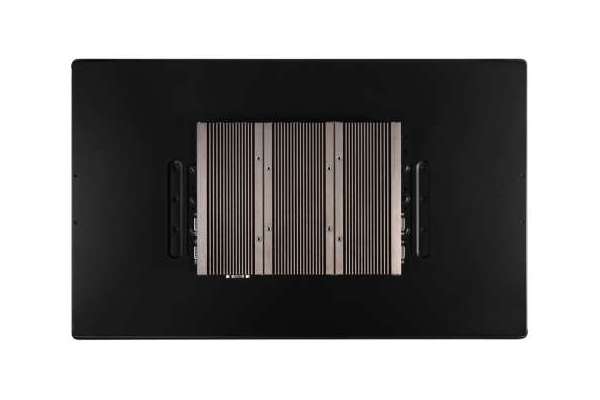

21.5" TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor Cincoze CS-W121C/P2102
The CS-W121C/P2102 Series is a 21.5” TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-W121C/P2102 Series is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. With its slim design, the CS-W121C/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-W121C/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-W121C/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (0 °C to 70 °C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-W121C/P2102 Series is appropriate for tough outdoor applications under direct sunlight.Furthermore, the CS-W121C/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
- 21.5" TFT-LCD with Ultra-high Brightness up to 1,000 nits and 1920 x 1080 Resolution
- Onboard 8th Generation Intel® Core™ U Series Processor
- 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
- Supports Triple Independent Display
- Integrated USB 3.2 Gen 2 supports up to 10Gbps
- M.2 E Key Socket for Wireless Module or Intel CRF Module
- Supports Ignition Sensing Function (IGN) (with optional CFM module)
- Supports 2x PoE+ Function (with optional CFM module)
- Wide Range Operating Temperature -20 °C to 70 °C
- Designed with Rugged Aluminum Die-casting Front Bezel
- True Flat IP65 Compliant Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- 2x Universal Bracket (For P2102E only)
Additional information
Display |
|
| LCD Size | 21.5” (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m2) | 1000 |
| Contrast Ratio | 5000 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) |
| Viewing Angle (H-V) | 178 / 178 |
| Backlight MTBF | 50,000 hrs (LED Backlight) |
Touch Screen |
Projected Capacitive |
Physical |
|
| Dimension ( W x D x H ) | 550 x 330.5 x 63.2mm |
| Weight Information | 5.56 kg |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel |
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | 0°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
System |
|
| Processor |
Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
|
| Memory |
|
Graphics |
|
| Graphics Engine | Integrated Intel® UHD Graphics 620 |
| Maximum Display Output | Supports Triple Independent Display |
| CDS | 1x CDS Connector for Cincoze Display Module |
| VGA | 1x VGA Connector(1920 x 1200 @60Hz) |
| DP |
1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz |
Audio |
|
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |

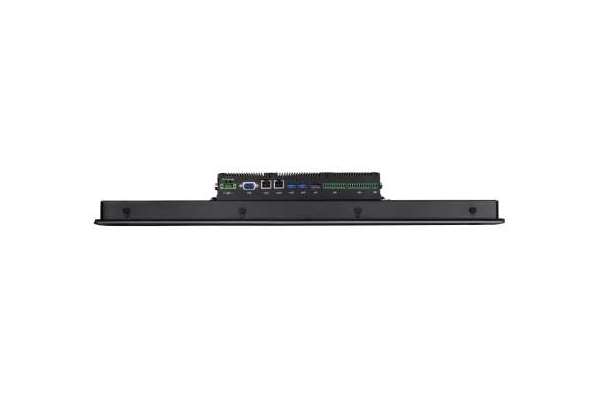

I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
|
| USB | 3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A) |
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 |
| DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block |
Storage |
|
| SSD/HDD | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 |
Expansion |
|
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets |
| PCI Express |
P2102: - P2102E: 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) |
| M.2 E Key Socket | 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
| SIM Socket | 1x Front Accessible SIM Socket |
| Universal Bracket |
P2102: - P2102E: 2x Universal I/O Bracket |
| CFM (Control Function Module) Interface | 2x CFM Interface for optional IGN or PoE Module Expansion |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface |
Physical |
|
| Dimension( W x D x H ) |
P2102: 254.5 x 190 x 41.5mm P2102E: 254.5 x 190 x 61 mm |
| Weight Information |
P2102: 2.2 kg P2102E: 2.7 kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
|
Mounting |
Wall / VESA / CDS / DIN Rail |
| Physical Design |
|
Operating System |
|
| Microsoft® Windows® | Windows®10 |
| Linux | Supports by project |
Environment |
|
| Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) |
| Storage Temperature | -40 °C to 70 °C |
| Relative humidity | 95% RH @ 70˚C (Non-condensing) |
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration |
P2102: Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) P2102E:
|
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| Safety | UL, cUL, CB, IEC, EN62368-1 |
