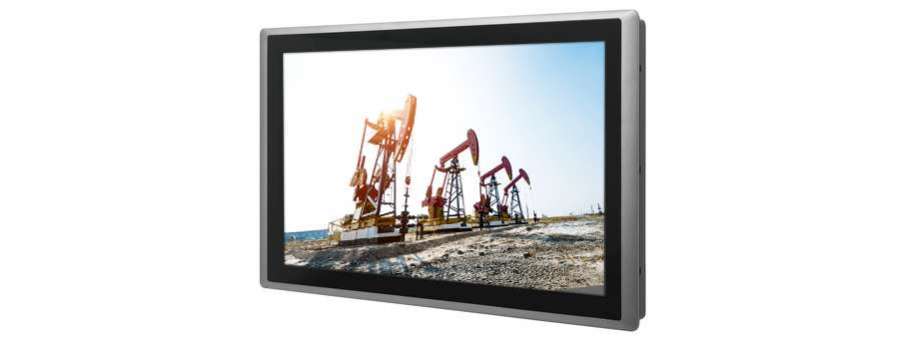

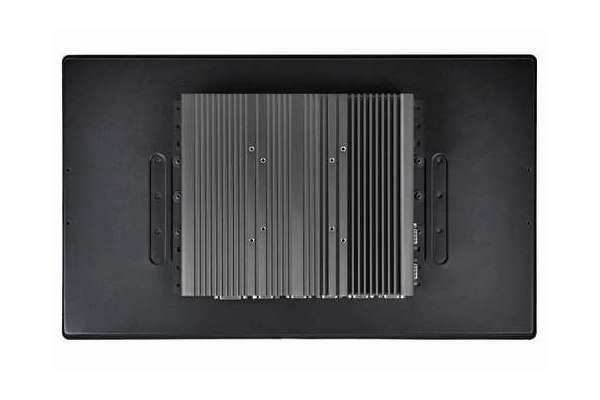

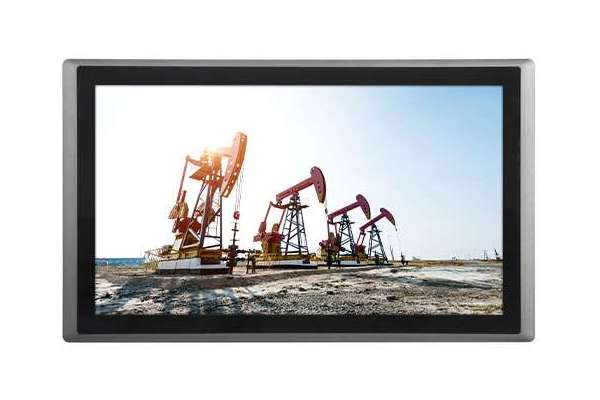

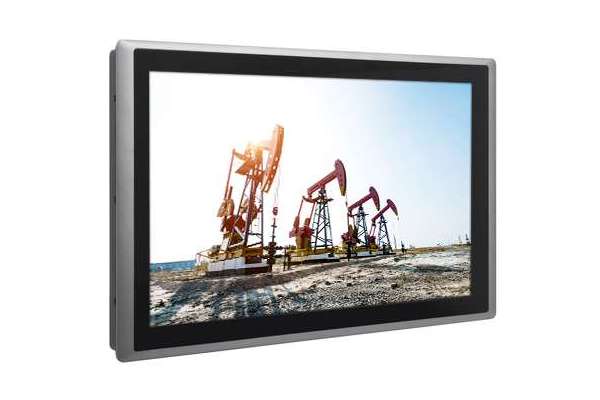

21.5" TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor Cincoze CS-W121C/P2002
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| CS-W121C-R10/P2002-i5-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Inter | 120 042,0 | |
| CS-W121C-R10/P2002E-i5-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer | 121 528,0 | |
| CS-W121C-R10/P2002E-i5-E4-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer | 122 354,0 | |
| CS-W121C-R10/P2002E-i5-PI-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer | 122 354,0 | |
| CS-W121C-R10/P2002-i3-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Inter | 112 447,0 | |
| CS-W121C-R10/P2002E-i3-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer | 113 850,0 | |
| CS-W121C-R10/P2002E-i3-E4-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer | 114 841,0 | |
| CS-W121C-R10/P2002E-i3-PI-R10 | Модульний панельний комп'ютер Cincoze 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer | 114 841,0 |
CS-W121C/P2002 Series is a 21.5” TFT-LCD sunlight readable touch panel PC offering 1,000 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-W121C/P2002 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-W121C/P2002 Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-W121C/P2002 Series is a truly rugged display system supporting wide range operating temperature (0°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
21.5" TFT-LCD with Ultra High Brightness up to 1,000 nits and 1920 x 1080 Resolution
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
- Integrated Intel® HD Graphics 520, Triple Display Support
- 2x 2.5" SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
- PCI/PCIe Expandable Version Available (For P2002E only)
Additional information
Display |
|
| LCD Size | 21.5” (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m2) | 1000 |
| Contrast Ratio | 5000 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) |
| Viewing Angle (H-V) | 178 / 178 |
| Backlight MTBF | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Type | Projected Capacitive |
Physical |
|
| Dimension ( W x D x H ) | 550 x 330.5 x 63.2mm |
| Weight Information | 5.56 kg |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel |
Environment |
|
| Front Panel Protection | IP65 Compliant |
| Operating Temperature | 0°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
System |
|
| Processor |
Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W |
| Memory |
|
| BIOS | AMI 64Mbit SPI BIOS |
Graphics |
|
| Graphics Engine | Integrated Intel® UHD Graphics 520 |
| Maximum Display Output | Supports Triple Independent Display |
| CDS | 1x CDS Connector for Cincoze Display Module |
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 |
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) |
Audio |
|
| Audio Codec | Realtek® ALC888, High-Definition Audio |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 |
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0 (Type A) |
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 |
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block |
Storage |
|
| SSD/HDD | 2x 2.5” HDD/SSD Bay, Support RAID 0/1 (Gen3) |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) |
| CFast | 1x CFast Socket (Gen 3) |
Expansion |
|
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets |
| PCI Express |
For P2002: - For P2002E:
|
| SIM Socket | 1 x Front Accessible SIM Socket |
| Universal Bracket | 1x Universal I/O Bracket |
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector |
Other Function |
|
| Instant Reboot | Support 0.2sec Instant Reboot technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Internal Speaker | AMP 2W + 2W |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down |
| Reset Button | 1x Reset Button |
| External Fan Connector | 1x External Fan Connector, 4-pin Terminal Block |
Power |
|
| Power Button | 1x ATX Power On/Off Switch |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC |
| Power Adapter (Optional) |
|
| Remote Power On/Off | 1x Remote Power On/O Connector, 2-pin Terminal Block |
Physical |
|
| Dimension( W x D x H ) |
For P2002: 254.5 x 220 x 54mm For P2002E: 254.5 x 220 x 72 mm |
| Weight Information |
For P2002: 2.92 kg For P2002E: 3.18 kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / VESA / CDS |
| Physical Design |
|
Reliability & Protection |
|
| Reverse Power Input | Yes |
| Over Voltage Protection |
|
| Over Current Protection | 15A |
| ESD Protection | +/-8kV (air), +/-4kV (contact) |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
Operating System |
|
| Microsoft® Windows® | Windows® 10, Windows® 8.1, Windows® 7 |
| Linux | Linux® Kernel 4.4 |
Environment |
|
| Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) |
| Storage Temperature | 40°C to 85C |
| Relative humidity | 95% RH @ 40˚C (Non-condensing) |
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
