Capacity Touch
IP65
Screen Size 21"
Standard T range
VGA
Wallmount

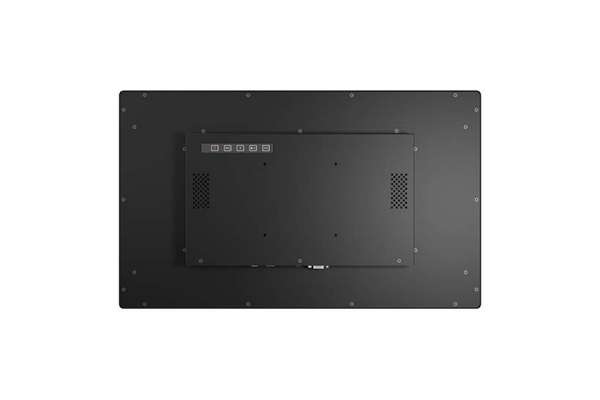

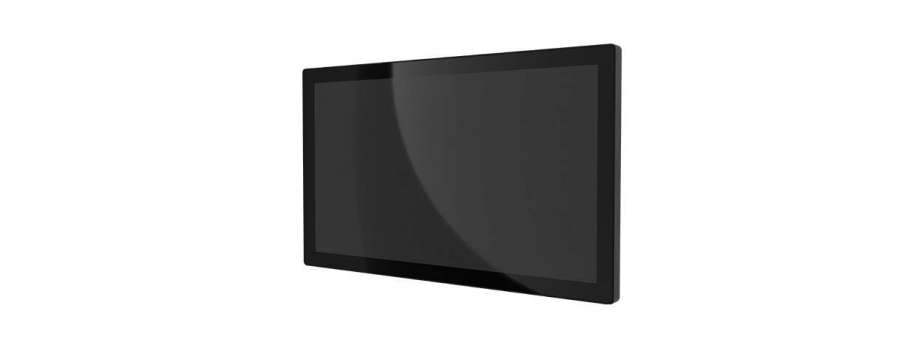

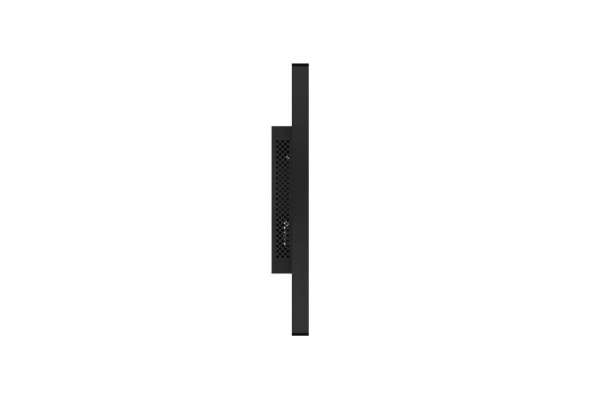

16:9 P-CAP Touchscreen Monitor with 1920x1080 Resolution (Non-Touch Option Available) Advantech USC-M20
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| USC-M20P-BST11 | 21.5"MNT,1920*1080,P-Cap,HDMI&VGA,speaker,blk,2Y | 53 099,5 |
USC-M20 series is touch display supporting capacitance multi touch and LED backlight, providing excellent picture quality with wide viewing angle and high resolution. Integrated PCT capacitance multi touch, it can achieve a flat surface appearance similar to iPad and excellent multi touch experience. It has a fashionable black aluminum oxide. It is the best partner in retail, catering, gaming, video game and medical industry.
- 21.5" TFT display in LED backlight
- Flat and bezel-free front P-CAP touch panel design
- Supports 100x100mm VESA mount, wall mount
- IP65 for front panel
- Designed with elegant full metal structure & aluminum bezel for outstanding image clarity
- Support 10-point touch function (PCAP technology)
Additional information
Display |
|
| Panel Resolution | 21.5" TFT LCD (LED backlight) /1920 x 1080 FHD |
| Brightness | 250 cd/m2 (500 cd/m2 Optional) |
| Touch Screen | P-Cap Touch |
| Contrast Ratio | 1000:1 |

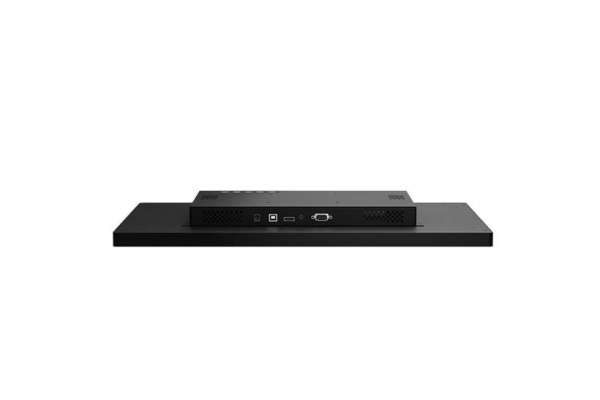

External I/O |
|
| Video in | VGA Port (DSUB-15) / HDMI |
| Audio in | 3.5mm Jack |
| USB | USB-B for touch function |
| DC-In | 12V DC in power jack |
Control Button |
|
| Power | Power on/off |
| Menu | OSD menu |
| Up | Selection up |
| Down | Selection down |
Others |
|
| Speaker | 3W (Optional) |
| Mount | VESA mount 100x100 mm |
| Adapter | AC-DC, AC100~240V 50/60hz, DC12V 3.3A, 5.5*2.5*10mm |
Mechanical & Environmental |
|
| Case Color | Black |
| Operation Temperature | 0 ~ 45 °C |
| Humidity | 10 ~ 90% @ 40 °C non-condensing |
| EMI / Safety | CCC/CB/FCC/CE |
| Packing Dimension | 632 x 436 x 155 mm |
| Weight | 7 kg / 8.5 kg |
