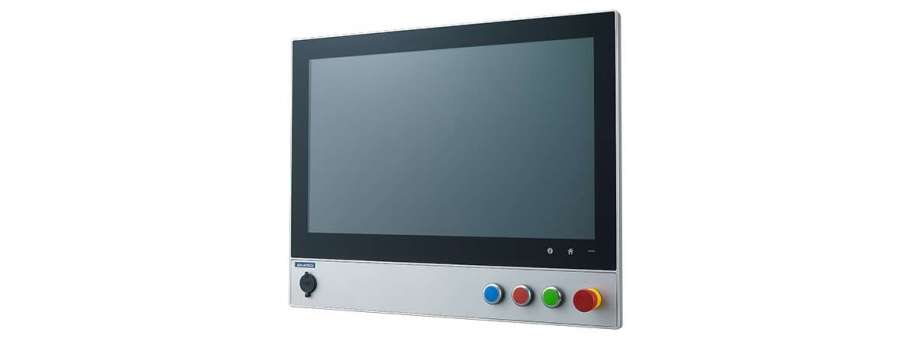

21.5" Integrated-Button Panel Computer Intel® Core™ i3-6100U dual-core, 2.3 GHz processor with all-round IP65 Advantech SPC-821
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| SPC-821-633AG | Панельний комп`ютер Advantech SPC-821, захист IP65 по колу, 21.5" (1920 x 1080), Intel Core i3-6100U 2.3GHz, RAM 8GB | 152 848,0 | |
| SPC-821-633AP | Панельний комп`ютер Advantech SPC-821, захист IP65 по колу, 21.5" IO Panel PC USB SKYLAKE I3-6100U with 3+1 push button | 179 642,0 |

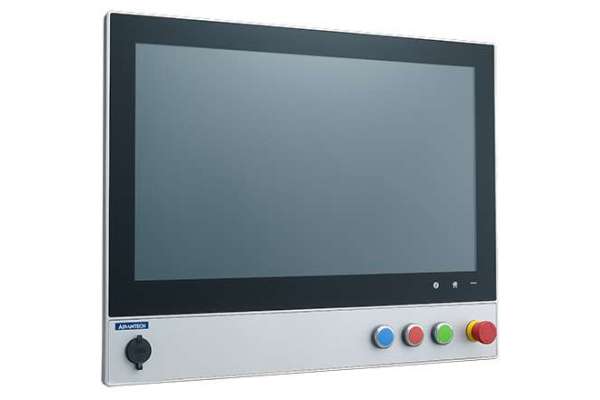

21.5" Integrated-button panel computer provides intuition operation and control
- 21.5" (Full) HD TFT LED LCD display
- Intel® Core™ i3-6100U dual-core, 2.3 GHz processor
- Supports the RAFI FS22+ Series pushbuttons
- Silicone-free enclosure with all-round IP65-rated protection
- Supports the CP 40 (Rittal) and CS-480 (Bernstein) support arm system standards
- Front-facing USB port and Reset button for easy access and maintenance
- PCAP multi-touch control
Additional information
|
Part Number |
SPC-821-633AG | SPC-821-633AP |
Environment |
||
| Humidity |
10 ~ 95% RH @ 40°C, non-condensing (Note: Tested for 48hrs) |
10 ~ 95% RH @ 40°C, non-condensing (Note: Tested for 48hrs) |
|
Storage Temperature |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
|
Operating Temperature |
0 ~ 55°C (32 ~ 131°F) |
0 ~ 55°C (32 ~ 131°F) |
|
Vibration Protection |
With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
General |
||
| Cooling System |
Fanless design |
Fanless design |
| Dimensions (W x H x D) | 546.69mm x 420.34mm x 67mm (w/o Flange for arm mount), 546.69mm x 420.34mm x 160mm (w/ Flange for arm mount) | 546.69mm x 420.34mm x 67mm (w/o Flange for arm mount), 546.69mm x 420.34mm x 160mm (w/ Flange for arm mount) |

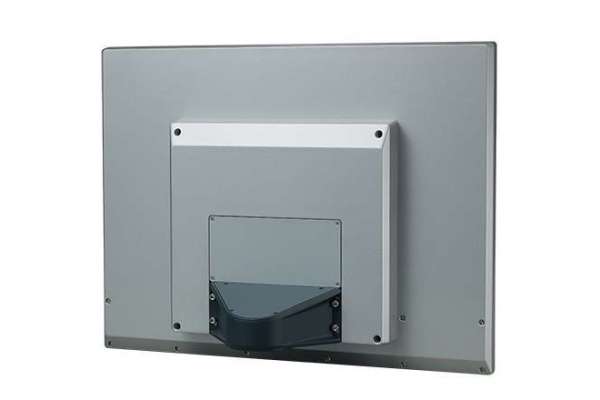

| Mounting | Pole Mount (Pedestal & Pendant, support Rittal's CP40 & Bernstein's CS-480 B.Flex joint dimension), VESA (Optional) |
Pole Mount (Pedestal & Pendant, support Rittal's CP40 & Bernstein's CS-480 B.Flex joint dimension), VESA (Optional) |
| Power Consumption |
60W(Typical) |
60W(Typical) |
| Power Input |
Phoenix Jack: 24 VDC input |
Phoenix Jack: 24 VDC input |
| Certifications |
CE,FCC,UL,CB,CCC |
CE,FCC,UL,CB,CCC |
| Enclosure |
Front panel: Die-casting aluminium,Rear cover: Die-casting aluminium |
Front panel: Die-casting aluminium,Rear cover: Die-casting aluminium |
| OS Support |
Microsoft Windows10 IoT 2016 Enterprise LTSB (64 bit) |
Microsoft Windows10 IoT 2016 Enterprise LTSB (64 bit) |
| Weight |
10 kg (22.04 lb) |
10 kg (22.04 lb) |
| LCD Display | ||
|
Display Size |
21.5" |
21.5" |
| Display Type |
Full HD TFT LED LCD |
Full HD TFT LED LCD |
| Max. Colors |
16.7M |
16.7M |
|
Max. Resolution |
1920 x 1080 |
1920 x 1080 |
|
Viewing Angle (H/V°) |
178/178 |
178/178 |
|
Luminance (cd/m2) |
250 |
250 |
|
Touchscreen |
4096 x 4096 dot |
4096 x 4096 dot |
| Light Transmission |
≥88% |
≥88% |
| Type |
Projected capacitive |
Projected capacitive |
Hardware |
||
|
I/O |
USB 2.0 x 1 (Front), USB 3.0 x 2 | USB 2.0 x 1 (Front), USB 3.0 x 2 |
|
Memory |
8GB SO-DIMM DDR3L SDRAM, Up to 16GB RAM |
8GB SO-DIMM DDR3L SDRAM, Up to 16GB RAM |
|
CPU |
6th Gen Intel® Core™ i3-6100U 2.30 GHz |
6th Gen Intel® Core™ i3-6100U 2.30 GHz |
| Expansion Slots |
Full-sized Mini PCI-E x 1 (optional) |
Full-sized Mini PCI-E x 1 (optional) |
|
LAN |
2x 10/100/1000Base-T (1 x Intel® 210 , 1 x Intel® 219) |
2x 10/100/1000Base-T (1 x Intel® 210 , 1 x Intel® 219) |
