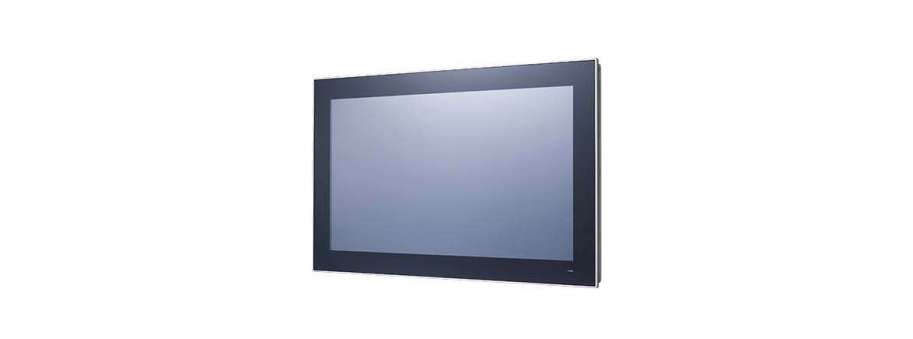

21.5" Fanless Panel PC with Intel® Celeron® N2930 Processor with IP66-rated front panel Advantech PPC-3210SW

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3210SW-PAE Панельний компьютер Advntech PPC-3210SW 21.5" PCT Intel Celeron N2930 fanless  98 580,2
PPC-3210SW-PAU Панельний комп'ютер Advntech PPC-3210SW Intel Celeron N2930 fanless 21.5" PCT Panel PC  102 973,0
PPC-3210SW-PBU Intel Celeron N2930 fanless 21.5" PCT Panel PC  96 915,9
PPC-3100S-HDDE Монтажний набір для встановлення 2.5" SATA HDD/SSD module for PPC-31xxS  1 202,1

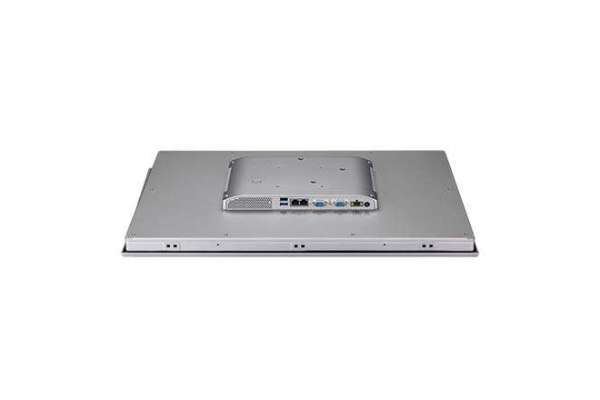

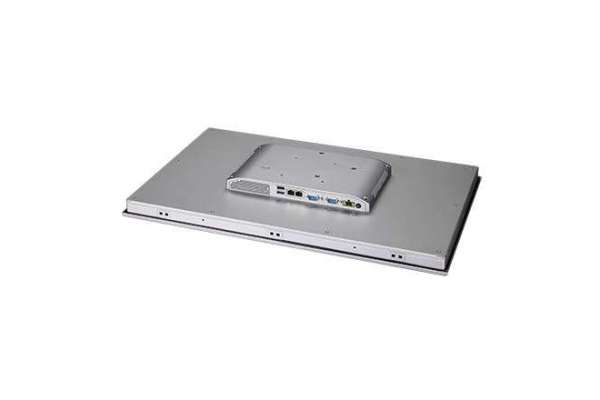

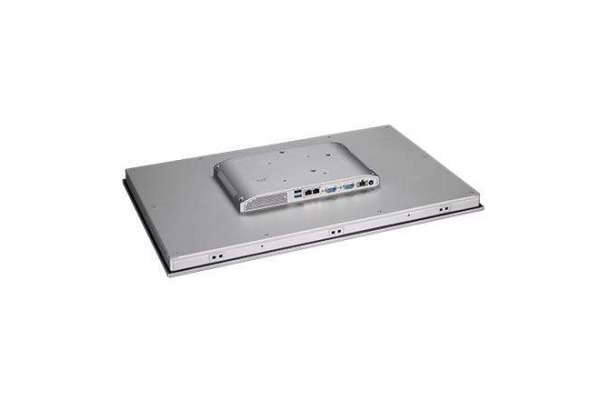

The PPC-3210SW is a high-value, ultra-slim panel PC equipped with a 21.5" Full HD TFT LCD, and low-power Intel® Celeron® N2930 quad-core, 1.86 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-3210SW features an IP66-rated front panel, true-flat projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, two USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications. To provide further system monitoring and protection capabilities, e-Eye technology is provided at the rear of the panel PC for indicating the system operating status to facilitate detection and analysis.

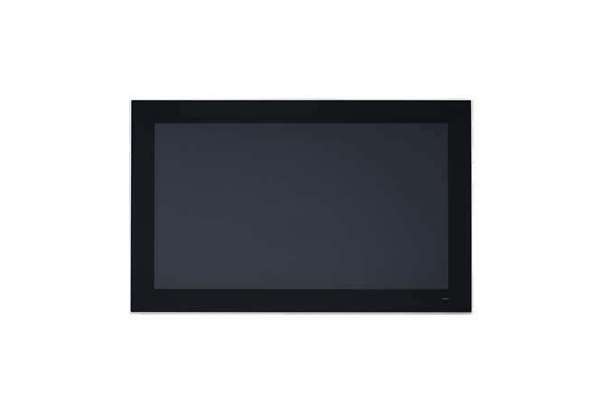

  • Industrial-grade 21.5" Full HD TFT LCD with 50K backlight lifetime
  • True-flat touchscreen with projected capacitive multi-touch control
  • Intel® Celeron® N2930 quad-core, 1.83 GHz, processor
  • Up to 8 GB DDR3L SDRAM
  • 1 x RS-232, 1 x RS-232/422/485, 1 x USB 2.0, and 1 x USB 3.0
  • Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
  • Supports E-Eye monitoring and protection
  • Supports expansion via full-size mini PCIe
  • Supports Windows Embedded and Android OS
  • Supports VESA 75 x 75 mounting holes

Additional information

System

CPU Intel® Celeron® N2930 quad core
Frequency 1.83 GHz
L2 Cache 2 MB
Memory 1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage
  • 1 x 2.5" SATA bay (optional; requires a bracket module for installation)
  • 1 x mSATA bay (default)
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT/I210AT A ver. or Realtek 8119i B ver.)
I/O
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 1 x USB 2.0, 1 x USB 3.0с
Expansion 1 x Full-size mini PCIe slot
Watchdog Timer 255 timer levels, set up by software

Physical Characteristics

Dimensions 558.4 x 349.8 x 56.2 mm (22 x 13.8 x 2.2 in)
Weight 7.5 kg (16.5 lb)

OS Support

OS Support Microsoft® Windows 7(32/64-bit)/10(64-bit), WES7P, WEC7, Windows 10 IOT LTSC, Linux, Android 6.0

Power Consumption

Input Voltage 12 ~ 24 VDC
Power Consumption 25W (Burn-in test 7.0 in Windows 7, 32-bit)

LCD

Display Type 21.5" TFT LCD (LED backlight)
Resolution 1920 x 1080
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ) 300
Contrast Ratio 5000
Backlight Lifetime 50,000 hr

Touchscreen

Touch Type 10-point multi-touch projected capacitive
Light Transmission 90 % ± 3 %
Controller USB interface

Environment

Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F) with SSD
  • 0 ~ 40 °C (32 ~ 104 °F) with HDD (with the HDD temperature more than or equal to 65 °C)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI
Safety CB, CCC, UL
Front Panel Protection IP66 compliant
