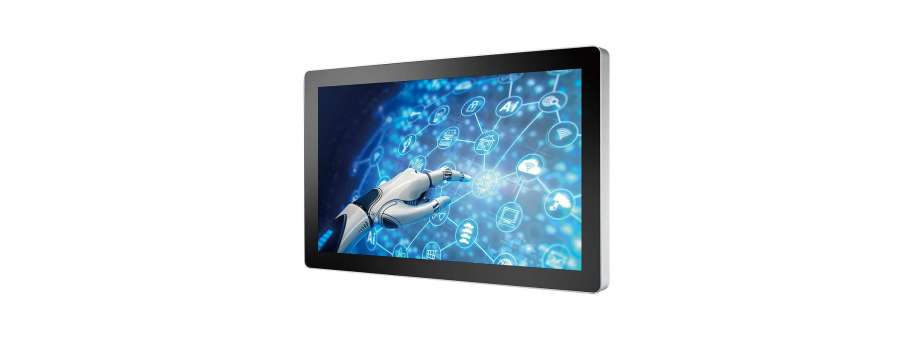

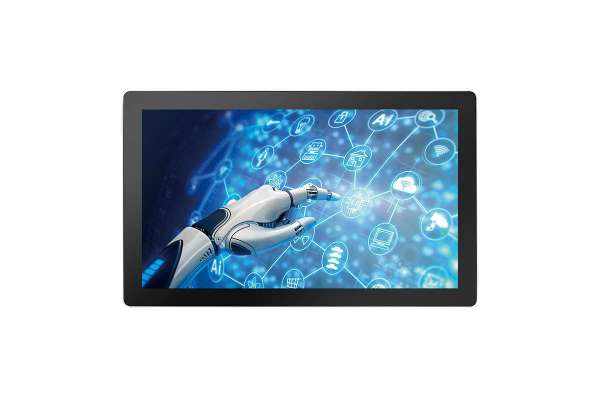

21.5" Fanless Multi-Touch Computer with Intel® Core™ i7/i5/i3 Processor (Whiskey Lake) 8th gen, supports -5°C to 55°C operating temperature Vecow MTC-7021W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MTC-7021W-8665UE | Промисловий панельний комп'ютер Vecow MTC-7021W, 21.5" Fanless Multi-Touch Panel PC, Intel® Core™ i7-8665UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 133 644,0 | |
| MTC-7021W-8145UE | Промисловий панельний комп'ютер Vecow MTC-7021W, 21.5" Fanless Multi-Touch Panel PC, Intel® Core™ i3-8145UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 107 457,0 | |
| MTC-7021W-4305UE | Промисловий панельний комп'ютер Vecow MTC-7021W, 21.5" Fanless Multi-Touch Panel PC, Intel® Celeron 4305UE, 2 GigE LAN, 4 USB, 2 COM, DC 9V to 48V | 95 266,5 |
MTC-7000 Series is powered by 8th generation Intel® Core™ i7/i5/i3 processor (Whiskey Lake) and features leading performance and innovative power management functions. It supports projected capacitive multi-touch screen, fanless design, -5°C to 55°C operating temperature, IP65 certified panel protection, 9V to 48V wide range DC-in power input. MTC-7000 Series is outfitted with 2 GigE LAN, 4 10G USB, 2 COM for flexible connectivity.
- 21.5" 1920 x 1080 (16:9) Full HD TFT LED LCD
- 10-point Projected Capacitive Multi-touch Screen
- 8th Generation Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
- Fanless design supports -5°C to 55°C operating temperature
- 4-port 10G USB 3.1 Gen 2
- Easy-access external SSD/HDD kit
- DC 9V to 48V wide range power input
- Supports Panel Mount and VESA Mount (75 x 75, 100 x 100)
- IP65 Front Panel Protection
- 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
Additional information
| Panel | |
| Panel type | Full HD TFT LED LCD |
| Size | 21.5" |
| Max. Resolution | 1920 x 1080 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 250 |
| Viewing Angles (H/V) | 178/178 |
| Contrast Ratio | 3000:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
| System | |
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
| System | |
| Processor | Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake) |
| Chipset | Intel® Cannon Lake PCH-LP |
| Memory | 1 DDR4 2400MHz SO-DIMM, up to 32GB |
| Graphics Processor | Intel® UHD Graphics 620 |

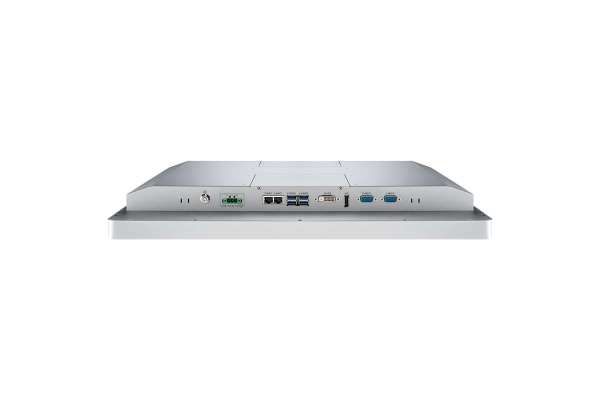

| I/O Interface | |
| Serial | 2 RS-232/422/482 (ESD 8kV, DB9 Type) |
| USB | 4 USB 3.1 Gen 2, Type A |
| LED | Power, HDD |
| Display |
- DVI-D：Up to 1920 x 1200 @60Hz - DisplayPort：Up to 4096 x 2304 @60Hz |
| Expansion | |
| Mini PCIe |
2 Mini PCIe Socket： - 1 Full-size for PCIe/USB/SIM Socket - 1 Full-size for PCIe/USB/SATA |
| Storage | |
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA II (Full Size Mini PCIe, 6Gbps) |
| Storage Device | 1 2.5" SSD/HDD Kit |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type |
| LAN 2 | Intel® I210LM GigE LAN, RJ45 Type |
| Power | |
| Power Input | 9V to 48V DC-in |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimensions | 537.8mm x 329.0mm x 77.1mm (21.17" x 12.95" x 3.04") |
| Weight | 6.35 kg (13.99 lb) |
| Mounting |
- Panel mount - VESA mount (75 x 75, 100 x 100) |
| Environment | |
| Operating Temperature | -5°C to 55°C (-23°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
- IEC 60068-2-27 - 20G, Half-sine, 11ms |
| Shock |
- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis |
| EMC | CE, FCC |
