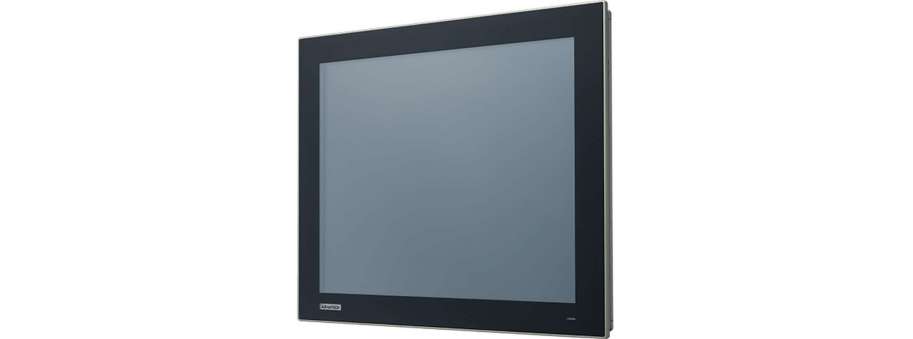

19" SXGA Industrial Monitor with Resistive Touch Control, Direct HDMI, DP, and VGA Ports Advantech FPM-219
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| FPM-219-R9AE | Промисловий дисплей Advantech FPM-219 19" SXGA Ind. Monitor,w/Resistive TS(24Vdc) | 75 781,0 |
- 19" SXGA TFT LED LCD with 70,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.
Additional information
General |
|
| Certification | BSMI, CCC, CE, FCC Class A, UL |
| Dimensions (W x H x D) | FPM-219: 454 x 379.8 x 51.5 mm (17.87 x 14.95 x 2.03 in) |
| Enclosure | Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum |
| Mount Options | Stand, Wall, Panel and VESA arm (75 x 75mm) |
| Power Input | FPM-2XX-R9AE: Terminal Block: 24 VDC input |
| Video Port | HDMI, DP, and VGA |
| Weight (Net) | 3.2 kg / 4.6 kg / 5.4 kg / 6.2 kg |
Power Consumption |
|
| FPM-219-R9AE | 14.19(idle), 15.53(Max) |
LCD Display |
|
| Display Type | SXGA TFT LCD |
| Display Size | 19" |
| Max. Resolution | 1280 x 1024 |
| Max. Color | 16.7M |
| Viewing Angle (H/V °) | 170/160 |
| Luminance (cd/m2 ) | 350 |
| Backlight Life | 70,000 hr |
| Contrast Ratio | 1000:1 |
Touchscreen |
|
| Type | 5-wire analog resistive |
| Interface | USB |
| Light Transmission | Above 75% |
| OS Support | Windows XP, Vista,7, 8,10,XPe and Linux |
Environment |
|
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Humidity (Storage) | 10 ~ 90% non-condensing |
| IP Rating | IP-66 graded front panel |
| Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) |
