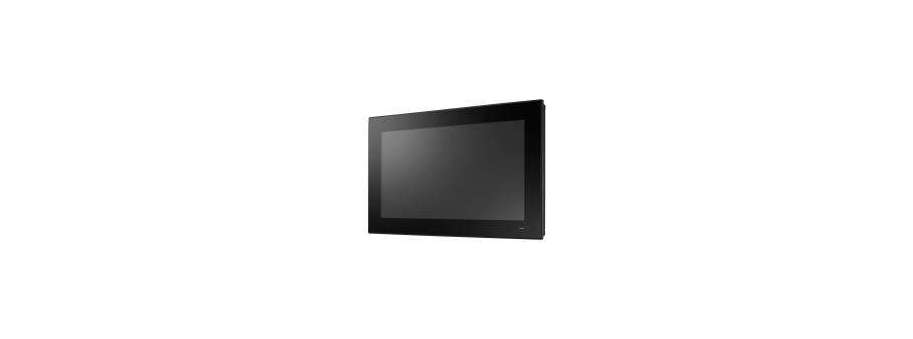

18.5" Fanless Panel PC with Intel® Core™ i7/i5/i3 Processor Advantech PPC-318W TGL

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-318W-PB5A Панельний комп'ютер Advantech, 18,5", Fanless, FHD PPC, Intel Core i5-1145G7E  122 610,0
PPC-318W-PB3A Панельний комп'ютер Advantech, 18,5", Fanless, FHD PPC, Intel Core i3-1115G4E, -10 ~ 50 °C  107 088,0
PPC-318W-PB7A Панельний комп'ютер Advantech, 18.5" PPC w/Intel i7-1185G7E, Pcap  141 237,0

PPC-318w TGL is an 18.5" Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-318w TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible access and connection. The PPC-318w TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

  • Industrial-grade 18.5" LCD panel with 50k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive control
  • High-performance, fanless 11th generation Intel® Core™ i processor
  • Dual channel memory slots, max 64G
  • Compact, fanless design with aluminum alloy enclosure
  • IP66-rated front panel
  • Supports dual displays (1 x external HDMI)
  • 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
  • 1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
  • Supports VESA 100
  • Support TPM2.0 hardware security
  • Supports Type C (USB only)
CPU i3-1115G4E i5-1145G7E i7-1185G7E
Cores Dual Core Quad Core Quad Core
Frequency 2.2GHz; 3.90GHz with turbo boost 1.5 GHz; 4.1 GHz with turbo boost 1.8 GHz; 4.4 GHz with turbo boost
Cache 6 MB 8 MB 12 MB
TDP 15W 15W 15W

Additional information

System

Memory 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)
Storage
  • 1 x 2.5" SATA bay
  • 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
Network (LAN)
  • 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
  • 1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M
I/O
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
  • 3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only)
  • 1 x HDMI1.4
  • 1 x TPM 2.0
  • 1 x Line out
Speaker 2 x 1W
Expansion 1 x M.2 2230 E-key for wireless card
Watchdog Timer 255 timer levels, set up by software

Physical Characteristics

Dimensions 488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)
Weight 5.7 kg (12.56 lb)

OS Support

OS Support Microsoft® Win 10 IOT LTSC (64-bit), Win11, Linux

Power Consumption

Input Voltage 12 ~ 30 VDC
Power Consumption 70W (Burn-in test 8.1 in Windows 10 64-bit)

LCD

Display Type 18.5" LCD (LED backlight)
Resolution 1366 x 768
Viewing Angle 85(left), 85(right), 80(up), 80(down)
Luminance (cd/m2 ) 450
Contrast Ratio 1000
Backlight Lifetime 50,000 hr (min.)

Touchscreen

Touch Type 10-point multi-touch projected capacitive
Light Transmission ≥88%
Controller USB interface

Environment

Operating Temperature -10 ~ 50 °C (14~122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI, VCCI, UKCA, EN60601-1-2
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
