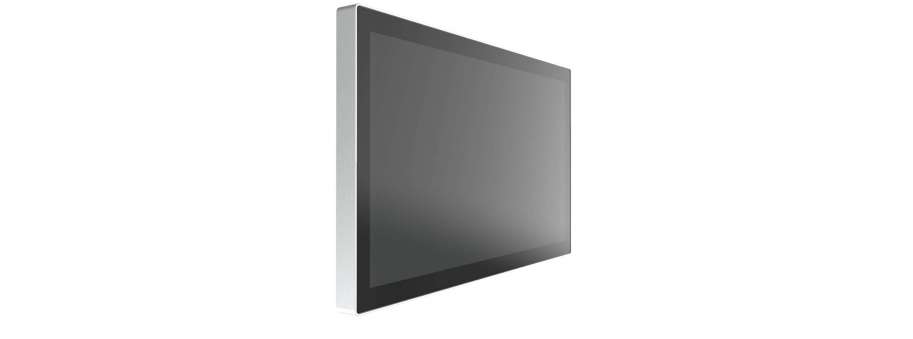

18.5" Bezel-Free P-cap Panel PC, Intel® Tigerlake-UP3 CoreTM i3/i5/i7 Processors, IP65 ELGENS LPC-P185WAG

Manufacturer: ELGENS
Facebook Twitter Linkedin Mail

18.5" (1920*1080) Bezel-Free P-cap Panel PC, Intel® Tigerlake-UP3 CoreTM i3/i5/i7 Processors, IP65 Aluminum Front Bezel, AG, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range Power Input, -40~70 °C

  • Intel® Tigerlake-U CoreTM i3/i5/i7 Processors
  • 18.5" P-cap Flat Bezel
  • 1920*1080 Resolution LCD
  • Bezel-Free Design
  • Fanless Design
  • DC 12~24V Wide Range Power Input
  • IP65 / 66 Front Panel
  • 3-Pin Power Input Terminal Block
  • Optional 1000 nits LED Backlight
  • Compliance with MIL-STD-810H

Additional information

Processor

 Intel® TigerLake-U CoreTM i3/i5/i7 Processors
System Memory 2 x DDR4 SO-DIMM, up to 64GB

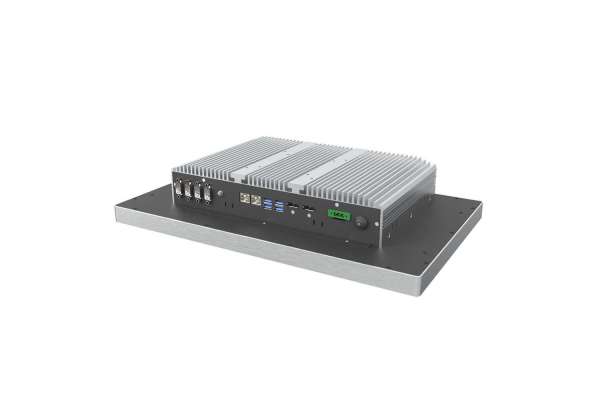

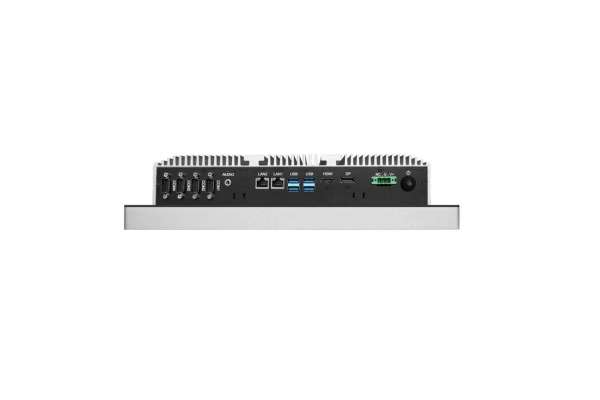

External I/O Port
  • 4 x USB 3.2 Gen2 Ports
  • 2 x RJ45 GbE LAN (Intel® I225-LM supports 2.5GbE LAN)
  • 1 x Display Port
  • 1 x HDMI
  • 4 x RS-232/422/485
  • 1 x Audio out
  • 1 x Power press button
  • 1 x 3-Pin Terminal Block for Power Input
Storage
  • 1 x 2.5" Storage Bay
  • 1 x M.2 B-key 2260 Socket

Operating System
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
  • Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)
  • Linux Ubuntu 22.04 (64-bit, by request) / Linux Yocto Project 3.1 (64-bit, by request)
Expansion
  • 1 x M.2 B-key 2242/3042 (SATA 3.0, PCIe x1, USB 2.0)
  • 1 x M.2 E-key 2230 ( PCIe x1, USB 2.0)

LCD
Display Type 18.5" TFT LCD
Max. Resolution 1920*1080
Max. Color 16.7M
Luminance 350 nits
View Angle 89/89/89/89
Backlight Lifetime 30,000 hours

Power Requirement
Power Input DC 12~24V Wide Range Power Input

Touch Screen
Type 18.5" P-cap USB

Environment
Operating Temp 40~70 °C，IEC-60068-2-1/2/14
Storage Temp -40~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification
Vibration
  • MIL-STD-810H, Method 514.8,
  • Procedure I,(Compliance)
Shock
  • MIL-STD-810H, Method 516.8,
  • Procedure I,(Compliance)

Mechanical
Construction Aluminum Front Bezel and Metal Case
IP Rating Front Panel IP65 / IP66 Compliant
Mounting
  • M4 VESA Mount 75 x 75 / 100 x 100
  • Panel Mounting
Dimension 450.45 x 275.58 x 84 mm
