17" TFT LCD Panel PC w/ Intel® Atom® / Pentium® Processor, 4x USB, 4x COM, 1x VGA and 1x DisplayPort Cincoze CV-117/P1101

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
CV-117R-R10/P1101-E50-R10 Модульний панельний комп'ютер Cincoze CV-117R-R10/P1101-E50-R10, 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC with Intel Atom E3950 Quad Core Processor and Resistive 5-wire Touch  73 808,6
CV-117C-R11/P1101-E50-R10 Модульний панельний комп'ютер Cincoze CV-117C-R11/P1101-E50-R10, 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch  82 064,6
CV-117G-R10/P1101-E50-R10 Модульний панельний комп'ютер Cincoze CV-117G-R10/P1101-E50-R10, 17" TFT-LCD SXGA 5:4 Modular Panel PC with Intel Atom E3950 Quad Core Processor and without Touch  70 506,2
CV-117R-R10/P1101-N42-R10 Модульний панельний комп'ютер Cincoze CV-117R-R10/P1101-N42-R10, 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC with Intel Pentium N4200 Quad Core Processor and Resistive 5-wire Touch  75 047,0
CV-117C-R11/P1101-N42-R10 Модульний панельний комп'ютер Cincoze CV-117C-R11/P1101-N42-R10, 17" TFT-LCD SXGA 5:4 Modular Touch Panel PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch  83 303,0
CV-117G-R10/P1101-N42-R10 Модульний панельний комп'ютер Cincoze CV-117G-R10/P1101-N42-R10, 17" TFT-LCD SXGA 5:4 Modular Panel PC with Intel Pentium N4200 Quad Core Processor and without Touch  71 744,6

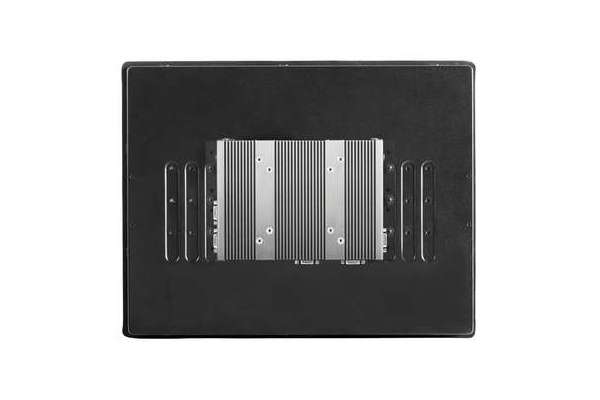

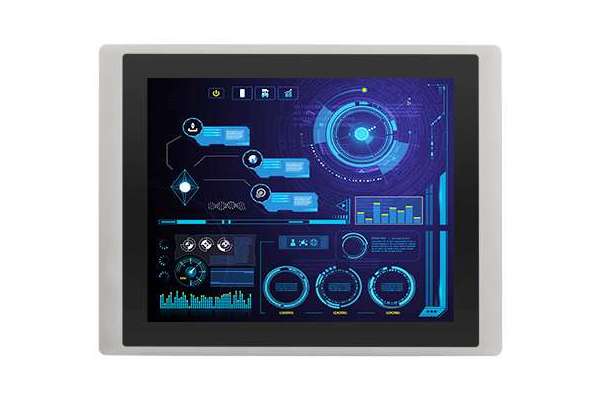

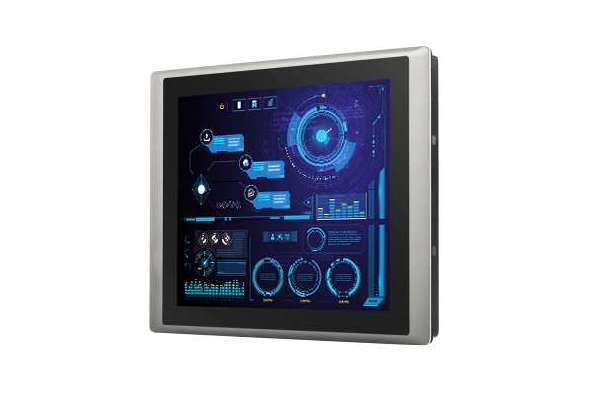

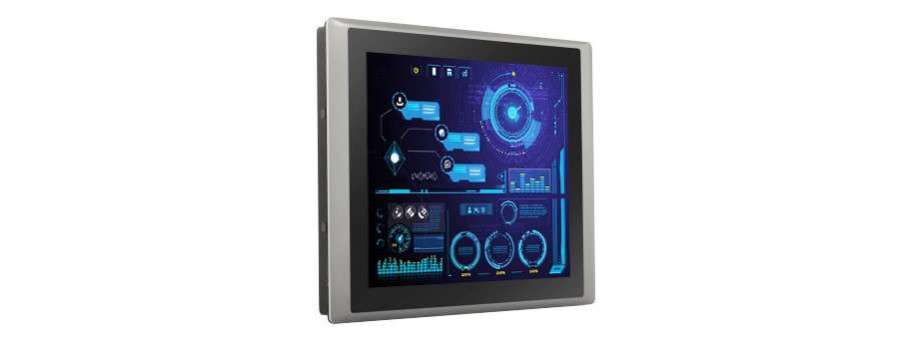

CV-117/P1101 Series is a 17" TFT-LCD touch panel PC offering 350 nits high brightness and 1280 x 1024 (SXGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CV-117/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections. Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-117/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-117/P1101 Series is appropriate for harsh environments and critical applications.

  • 17" TFT-LCD SXGA with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)
  • 2x LAN, 4x USB, 4x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • Designed with Aluminum Die-Casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet

Additional information

CV-117R

Display
LCD Size 17" (5:4)
Max. Resolution 1280 x 1024
Brightness (cd/m2) 350
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 140
Backlight MTBF 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Resistive 5-wire / Projected Capacitive for CV-117C/ Glass Screen CV-117G

Physical
Dimension ( W x D x H ) 450 x 350 x 63.2mm
Weight Information 5.64 kg
Mechanical Construction Die-Casting Flat Surface

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature
  • Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals)
  • Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) for CV-117C
  • Ambient with Air flow: -30°C to 85 °C (with Industrial Grade Peripherals) for CV-117G
Storage Temperature -30°C to 80°C ( -30°C to 85°C for CV-117G )
Relative Humidity 80% RH @ 40°C (non-Condensing) / 90% RH @ 40°C (non-Condensing) for CV-117G
EMC CE, UKCA, FCC, ICES-003 Class A

System
Processor
  • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
  • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
Memory
  • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
  • Supports up to 8GB (un-buered and non-ECC)

Graphics
Graphics Engine Integrated Intel® HD Graphics 505
Maximum Display Output Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
VGA 1x VGA Connector (1920 x 1200 @60Hz)
DP 1x DisplayPort Connector (4K x 2K @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
USB 4x USB 3.2 Gen1 (Type A)
Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Power Mode Switch 1x AT/ATX Mode Switch
Power Switch 1x Power Switch
Reset Button 1x Reset Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off 1x Remote Power On/O Connector, 2-pin Terminal Block

Storage
SSD/HDD 1x 2.5”SATA HDD Bay (SATA 3.0)
mSATA 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Sockets
SIM Socket 1 x SIM Socket
CFM (Control Function Module) Interface
  • Optional CFM IGN Module for Power Ignition Function
  • Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology 1x CDS Interface for Convertible Display Module
Antenna Holes 4x Antenna Holes

Other Function
Instant Reboot Support 0.2sec
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Internal Speaker AMP 2W + 2W
OSD Function LCD On/Off, Brightness Up, Brightness Down

Power
AT/ATX Power Support AT, ATX Mode
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional) 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W

Physical
Dimension ( W x D x H ) 204.5 x 149 x 41.5 mm
Weight Information 1.49kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Reliability & Protection
Reverse Power Input Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection 15A
ESD Protection +/-8kV (air), +/-4kV (contact)
Surge Protection 2kV
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF Time: 294,617 hours

Operating System
Microsoft® Windows® Windows®10
Linux Supports by project

Environment
Operating Temperature Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature -40°C to 85°C
Relative humidity 95% RH @ 75˚C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
Safety LVD IEC/EN 62368-1
