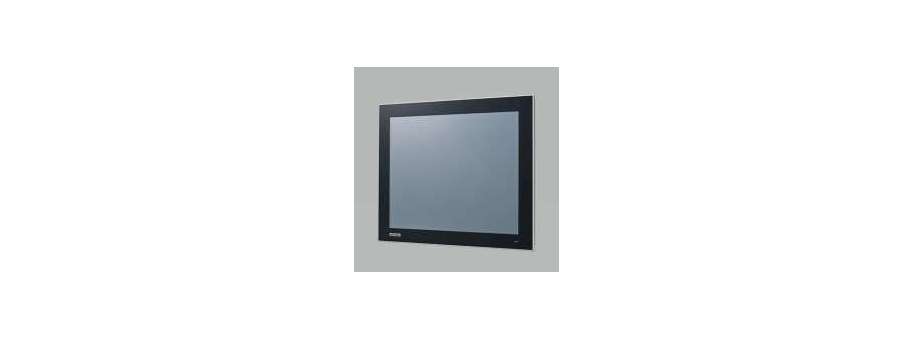

17" SXGA TFT LED LCD Touch Panel Computerwith 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM Advantech TPC-317

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-317-R833A Промисловий панельний комп'ютер Advantech 17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAM  119 824,0
TPC-317-R853A Промисловий панельний комп'ютер Advantech 17" SXGA Touch Panel PC w/Core i5 CPU, 8G RAM  135 683,0
TPC-317-R873A Промисловий панельний комп'ютер Advantech 17" SXGA Touch Panel PC w/Core i7 CPU, 8G RAM  152 600,0
TPC-317-R833AO Промисловий панельний комп'ютер Advantech TPC-317-R833A w/o audio function  119 824,0
TPC-317-R853AO Промисловий панельний комп'ютер Advantech TPC-317-R853A w/o audio function  135 683,0
TPC-317-RE22A Панельний комп'тер Advantech TPC-317 17" SXGA Touch Panel PC, Atom 6425E 2.0 GHz, 4G  86 840,3
TPC-317-RJ22A Панельний компю'тер Advantech TPC-317 17" SXGA Touch Panel PC, Celeron J6412, 4G RAM  81 664,1

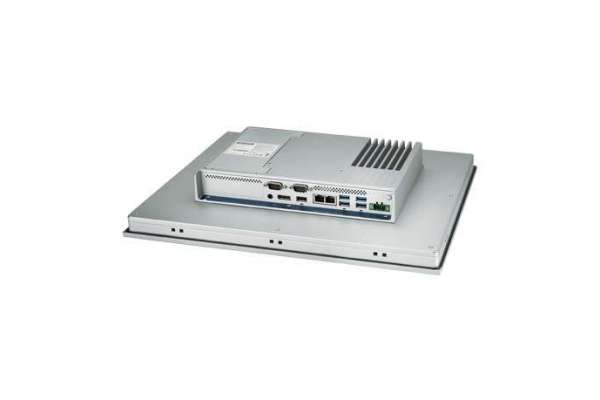

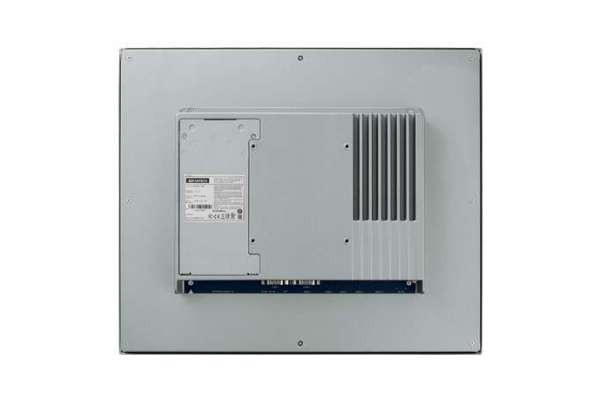

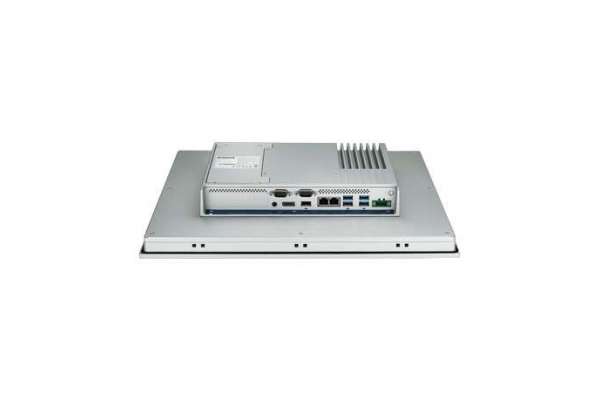

TPC-317 touch panel computer is equipped with 17" SXGA TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor, and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-317 features IP66-rated front panel protecting against dust and water ingress, and two extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or 5G application. With Advantech's iDoor technology integrated via mini PCIe slot for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, GPS/ GPRS/Wi-Fi communication and MRAM. The integrated DP and audio ports allow a secondary monitor and speakers to be attached for increased functionality

  • Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight
  • 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
  • Dual channel memory slots support up to 64G in total
  • Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
  • True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security

Additional information

General

BIOS AMI UEFI
Certification BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System Fanless design
Dimensions (W x H x D) 410.4 x 343.4 x 68 mm (16.16 x 13.52 x 2.68 in)
Enclosure
  • Front bezel: Die cast aluminum alloy
  • Back housing: Die cast aluminum alloy
Mounting VESA Mount, Desktop, Wall or Panel Mount
OS Support Win 10, Android, Linux
Power Consumption 45.48W (Typical)
Power Input 24 VDC ± 20%
Watchdog Timer 15-255 sec (system)
Weight (Net) 6.1kg (13.45lbs)

System Hardware

CPU 8th Gen. Intel® Core™ i3- 8145UE 2.20 GHz Dual-core/ i5-8365UE 1.60 GHz Quad-core/ i7-8665UE 1.70 GHz Quad-core processor
Memory
  • Dual channel DDR4 SO-DIMM (Each channel supports up to 32G)
  • 1 x 8G DDR4 SO-DIMM (Built-in)
LAN 2 x 10/100/1000BASE-T
Expansion Slot
  • 1 x Full-size mini PCIe
  • 1 x SIM (M.2 B Key 4G/5G module)
Storage Slot
  • 1 x M.2 M key 2280 (SATA or NVMe PCIe x4)
  • 1 x M.2 B key 2242 (SATA / PCIe) 3042, 3052 (5G)
  • 1 x 2.5" SSD/ HDD (SATA, Max. 7mm)
I/O
  • 2 x RS-232/422/485
  • 1 x USB 2.0
  • 4 x USB 3.2 (Gen 2)
  • 1 x iDoor slot
  • 1 x Displayport (Video output)
  • 1 x Audio line out/ mic in

LCD Display

Display Type SXGA TFT LED LCD
Display Size 17" (4:3)
Max. Resoltuion 1280 x 1024
Max Colour 16.7M
Luminance cd/m2 300 cd/m2
Viewing Angle (H/V°) 160°/140°
Backlight Life 50,000 hrs
Contrast Ratio 800:1

Touchscreen

Lifespan 36 million touches at a single point
Light Transmission Above 75%
Resolution Linearity
Type 5-wire analog resistive

Environment

Humidity 10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection IP66-rated front panel
Operating Temperature -10~55°C (14~131°F) (w/o air flow)
Storage Temperature -20~70°C (-4~158°F)
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
