DP HDMI IP66 Resistive Touch Screen Size 17" Standard T range VGA Wallmount

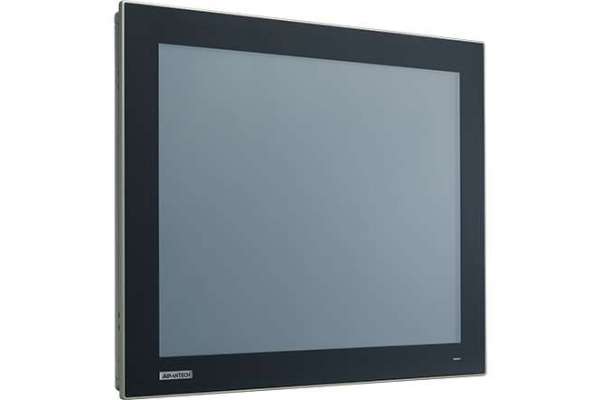

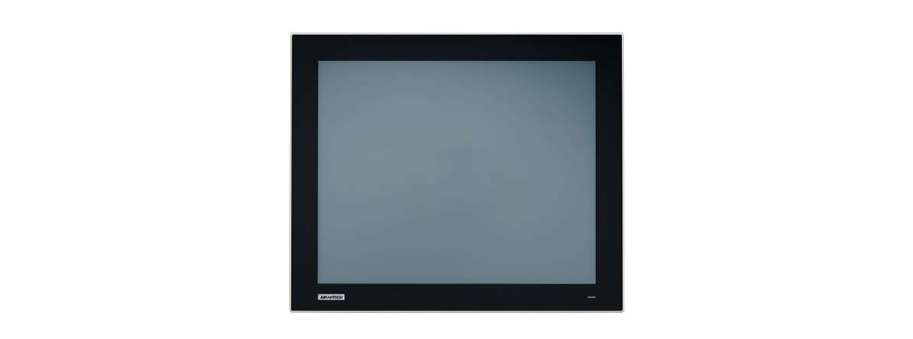

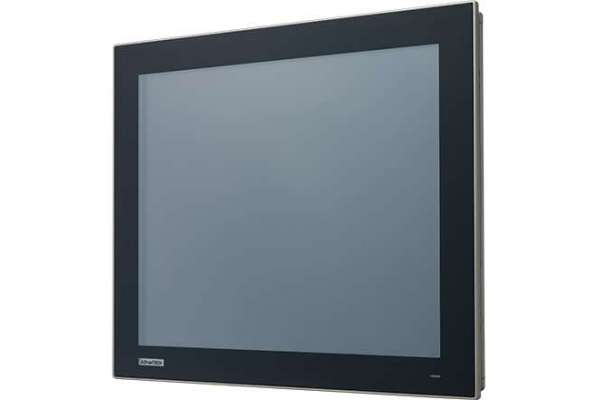

17" SXGA Industrial Monitor with Resistive Touch Control, Direct HDMI, DP, and VGA Ports Advantech FPM-217

Price and avalability

Partnumber Description Price VAT incl Avalability
FPM-217-R9AE Промисловий дисплей Advantech FPM-217, 17" SXGA 1280 x 1024. Резистивний сенсорний екран з інтерфейсом USB. HDMI, DP and VGA input interfaces, живлення 24Vdc, без блоку живлення.  66 433,6

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

  • 17" SXGA TFT LED LCD with 50,000 backlight lifetime
  • Direct HDMI, DP and VGA input interfaces
  • Anti-glare screen with tempered glass
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel

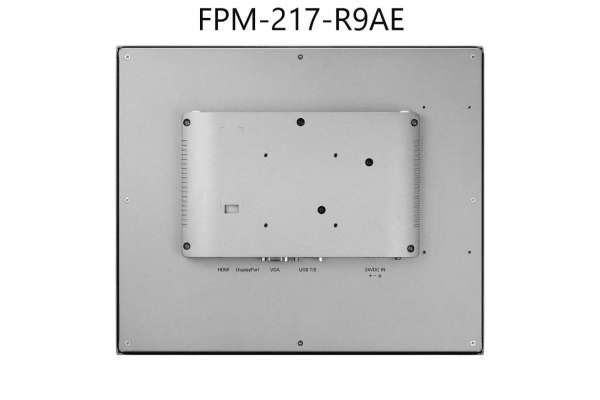

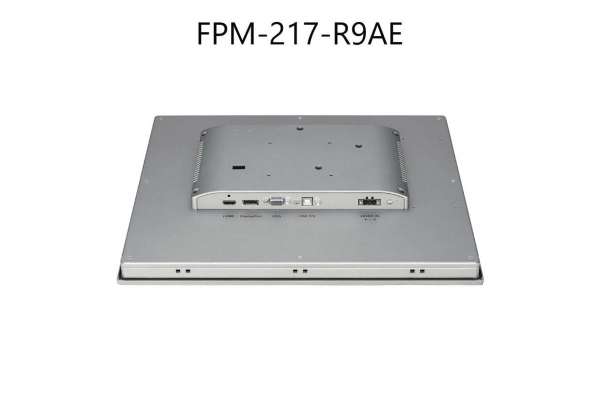

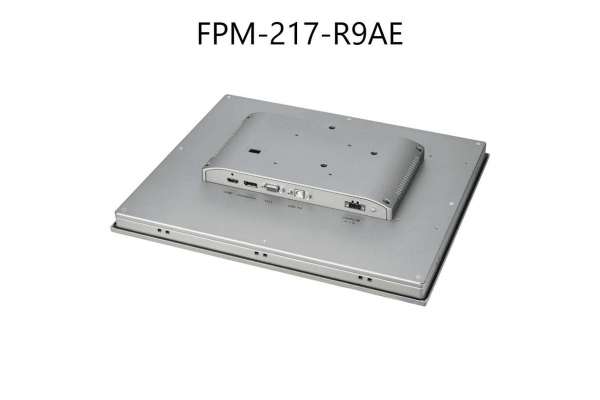

  • Lockable I/O connectors
  • Slim design enables easy installation
  • Supports various mount options: panel, desktop, and VESA arm

Additional information

General

Certification BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D FPM-217: 410.4 x 343.4 x 54 mm (16.15 x 13.51 x 2.12 in)
Enclosure
  • Front panel: Die cast magnesium alloy
  • Rear cover: Die-casting aluminum
Mount Options Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input FPM-2XX-R9AE: Terminal Block: 24 VDC input
Video Port HDMI, DP, and VGA
Weight (Net) 3.2 kg / 4.6 kg / 5.4 kg / 6.2 kg

Power Consumption

FPM-217-R9AE 11.92(idle), 14.19(Max)

LCD Display

Display Type XGA/XGA/SXGA/SXGA TFT LCD
Display Size 17"
Max. Resolution 1024 x 768/1024 x 768/1280 x 1024/1280 x 1024
Max. Color 16.7M
Viewing Angle (H/V °) 170/160
Luminance (cd/m2 250
Backlight Life 50,000 hr
Contrast Ratio 1000:1

Touchscreen

Type 5-wire analog resistive
Interface USB
Light Transmission Above 75%
OS Support Windows XP, Vista,7, 8,10,XPe and Linux

Environment

Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity (Storage) 10 ~ 90% non-condensing
IP Rating IP66 graded front panel
Vibration 5 ~ 500 Hz, 1 Grms (Operating, Random)
