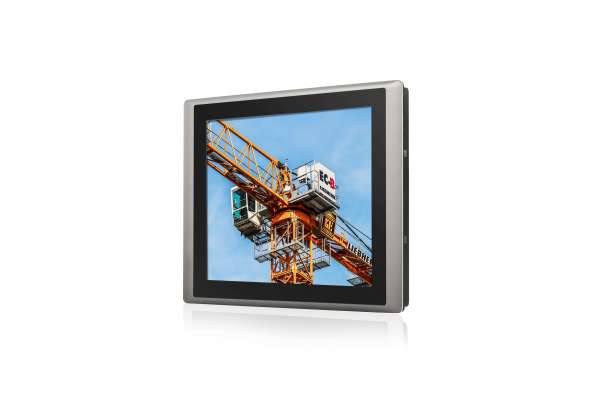

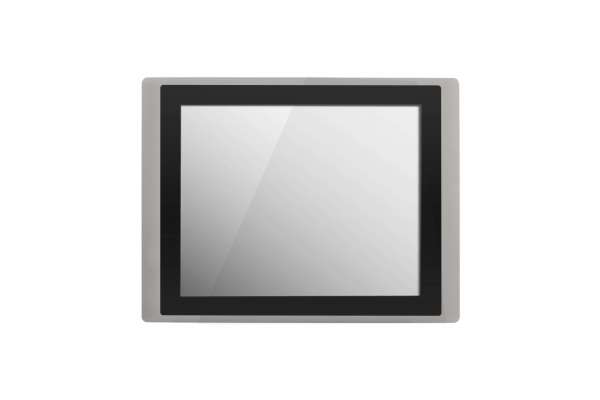

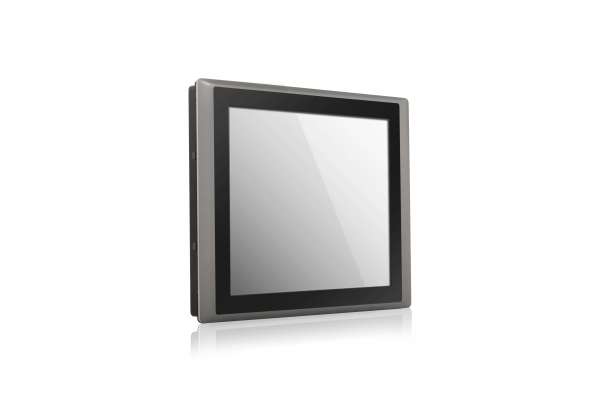

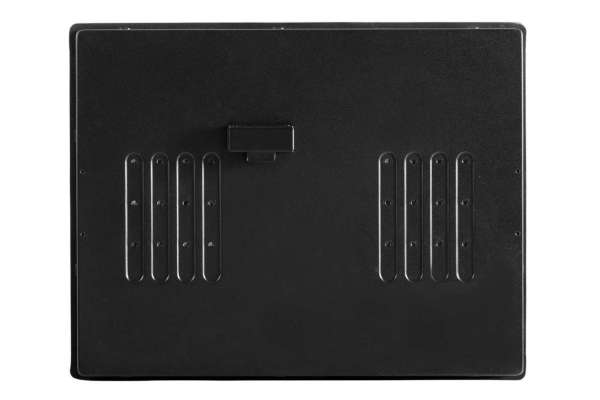

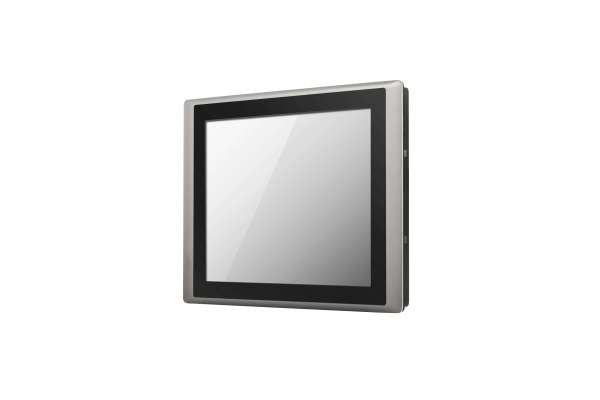

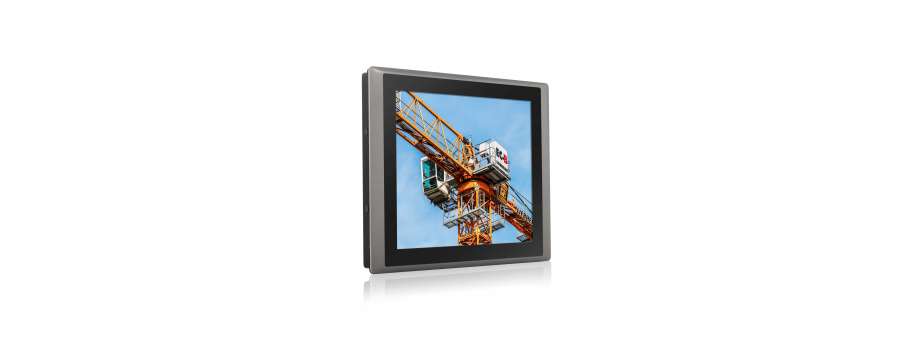

17" TFT-LCD Sunlight Readable, Modular and Expandable Panel PC Cincoze CS-117/P2102E

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The CS-117/P2102E is a 17" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-117/P2102E is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. For expansion requirements, the CS-117/P2102E has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CS-117/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-117/P2102E is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-117/P2102E supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

  • 17” TFT-LCD with Ultra-high Brightness up to 1,500 nits and 1280 x 1024 (SXGA) Resolution
  • Onboard 8th Generation Intel® Core™ U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • 1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • True Flat IP65 Compliant Front Panel Protection
  • Supports Panel / VESA / Rack Mounting

Additional information

Specifications

Display
LCD Size 17" (5:4)
Max. Resolution 1280 x 1024
Brightness (cd/m2) 1500
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 140
Backlight MTBF 50000 hrs (LED Backlight)

Touch

 Projected Capacitive Touch

Processor System
Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
  • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz)
  • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz)
  • TDP: 15 W
Memory
  • 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket
  • Supports up to 64 GB (un-buered and non-ECC)

Graphics
  • Integrated Intel® UHD Graphics 620
  • Supports Triple Independent Display (via VGA and DisplayPort Outputs)

Audio Codec

 Realtek ALC888-GR

External I/O Interface

• 1x VGA (1920 x 1200 @60Hz)

• 1x DisplayPort (4096 x 2304 @ 60Hz)

• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45

  1. GbE1: Intel® I219-LM
  2. GbE2: Intel® I210-IT • 3x USB 3.2 Gen2 (Type A)

• 2x USB 2.0 (Type A)

• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9

• 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm

• 1x ATX Power On/Off Button

• 1x Reset Button

• 1x AT/ATX Mode Switch

• 1x Clear CMOS Switch

• 1x Remote Power On/Off Connector, 2-pin Terminal Block

• 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block

• 1x Ignition DIP Switch (12V/24V, need to work with CFM module)

Storage

 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1

Expansion
  • 2x Full-size Mini-PCIe Socket
  • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
  • 2x Control Function Module (CFM) Interface
  • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
  • 2x Universal I/O Bracket
  • 1x Front Accessible SIM Socket
  • 4x Antenna Hole

Other Functions
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • Internal Speaker AMP 2W + 2W
  • OSD Function: LCD On/Off, Brightness Up, Brightness Down
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Supports Instant Reboot Technology (0.2 sec)

Power Requirement
  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 1x 3-pin Terminal Block • Power Adapter (Optional): AC/DC 24V/5A 120W or AC/DC 24V/9.2A 220W

Physical
  • Dimension (WxDxH, mm): 450 x 350 x 95.5 mm
  • Weight: 8.4 kg
  • Construction: Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis
  • Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit)
  • Fanless Design
  • Jumper-less Design

Environment
  • Operating Temperature: -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
  • Storage Temperature: -20°C to 70°C
  • Relative Humidity: 80% RH @ 40˚C (Non-condensing)
  • Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  • Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • IP Level: IP65 Compliant Front Panel
  • EMC: CE, FCC Class A

Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform)

Operating System
  • Windows® 10
  • Linux: Supports by project
