17" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards Advantech PPC-6171С
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-6171C-RTAE | Промисловий панельний комп'ютер (шасі) Advantech PPC-6171C 17“ Panel PC opTimized Chassis, 250W AC PSU | 66 659,3 | |
| PPC-MB-610 | Материнська плата Advantech, Mini-ITX M/B support 8/9th Core i for PPC-61X1C-RTAE | 23 683,5 | |
| PPC-MB-8260AE | Материнська плата Advantech, Mini-ITX M/B support 6/7th Core i for PPC-61X1C-RTAE | 16 995,8 |

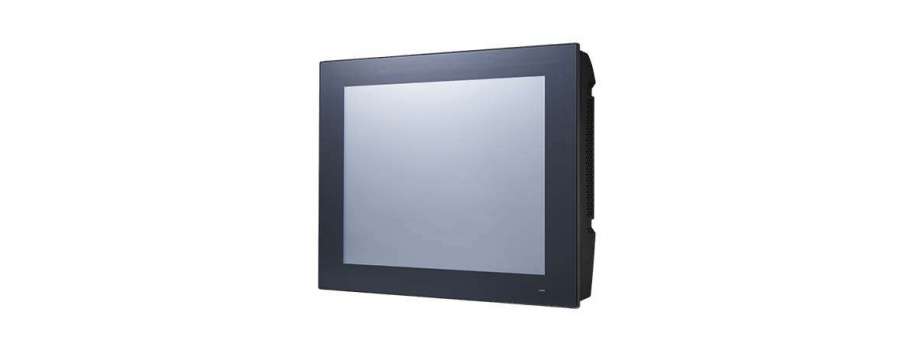

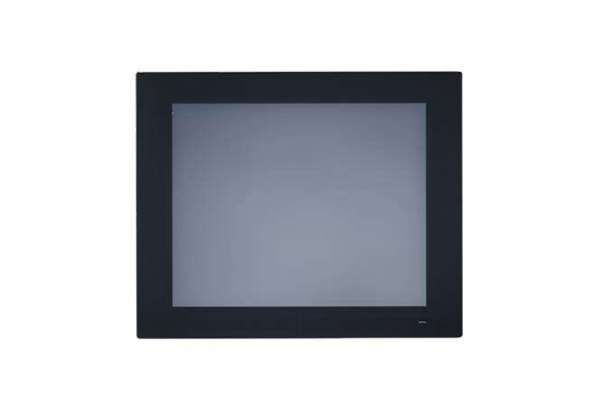

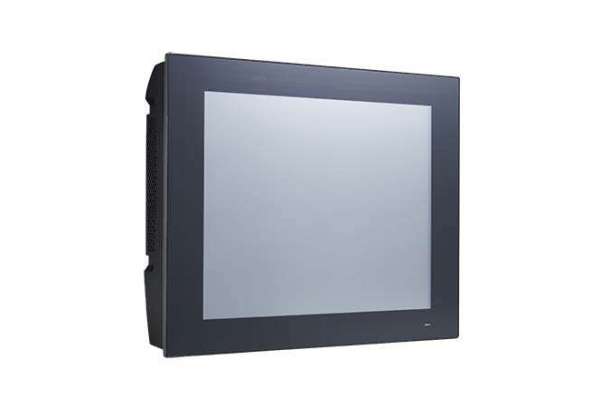

The PPC-6171C, a panel PC chassis with 17" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6171C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.
- 17” true-flat PPC with Resistive touch
- Supports certified mini-ITX motherboard up to 45W TDP processor
- Support PCI or PCIe expansion slot
- Front LED indicators for power status
- Front panel is IP65 compliant
- Optional VESA mount by request
Additional information
| PPC-6171C-RMAE | PPC-6171C-RTAE | |
Chassis feature |
||
|
I/O ports |

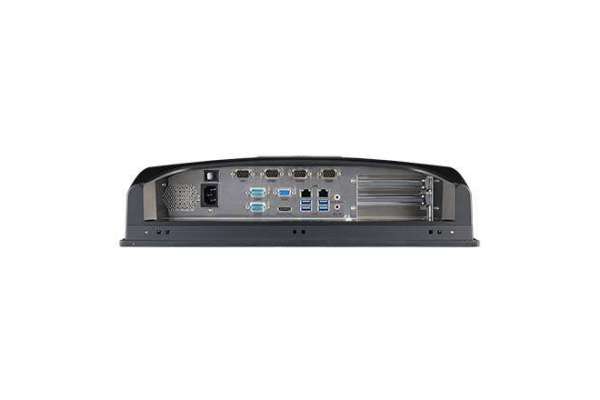

1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B's specific |
1 x AC inlet;1 x Power Switch;Reserved opening:Based on M/B PPC-MB-8260AE's specific |
|
Storage |
2 x 2.5" SATA HDD bay |
1 x 2.5" SATA HDD bay |
|
Expansion |
1 x PCIe x4 or 1 x PCI (in the accessory box) |
1 x PCIe x4 or 2 x PCI (in the accessory box);2 x PCIe x1 (optional);1 x PCIe x1 + 1 x PCI (optional) |
|
Speaker |
2 X 1W |
2 X 1W |
|
Fan |
2 x 12V 60 x 60 x 15mm |
2 x 12V 60 x 60 x 15mm |
Physical Characteristics |
||
|
Dimensions |
437 x 357 x 107.6 mm (17.2" x 14.06" x 4.2") |
437 x 357 x 107.6 mm (17.2" x 14.06" x 4.2") |
|
Weight |
5.4 kg (11.90 lb) |
5.4 kg (11.90 lb) |
OS Support |
||
| OS Support |
According to motherboard specifications |
According to motherboard specifications |
Power Supply |
||
|
Input Voltage |
100-240VAC, 250W |
100-240VAC, 250W |
LCD Display |
||
|
Display Type |
17" TFT LED Panel |
17" TFT LED Panel |
|
Max. Resolution |
1280x1024 |
1280x1024 |
|
Viewing Angle (H/V°) |
80 (left), 80 (right), 60 (up), 80 (down) |
80 (left), 80 (right), 60 (up), 80 (down) |
|
Luminance (cd/m2) |
350 |
350 |
|
Contrast Ratio |
800:1 |
800:1 |
|
Backlight Life |
50,000 hrs |
50,000 hrs |
Touch Screen |
||
| Type |
Analog Resistive 5-wire/Projected capacitive type (optional) |
Analog Resistive 5-wire/Projected capacitive type (optional) |
|
Light transmission |
80+/-5% |
80+/-5% |
|
Controller |
USB interface |
USB interface |
|
Durability (Touches) |
35 million |
35 million |
Environment |
||
|
Operating Temperature |
0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module |
0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module |
|
Storage Temperature |
-40 ~ 60°C (-40~140°F) |
-40 ~ 60°C (-40~140°F) |
|
Relative Humidity (Non-condensing) |
10 ~ 95% @ 40°C (non-condensing) |
10 ~ 95% @ 40°C (non-condensing) |
|
Shock |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
|
Vibration |
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant |
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant |
|
EMC |
CE, FCC Class A |
CE, BSMI, FCC Class A |
|
Safety |
CB, CCC, UL |
CB, CCC, BSMI, UL |
|
Front Panel Protection |
IP65 Compliant |
IP65 Compliant |
