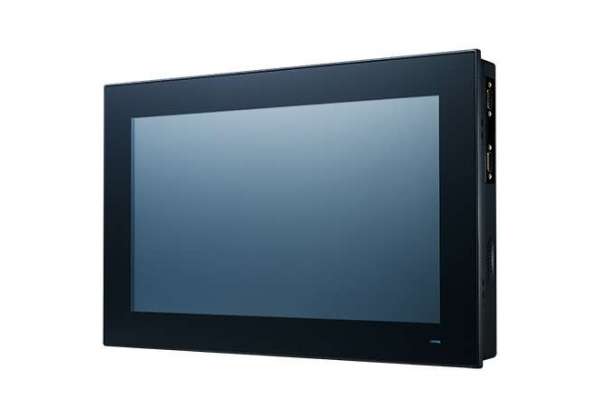

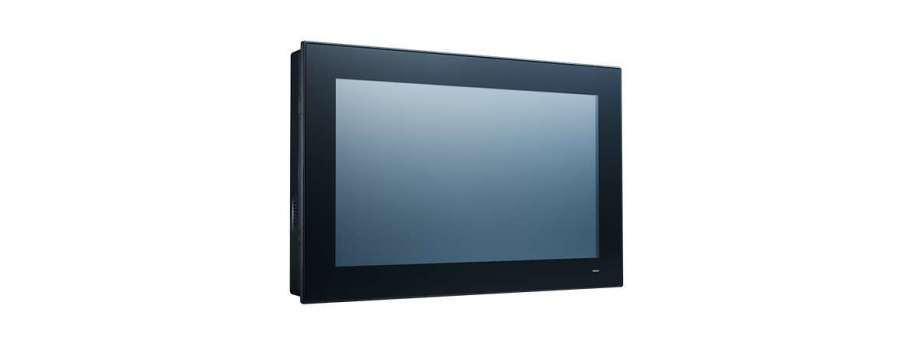

15.6" Fanless Widescreen Panel PC with Intel® Core™ i5-7300U Processor Advantech PPC-3151W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-3151W-P75A | Панельний комп'ютер Advantech Intel Core i5-7300U Fanless 15.6" PCAP Panel PC | 132 034,0 | |
| PPC-3151W-P75AO | Панельний комп'ютер Avantech PPC-3151W-P75A, i5-7300U, Fanless 15.6" PCAP w/o audio function | 120 578,0 | |
| PPC-3151W-P75AU | Панельний комп'ютер Advantech Intel Core i5-7300U Fanless 15.6" PCAP Panel PC | 138 254,0 | |
| PPC-3151W-P77AU | Промисловий панельний комп'ютер Advantech Intel Core i7-7600U Fanless 15.6" PCAP Panel PC | 159 368,0 | |
| PPC-3151W-P77AUO | Промисловий панельний комп'ютер Advantech PPC-3151W-P77AU w/o audio function | 137 048,0 |
PPC-3151W is a new generation industrial interactive panel PC with a 15.6" TFT full HD LCD 1920 x 1080 resolution, which features a flat, sleek design to greatly reduce maintenance effort. Pre-installed Intel® Core™ i processor and designed fanless architecture, PPC-3151W provide high performance/
- 15.6" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
- Intel® Core™ i5-7300U(default); i7-7600U/i3-7100U(optional) processor with fanless system design
- Supports PCIe x4 or PCI expansion
- 1 x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual Gigabit Ethernet with IEEE1588 support
- 3 x Independent displays
- 1 x M.2 bay (2242) for storage only
- 1 x TPM2.0 internal support (optional)
Additional information
Product Specifications
| Part Number | PPC-3151W-P75A |
Processor System |
|
| CPU | Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional) |
| Frequency | 2.6 GHz, up to 3.5 GHz with turbo |
| L3 Cache | 3M |
| Memory | 1 x SODIMM, DDR4 1866/2133, max. 16 GB (1.2V) |
| Storage | 1 x 2.5" SATA bay;1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) |

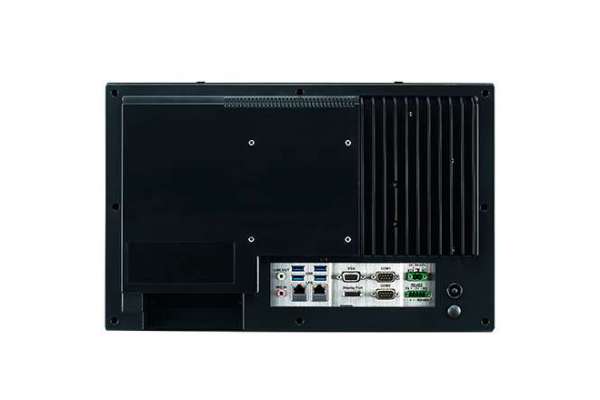

| I/O Ports | 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation;Either 2 x RS-232 or 1 x RS-232 + 1 x GPIO(TTL, 8 pin programmable) on right side (optional module);4 x USB 3.0;1 x Line-out, 1 x Mic-in;1 x DB15 VGA;1 x Display Port (1.2);1 x TPM 2.0 internal(optional) |
| Watchdog Timer | 255 timer levels; setup by software |
| Speaker | 2 x 1W speakers |
System Hardware |
|
| Expansion Slots | 1 x Mini PCIe 1 x PCIe x 4 (default); 1 x PCI (in the accessory box) |
Physical Characteristics |
|
| Dimensions | 419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in) |
| Weight | 5.4 kg (11.90 lb) |
OS Support |
|
| OS Support | Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux |
Power Supply |
|
| Input Voltage | 9-32 VDC |
| Power Consumption | i5-7300U 65W( Burn-in test 8.1 in Windows 10 64bit |
LCD Display |
|
| Display Size | 15.6" |
| Max. Resolution | 1920 x 1080 |
| Viewing Angle (H/V°) | 85 (left), 85 (right), 85 (up), 85 (down) |
| Contrast Ratio | 800:1 |
Display |
|
| Luminance (cd/m2) | 450 |
| Backlight Life (hrs) | 50, 000 hrs (Min.) |
Touchscreen |
|
| Touch Type | Projected capacitive |
| Light Transmission | 88%±2% |
| Controller | USB interface |
Environment |
|
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
| Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) |
| Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
| Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI |
| Safety | CE, UL,CCC, BSMI |
| Front Panel Protection | IP65 Compliant |
