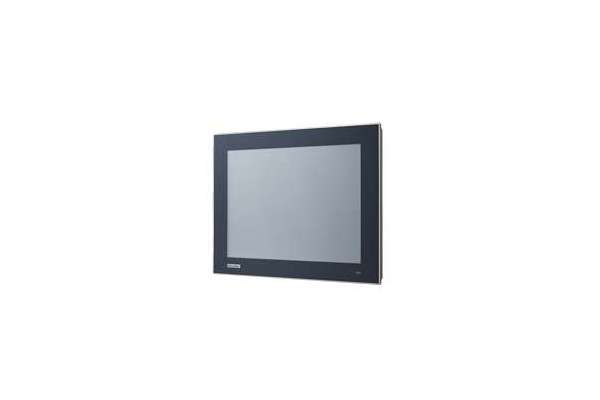

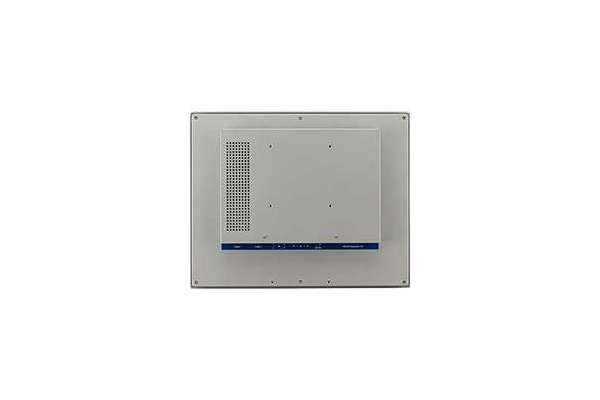

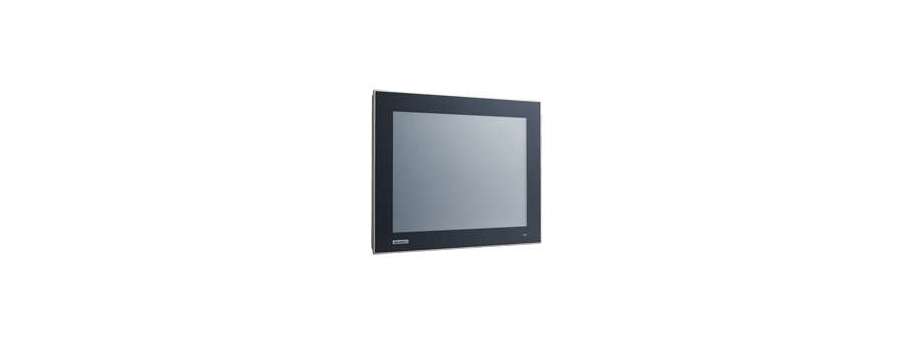

15" XGA TFT LED LCD Thin-Client Terminal with Intel® Atom™ Processor Advantech TPC-1551T(B)

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-1551T-E3BE Панельний комп'ютер Advantech 15" XGA Touch Panel PC, Atom E3845 1.91 GHz, 4G  78 524,8
TPC-1551T-E3BU Промисловий панельний комп'ютер Advantech 15" XGA Touch Panel PC, Atom E3845, 4G, for US  79 975,5

Actual replacement of TPC-1550H

TPC-1551(B), an upgraded version of TPC-1551T(A), is a thin client terminal equipped with a 15" XGA TFT LCD, low-power Intel® Atom™ E3845 1.91GHz quad core processor, and 4GB DDR3A SDRAM to deliver high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-1551T(B) supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and comes with true flat 5-wire resistive touchscreen with IP66 rated front panel, die cast aluminum alloy front bezel and default VESA 100 x100. Moreover, TPC-1551T(B) includes two full-size mini PCIe slots with mSATA and USB/PCIe interface. Via mPCIe slot supporting Advantech's iDoor technology for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication and MRAM.

  • Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
  • Intel® Atom™ E3845 1.91GHz Quad-core processor with 4 GB DDR3L SDRAM
  • Wide operating temperature range -20 ~ 60 °C (-4 ~ 140 °F)
  • True-flat touchscreen with IP66-rated front panel and default VESA 100x100
  • Front-facing LED indicators to show operating status
  • Durable touchscreen with 5-wire resistive touch control
  • Default Advantech’s iDoor technology and SSD/HDD bay
  • Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
  • Default VESA 100x100
  • Supports Advantech’s SNMP Subagent software
  • Supports Advantech’s WISE-PaaS/RMM remote management software

Additional information

General

BIOS AMI UEFI
Certification BSMI, CCC, CE, FCC Class A, UL
Cooling System Fanless design
Dimensions (W x H x D) 383.2 x 307.3 x 55.9 mm (15.09 x 12.10 x 2.2 in)
Enclosure

Front bezel: Die cast aluminum alloy

Back housing: SECC

Mounting VESA Mount, Desktop, Wall or Panel Mount
OS Support Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows 10 Enterprise LTSB, Android, Advantech Linux
Power Consumption 25W typical, 50W max
Power Input 24 VDC +/- 20%
Watchdog Timer 1 ~ 255 sec (system)
Weight (Net) 4.4kg (9.7lbs)

System Hardware

CPU Intel® Atom™ E3845 1.91GHz Quad-core processor
Memory 1 x SODIMM with 4 GB DDR3L SDRAM (supports up to 8 GB)
LAN Intel I210; 10/100/1000BASE-T x 2
Expansion Slots 1 x Full-size mini PCIe (USB+PCIe interface)
Storage 1 x 2.5" SATA SSD, 1 x mSATA

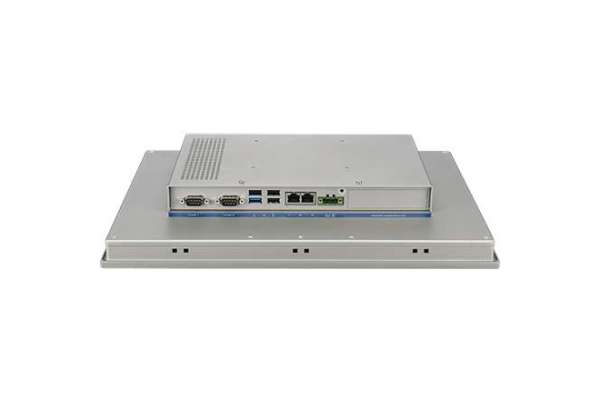

I/O
  • 1 x RS-232
  • 1 x RS-232/422/485
  • 1 x USB 3.0
  • 3 x USB 2.0
  • 1 x iDoor slot

LCD Display

Display Type XGA TFT LED LCD
Display Size 15"
Max. Resolution 1024 x 768
Max. Colors 16.2M
Luminance cd/m2 300
Viewing Angle (H/V°) 176/176
Backlight Life 70,000 hr
Contrast Ratio 2000:1

Touchscreen

Lifespan 36 million touches at a single point
Light Transmission Above 75%
Resolution Linearity
Type 5-wire analog resistive

Environment

Humidity 10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection Front panel: IP66
Operating Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -30 ~ 70 °C (-22 ~ 158 °F)
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
