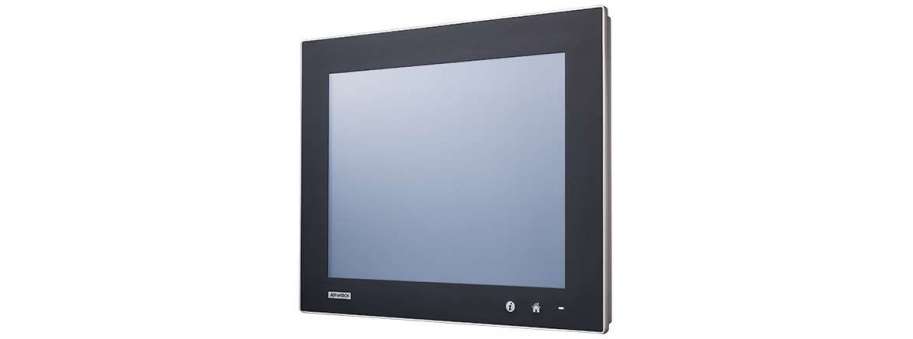

Industrial Monitor with Resistive Touchscreen and VGA / HDMI Port Advantech FPM-1150G
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| FPM-1150G-RVAE | Промисловий дисплей Advantech 15" XGA Ind. Monitor w/ Resistive TS (USB only) | 53 248,6 | |
| FPM-1150G-RHAE | Промисловий РК дісплей Advantech 15" XGA Ind. Monitor w/ Resistive TS (HDMI) | 54 485,0 |
In IoT and Industry 4.0, more and more customers need data to be visualized to help management decision making. FPM-1150G is an industrial-grade 15 TFT LCD monitor with LED backlight flat panel and a changeable front bezel (with updated appearance). FPM-1150G provides an entry level industrial monitor not only for industrial applications but also for a variety of IoT scenarios. The FPM-1150G front bezel can be changed to stainless steel for those applications requiring anti-corrosion or clean environments. In conclusion, FPM-1150G is a highly reliable, tough, and adaptable display solution for Industry 4.0 and IoT.
- 15" XGA TFT LED LCD with 70,000 backlight life time
- Robust design with aluminum front panel
- Supports VGA or HDMI interface with USB touchscreen
- Supports panel, wall, desktop, or VESA arm mounting
- Lockable HDMI port (optional)
Additional information
General |
|
| Button Controls | Front iKey-type OSD buttons |
| Certification | CCC, CE, FCC, UL |
| Dimensions (W x H x D) | 392.3 x 313.6 x 51.2 mm (15.44" x 12.35" x 2.02") |
| Enclosure |
|
| Mounting | Panel, wall, desktop, VESA arm |
| Power Input | External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included) |
| Video Port | VGA / HDMI |
| Weight (Net) | 4kg (8.82 lb) |
LCD Display |
|
| Display Type | XGA TFT LCD with LED backlight |
| Display Size | 15" |
| Max. Resolution | 1024 x 768 |
| Max. Color | 16.2M |
| Viewing Angle (H/V)° | 160°(V),140°(H) |
| Luminance (cd/m2 ) | 300 |
| Backlight Life (hrs) | 70,000 |
| Contrast Ratio | 2000:1 |
Touchscreen |
|
| Interface Combo | USB Interface |
| Lifespan | 36 million times with R8 silicone rubber finger, @ 2 250g presses per second |
| OS Support | WindowsR 7, 8, 10,11, XPe, CE and Linux |
Environment |
|
| Operation Temperature | 0 ~ 50°C (32 ~ 122°F) |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Humidity (Storage) | 10 ~ 95% non-condensing |
| Waterproof | Front Panel IP65 Compliant |
| Vibration | 5 ~ 500 Hz, 1 Grms (operating, random) |
