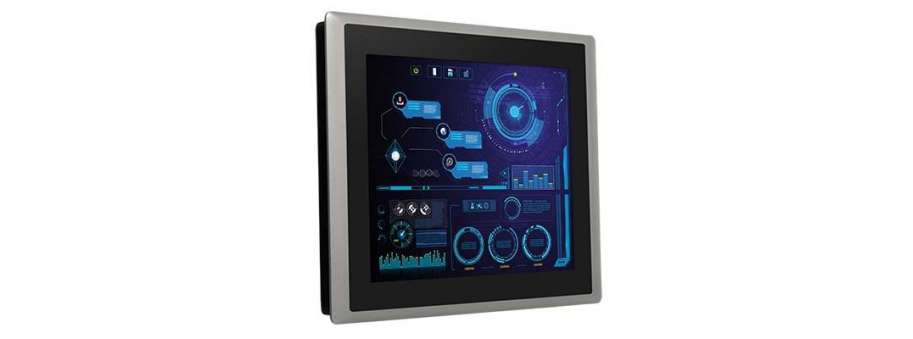

TFT XGA 4:3 Panel PC with Resistive 5-wire / Projected C apacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and1x DisplayPort Cincoze CV-115/P1001
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| CV-115R-R10/P1001-R10 | Модульний панельний комп'ютер Cincoze CV-115R-R10/P1001-R10, 15" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel Atom E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort | 70 033,9 | |
| CV-115R-R10/P1001E-R10 | Модульний панельний комп'ютер Cincoze CV-115R-R10/P1001E-R10, 15" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel Atom E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort and 2x Universal bracket | 71 639,0 |

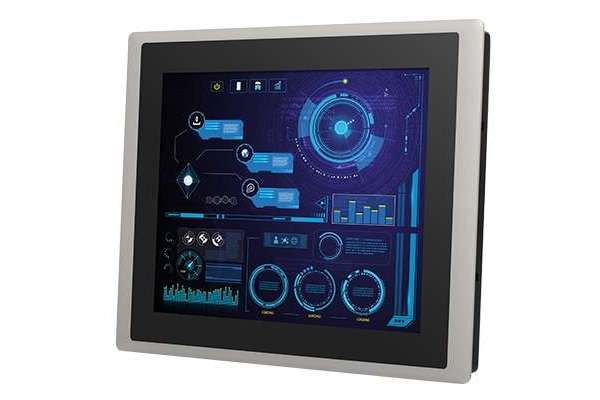

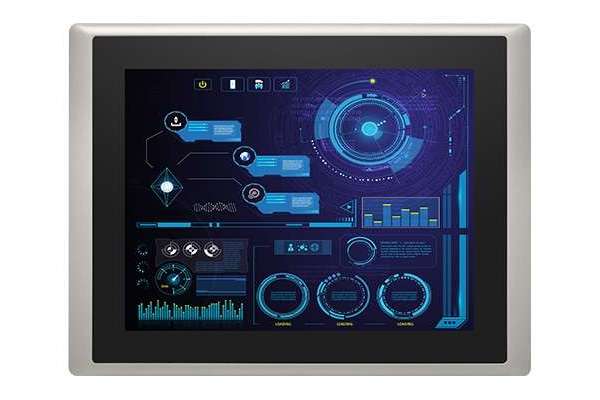

The 15" all-in-one panel PC offers LED backlight LCD with resolution up to 1024x768 (XGA) and 350 nits brightness. CV-115/P1001 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-115/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-115/P1001 Series carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-115/P1001 Series offers extensive I/O including 4x USB, 2x RS232/422/485, 1x VGA, 1x DisplayPort and 4 DI / 4DO. Besides, the panel PC also includes 2x Universal I/O Bracket. (For P1001E only) CV-115/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-115/P1001 Series can be deployed and powered for various industrial applications.
- 15" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
- 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting

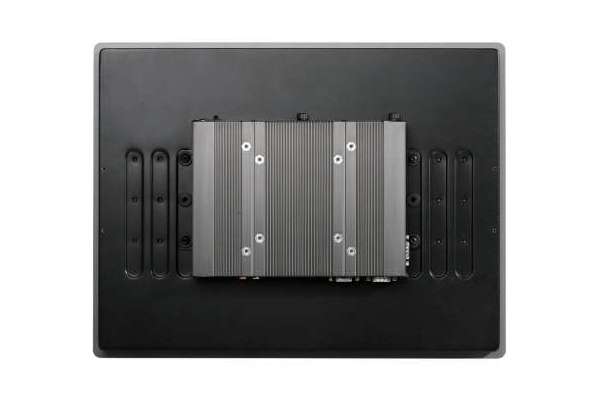

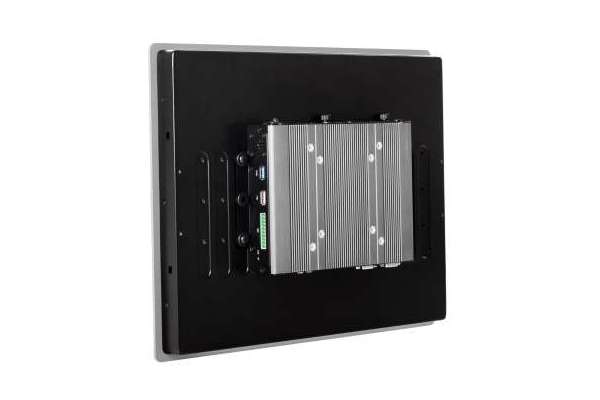

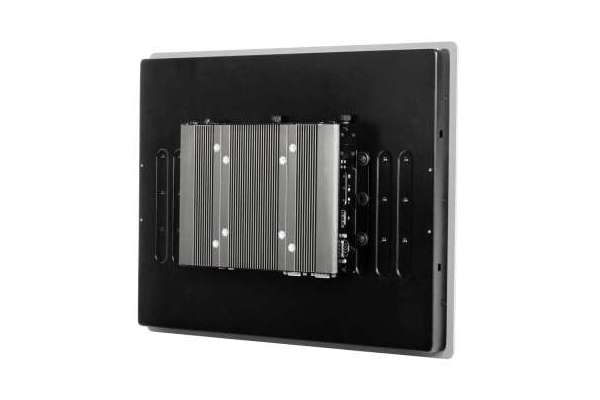

- Convertible Display System (CDS) Supported
- Built-in Two 2W Internal Speakers
- 2x Universal I/O Brackets(For P1001E only)
Additional information
| Model Name | CV-115R |
Display |
|
| LCD Size | 15" (4:3) |
| Max. Resolution | 1024 x 768 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 800 : 1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Viewing Angle (H-V) | 160 / 150 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Type |
Resistive 5-wire Projected Capacitive ( for CV-115C) |
Physical |
|
| Dimension ( W x D x H ) | 408 x 312.4 x 59.2 mm |
| Weight Information | 4.36 kg |
| Mechanical Construction | Die-Casting Flat Surface |
Power |
|
| Power Consumption |
8W (Max.) 7.95W (Max.) ( for CV-115C) |
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | 0°C to 65°C (with Industrial Grade peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 65°C |
| Relative Humidity | 80% RH @ 50°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
| Model Name | P1001 |
System |
|
| Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz |
| Memory |
|
| BIOS | AMI 64Mbit SPI BIOS |
Graphics |
|
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface |
| VGA | 1x VGA Connector (1920x1080@60Hz) |
| DP | 1x DisplayPort Connector (1920x1080@60Hz) |
Audio |
|
| Line-out | 1x Line-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) |
| Serial Port | 2x RS-232/422/485 with Auto Flow Control Support, DB9 |
| DIO | 8x Isolated Digital I/O (4in/4out) |
Storage |
|
| SSD/HDD | 1x 2.5” HDD/SSD Drive |
| SIM Card | 1x Front Accessible SIM Socket |
| CFast | 1x Front Accessible CFast Socket |
Expansion |
|
| Mini PCI Express | 1x Full-size Mini-PCIe Socket for Wi-Fi/GSM/Expansion Module |
| Universal Bracket |
- 2x Universal I/O Bracket (for P1001E) |
Other Function |
|
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Internal Speaker | AMP 2W + 2W |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down |
| Reset Button | 1x Reset Button |
Power |
|
| Power Button | 1x ATX Power On/Off Switch |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC |
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W |
Physical |
|
| Dimension ( W x D x H ) |
204.5 x 149 x 37.5 mm 204.5 x 150 x 60 mm (for P1001E) |
| Weight Information |
1.34kg 1.54kg (for P1001E) |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / VESA / CDS Mounting |
| Physical Design |
|
| Reliability & Protection | |
| Reverse Power Input | Yes |
| Over Voltage Protection |
|
| Over Current Protection | 20A |
Operating System |
|
| Microsoft® Windows® |
|
| Linux | Supports by project |
Environment |
|
| Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -30°C to 85°C |
| Relative humidity | 10%~95% RH (Non-condensing) |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
