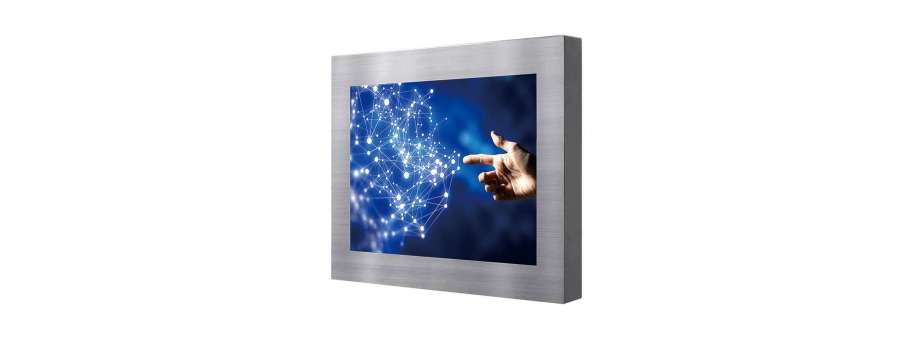

15" IP66 panel PC on Intel® Core™ i7-6600U Processor with -5°C to 55°C operating temperature Vecow STC-6015
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| STC-6015-6600U-A1 | Промисловий панельний комп'ютер Vecow STC-6015,15" Stainless PPC,Intel Core i7-6600U, COM x 3, DC-IN 9-36V, -5°C to 55°C | 170 155,0 | |
| STC-6015-6600U-A2 | Промисловий панельний комп'ютер Vecow STC-6015,15" Stainless PPC,Intel Core i7-6600U, CANbus x 2, COM x 2, DC-IN 9-36V, -5°C to 55°C | 179 328,0 |
Vecow STC-6015 is powered by Intel® Core™ i7-6600U Processor and features leading performance and innovative power management functions. It supports 10-point projected capacitive multi-touch screen, fanless design, -5°C to 55°C operating temperature, IP66 certified panel protection, 9V to 36V wide range DC-in power input. Vecow STC-6015 Stainless Multi-Touch Computer is outfitted with 2 GigE LAN, 4 10G USB, 2 COM for flexible connectivity.

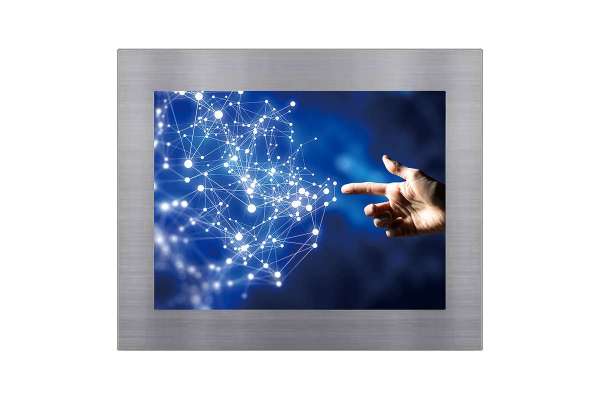

- 15" 1024 x 768 XGA TFT LED LCD
- Grade 304 stainless steel chassis, IP66 compliant
- Intel® Core™ i7-6600U Processor
- 10-point Projected Capacitive Multi-touch Screen
- Supports VESA 100
- Fanless design supports -5°C to 55°C operating temperature
- DC 9V to 36V
Additional information
Panel |
|
| Panel type | XGA TFT LED LCD |
| Size | 15" |
| Max. Resolution | 1024 x 768 |
| Display Color | 262k |
| Brightness (cd/m2) | 250 |
| Viewing Angles (H/V) | 160/140 |
| Contrast Ratio | 700:1 |
Touch Screen |
|
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
System |
|
| Processor | Intel® Core™ i7-6600U Processor |
| Chipset | Intel® SkyLake PCH-LP |
| Memory | 1 DDR4 2122MHz SO-DIMM, up to 32GB |
| Graphics Processor | Intel® UHD Graphics 520 |
I/O Interface |
|
| Serial |
|
| USB | 1 2-port USB 2.0, A-coded M12 Connector |
| CAN Bus | 1 2-port CAN bus I/O, A-coded M12 Connector (A2) |
Expansion |
|
| Mini PCIe |
2 Mini PCIe Socket：
|
Storage |
|
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA II (Full Size Mini PCIe, 6Gbps) |
| Storage Device | 1 2.5" SDD/HDD Bracket (Internal) |
Ethernet |
|

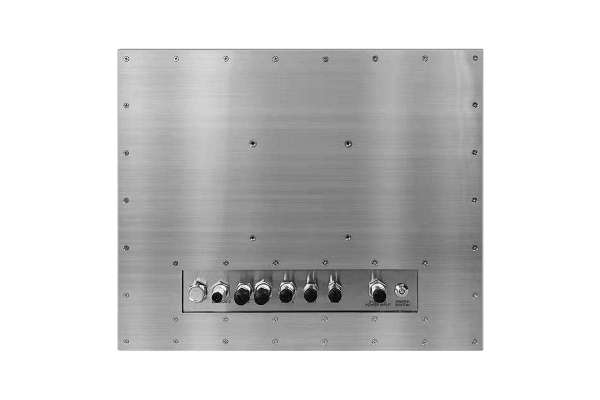

| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, X-coded M12
Connector |
| LAN 2 | Intel® I210 GigE LAN, X-coded M12 Connector |
Power |
|
| Power Input | 9V to 36V DC-in |
| Power Interface | M12 Type Power Input, A-Coded |
Others |
|
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| Software Support | |
| OS | Windows 10, Windows 7, Linux |
Mechanical |
|
| Dimensions | 386.0mm x 320.0mm x 72.3mm (15.20" x 12.60" x 2.85") |
| Weight | TBD |
| Mounting | VESA Mount (100 x 100) |
Environment |
|
| Operating Temperature | -5°C to 55°C (-23°F to 131°F) |
| Storage Temperature | -25°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
|
| Shock |
|
| EMC | CE, FCC |
