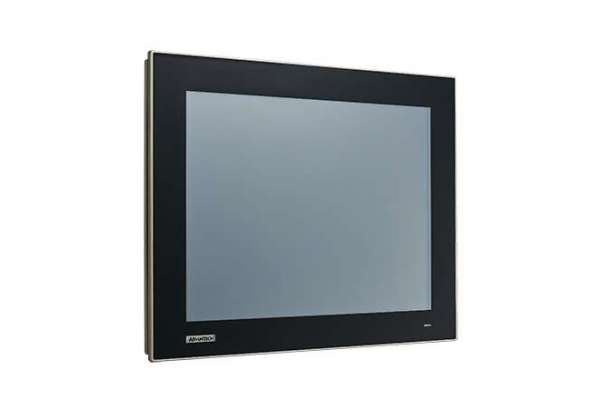

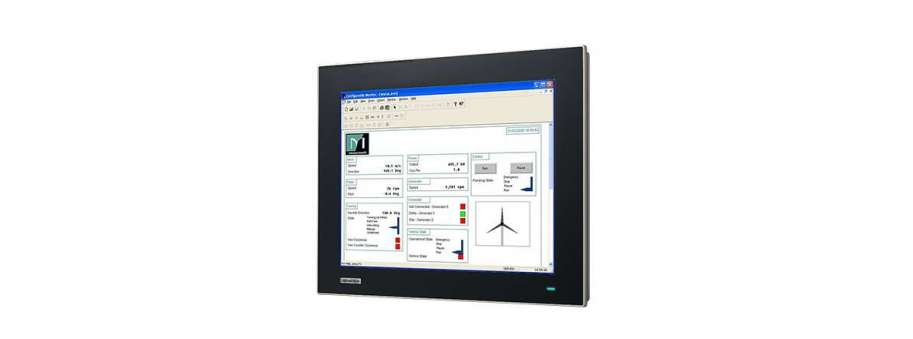

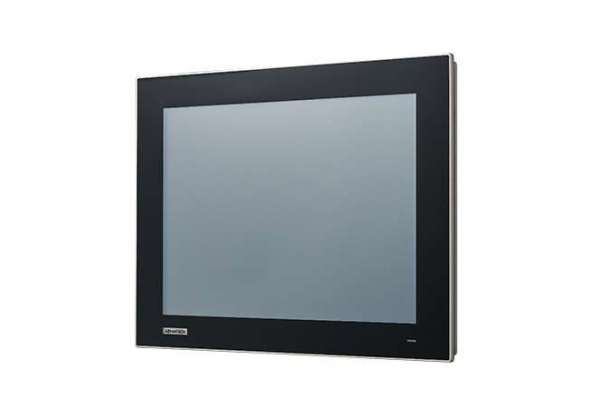

15” XGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature Range Advantech FPM-7151T
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| FPM-7151T-R3AE | Промисловий дисплей Advantech FPM-7151T, 15" XGA (1024x768) Ind. Monitor, 400 nit, Front IP65, with Resistive touch, VGA, DP, -20 ~ 60 °C | 66 266,8 |
FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to ensure easy installation and support for diverse environments.
- 15" XGA TFT LED LCD with 50K backlight lifetime
- Robust system with IP66-rated aluminum front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Anti-glare touchscreen with tempered glass
- Supports various mount options: panel, wall, desktop, and VESA arm
- Combo RS-232+USB interface for touchscreen functionality

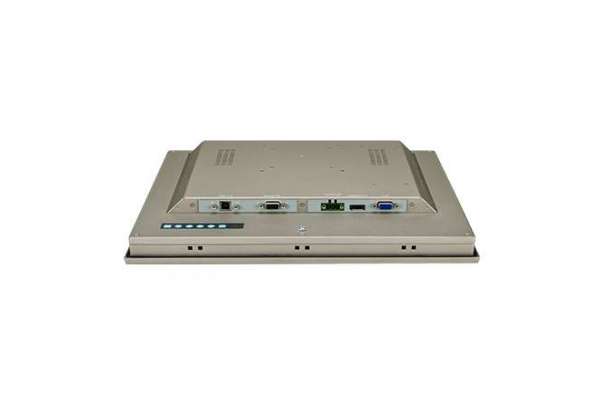

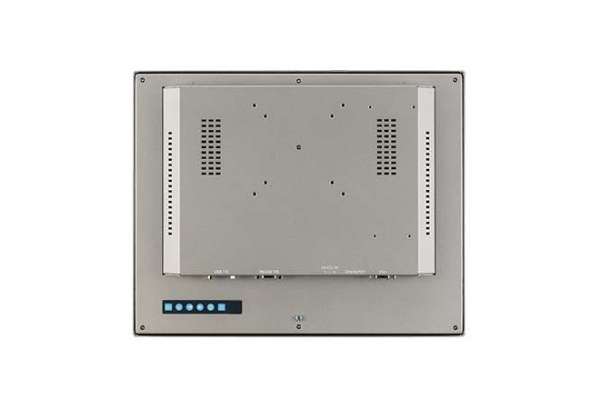

- OSD control buttons on rear panel
- Lockable I/O connectors
Additional information
General |
|
| OSD Controls | OSD control buttons on rear panel |
| Certification | BSMI, CCC, CE, FCC Class A, UL |
| Dimensions (W x H x D) | 383.2 x 307.3 x 48.2 mm (15.09 x 12.10 x 1.90 in) |
| Enclosure |
|
| Mount Options | Stand, Wall, Panel and VESA 75 x 75 & 100 x 100mm |
| Power Input | Phoenix Jack: 24 VDC input |
| Power Consumption | 15 W + 20% |
| Video Port | VGA & DP |
| Weight (Net) | 4.2 kg (9.26 lb) |
LCD Display |
|
| Display Type | XGA TFT LED LCD |
| Display Size | 15" |
| Max. Resolution | 1024 x 768 |
| Max. Color | 16.7M |
| Viewing Angle (H/V °) | 160/140 |
| Luminance (cd/m2 ) | 400 |
| Backlight Life | 50,000 hr |
| Contrast Ratio | 700 :1 |
Touchscreen |
|
| Type | 5-wire analog resistive |
| Interface | RS-232 and USB |
| Light Transmission | Above 75% |
| OS Support | Windows XP, Vista,7, 8,10,XPe and Linux |
Environment |
|
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -30 ~ 70 °C (-22 ~ 158 °F) |
| Humidity (Storage) | 10 ~ 90% non-condensing |
| IP Rating | Front panel is IP66 compliant |
| Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) |
