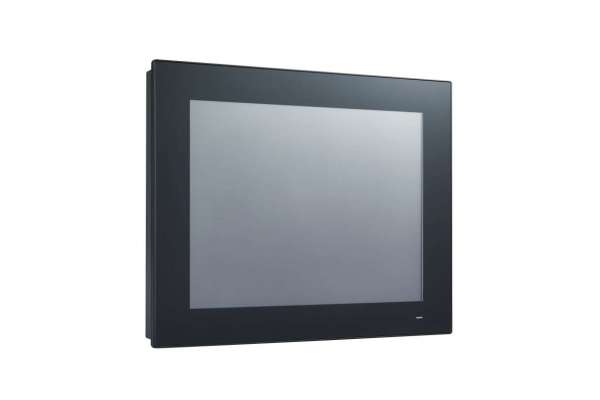

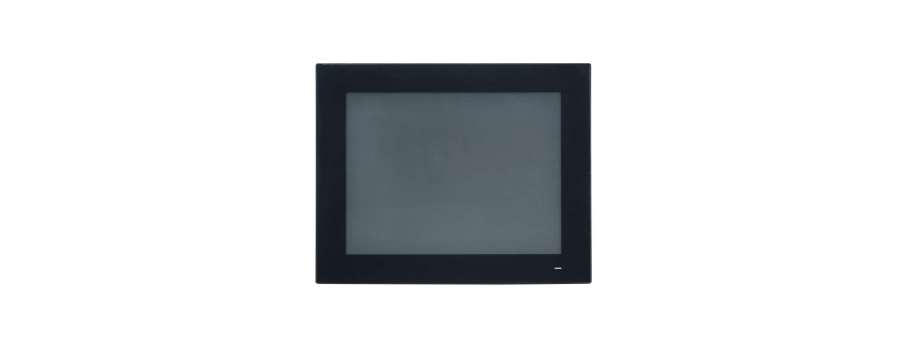

15" Fanless Panel PC with Intel® 11th Gen Core™ I7/i5/i3 Processor Advantech PPC-415 TGL

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-415-PB70A Панельний комп'ютер Advantech, 15" Fanless PPC, PCT, Intel Core i7-1185G7E  140 291,0
PPC-415-PB50A Панельний комп'ютер Avantech PPC-415, 15" Fanless PPC, PCT,Intel Core I5-1145G7E  121 698,0
PPC-415-PB30A Панельний комп'ютер Advantech, 15" Fanless PPC, PCT, Intel Core i3-1115G4E  106 204,0
PPC-415-PB50AU Панельний комп'ютер Avantech PPC-415, 15" Fanless PPC, PCT,Intel Core I5-1145G7E  129 446,0

Designed for high-performance computing 11th gen applications, PPC-415 provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications.

  • 15" XGA TFT LCD flat panel with projected capacitive (default) or resistive (by request) touchscreen
  • Intel® Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E processor with fanless system design
  • Dual channel memory slots, max 64G
  • Supports either 1 x PCIe x4 or 1 x PCI
  • 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID
  • 1 x isolated RS-422/485 with auto flow
  • Wide power input range (9 ~ 32 VDC)
  • Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
  • 3 x Independent displays
  • Support TPM2.0 hardware security
  • Supports VESA 75 mounting interface

Additional information

Model

PPC-415-PB70A

PPC-415-PB50A(U)

PPC-415-PB30A

Processor
CPU i7-1185G7E i5-1145G7E i3-1115G4E
Cores 4 4 2
Base Frequency 1.8GHz 1.5GHz 2.2GHz
Cache 12MB 8MB 6MB
TDP 15W 15W 15W
Memory 2 x SODIMM, DDR4 3200, max. 32GB x 2 2 x SODIMM, DDR4 3200, max. 32GB x 2 2 x SODIMM, DDR4 3200, max. 32GB x 2
Storage
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage(SATA or NVME PCIe)
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage(SATA or NVME PCIe)
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage(SATA or NVME PCIe)
Network (LAN) 2 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2.5G

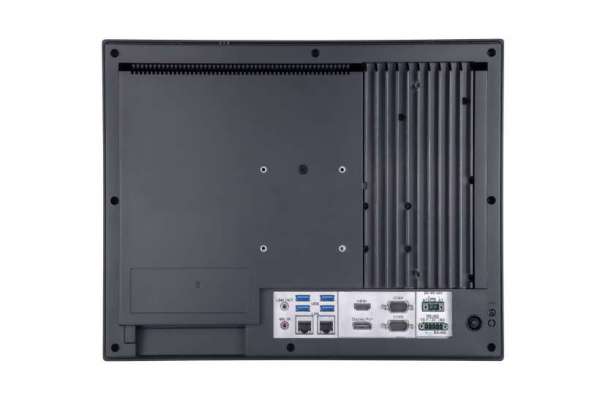

I/O
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 4 x USB 3.2, 1 x USB2.0 (optional)
  • 1 x Line-Out,
  • 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.2)
  • 1 x 8bit GPIO (Optional)
  • 1 x TPM2.0
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 4 x USB 3.2, 1 x USB2.0 (optional)
  • 1 x Line-Out,
  • 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.2)
  • 1 x 8bit GPIO (Optional)
  • 1 x TPM2.0
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 4 x USB 3.2, 1 x USB2.0 (optional)
  • 1 x Line-Out,
  • 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.2)
  • 1 x 8bit GPIO (Optional)
  • 1 x TPM2.0
Expansion
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x M.2 3042/3052 B key slot for 4G/5G module (PCIe or USB2.0)
  • 1 x PCIe x 4 (Default); 1 x PCI (in the accessory box)
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x M.2 3042/3052 B key slot for 4G/5G module (PCIe or USB2.0)
  • 1 x PCIe x 4 (Default); 1 x PCI (in the accessory box)
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x M.2 3042/3052 B key slot for 4G/5G module (PCIe or USB2.0)
  • 1 x PCIe x 4 (Default); 1 x PCI (in the accessory box)
Watchdog Timer 255 timer levels, setup via software 255 timer levels, setup via software 255 timer levels, setup via software
Speaker 2 x 1W 2 x 1W 2 x 1W

Physical Characteristics
Dimensions 392.3 x 313.6 x 55.2 mm (15.44 x 12.35 x 2.17 in) 392.3 x 313.6 x 55.2 mm (15.44 x 12.35 x 2.17 in) 392.3 x 313.6 x 55.2 mm (15.44 x 12.35 x 2.17 in)
Enclosure Front bezel: Die cast aluminum alloy Back housing: PC+ABS Front bezel: Die cast aluminum alloy Back housing: PC+ABS Front bezel: Die cast aluminum alloy Back housing: PC+ABS
Mounting Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional) Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional) Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional)
Weight 5.4 kg (11.90 lb) 5.4 kg (11.90 lb) 5.4 kg (11.90 lb)

OS Support
OS Microsoft® Windows 10(64-bit), Win10 IOT LTSC, Linux Microsoft® Windows 10(64-bit), Win10 IOT LTSC, Linux Microsoft® Windows 10(64-bit), Win10 IOT LTSC, Linux

Power Consumption
Input Voltage 9 ~ 32 VDC 9 ~ 32 VDC 9 ~ 32 VDC
Power Consumption i5-1145G7E: 60W (Burn-in test 8.1 in Windows 10, 64 bit) i5-1145G7E: 60W (Burn-in test 8.1 in Windows 10, 64 bit) i5-1145G7E: 60W (Burn-in test 8.1 in Windows 10, 64 bit)

LCD Panel
Display Type 15" TFT LED panel 15" TFT LED panel 15" TFT LED panel
Max. Resolution 1024 x 768 1024 x 768 1024 x 768
Viewing Angle 88° (left), 88° (right), 88° (up), 88° (down) 88° (left), 88° (right), 88° (up), 88° (down) 88° (left), 88° (right), 88° (up), 88° (down)
Luminance (cd/m2) 500 500 500
Contrast Ratio 2,500 2,500 2,500
Backlight Lifetime 70,000 hr 70,000 hr 70,000 hr

Touchscreen
Touch Type Projected capacitive 10-point multi-touch Projected capacitive 10-point multi-touch Projected capacitive 10-point multi-touch
Light Transmission 85% ± 3% 85% ± 3% 85% ± 3%
Controller USB interface USB interface USB interface

Environment
Operating Temperature -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F) -10 ~ 50 °C (14 ~ 122 °F)
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing) 10 ~ 95% @ 40 °C (non-condensing) 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant Operating 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant Operating 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration Operating random vibration test 5 ~ 500Hz, 1 Grms with HDD; 2 Grms with SSD, IEC 60068-2-64 compliant Operating random vibration test 5 ~ 500Hz, 1 Grms with HDD; 2 Grms with SSD, IEC 60068-2-64 compliant Operating random vibration test 5 ~ 500Hz, 1 Grms with HDD; 2 Grms with SSD, IEC 60068-2-64 compliant
EMC CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA
Safety CB, UL, CCC, UKCA CB, UL, CCC, UKCA CB, UL, CCC, UKCA
Front Panel Protection IP66-rated IP66-rated IP66-rated
