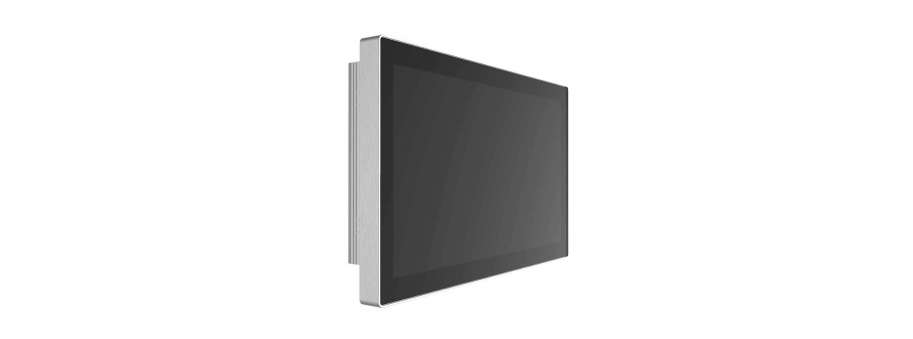

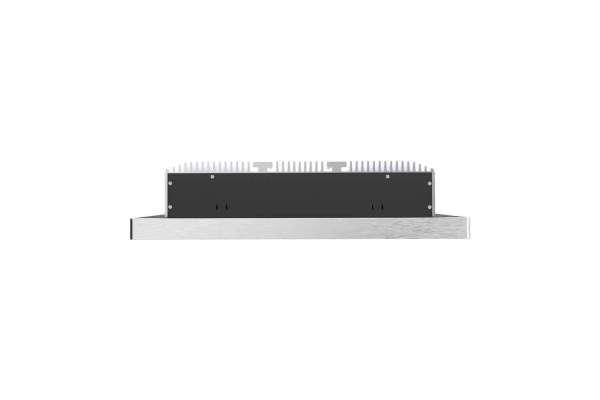

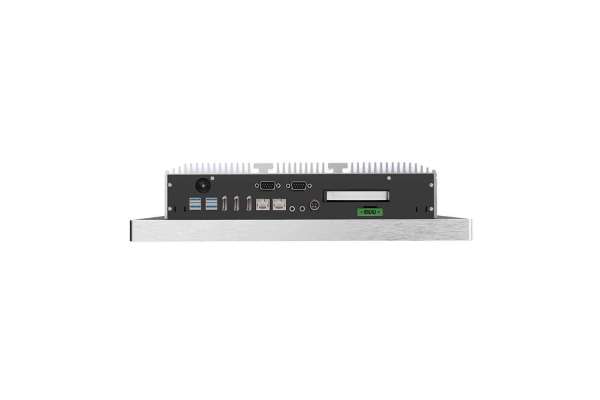

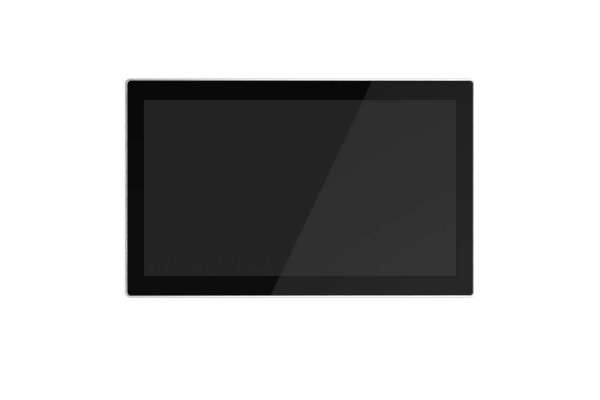

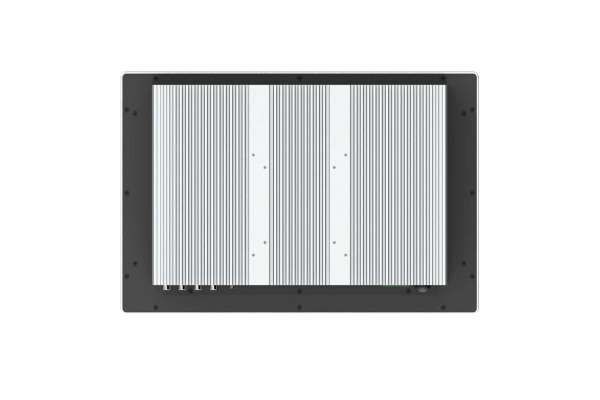

15" Fanless P-cap Panel PC with IP65 by 9th Gen 35W CPU ELGENS LPC-P150S
Price and avalability
Partnumber | Description | Price VAT incl | Avalability |
---|---|---|---|
LPC-P150S-2C5M | Панельний комп'ютер Eldgens 15" Fanless P-cap Panel PC with IP65 Front side, 4 x USB 3.1 , 2 x LAN, 1 x COM, 3 x DP and DC 19~28V PowerInput with DC 24V Power Adapter by i5-9500TE | 121 186,0 |
15" Fanless P-cap Panel PC with IP65 Front side, 4 x USB 3.1 , 2 x LAN, 1 x COM, 3 x DP and DC 19~28V Power Input with DC 24V Power Adapter by 9th Gen 35W CPU
- 15" LCD with 1024*768 resolution
- IP65 Front Bezel
- 350 nits LED Backlight
- 35W Fanless Design
- Wide Operating Temp -20~70 °C
- VESA 75 x 75 / 100 x 100
- DC 19~28V Power Input
- PCIe x16 slot for Low Profile Card Expansion
Additional information
System |
|
Processor | Intel® Core i3-9300TE/ i5-9500TE/ i7-9700TE, 35W |
System Memory | 2 x DDR4 SO-DIMM up to 64GB |
External I/O Port |
|
Storage |
|
Expansion |
|
Operating System | Win 10 IoT Enterprise |
LCD |
|
Display Type | 15″ TFT LCD |
Max. Resolution | 1024*768 |
Max. Color | 16.2M |
Luminance (cd/m2) | 350nits |
View Angle | 80 / 80 / 80 / 80 |
Backlight Lifetime | 30,000hrs |
Touch Screen |
|
Type | USB P-Cap Touch |
Power Requirement |
|
Power Input | DC 19~28V Power Input with DC 24V Power Adapter |
Mechanical |
|
Construction | Aluminum Front Bezel and Case |
IP Rating | Front Panel IP65 / IP66 Compliant |
Mounting | VESA / Panel Mount |
Dimension | TBC |
Environment |
|
Operating Temp. | -20~70°C IEC-60068-2-1/2/14 |
Storage Temp. | -25~75 °C |
Humidity | 10~90% @40 °C, non-condensing |
EMC |
|
Vibration | 1.5 Grms @10~500Hz, IEC-60068-2-64 |
