All-Round Capacity Touch Extended T range HDMI Input 12V DC Input 24V DC Input Wide range Intel Core i3 Intel Core i5 Intel Core i7 IP66 LAN RS232 RS485 Screen Size 15" Stainless Steel

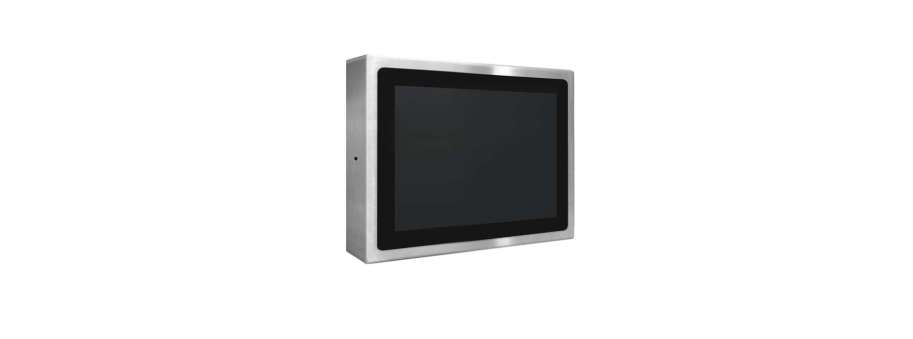

15" allround protected stainless steel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3 ELGENS LPC-P150S-LPx

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P150S-LPK5 Промисловий панельний комп'ютер Elgens LPC-P150S-LP5 15" Stainless Steel P-cap Panel PC with Intel Core™ Kabylake-U i5-7300U, 6 sides IP66 Waterproof Feature and Wide Range Power Input, with -20~60 degrees operating temp  143 730,0

15" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, 6 sides IP66 Waterproof Feature and Wide Range Power Input

  • York / Desk / Vesa Mounting
  • 15" P-cap Flat Bezel
  • DC 12~24V Wide Range Power Input
  • 1024*768 Resolution
  • Bottom Side M12 Plastic Connector
  • M12 Plastic Waterproof Connectors
  • Stainless Steel 316 Food Grade

Additional information

System

Processor 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3
System Memory DDR4 2133MHz SO-DIMM, up to 16 GB
External I/O Port
  • 1 x GIGA LAN External Waterproof cables by 1.5 meters (the end side is male RJ45)
  • 1 x USB 2.0 External Waterproof cables by 1.5 meters (the end side is female USB 2.0)
  • 1 x Power External Waterproof cables by 1.5 meters (the end side is 2 wire : ground & + )
  • 1 x COM (1 x RS-232/422/485) External Waterproof cables by 1.5 meters
  • 1 x HDMI (w/o Audio)
Storage
  • 2 x SATA3 (6.0Gb/s)
  • 1 x mSATA (full size mini-PCIe)
Operating System Windows 7 (32/64bit) (Sky Lake-ULT Only)Windows 8.1 (64bit) Windows 10 (64bit)
Expansion 2 x MiniPCIe Slot

LCD

Display Type 15" TFT LCD
Max. Resolution 1024*768
Max. Color 16.2M
Luminance 420nits
View Angle 80/80/80/80
Backlight Lifetime 30,000 hours

Power Requirement

Power Input M12 Power Input DC 12-24V Wide Range Power Input

Touch Screen

Type 15" P-cap USB interface

Environment

Operating Temp -20~60 °C,IEC-60068-2-1/2/14
Storage Temp -20~60 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64

Mechanical

Construction Stainless Steel case
IP Rating IP66 with 6 sides
Mounting VESA
Dimension TBC
